APPENDIX: PROCEDURE FOR ADJUSTING SLIDING BAY WINDOWS
l
REINSTALLING ANTI-UNHINGING SYSTEMS
Complete the adjustment operation by reinstalling the anti-unhinging
system.
- Remove the retaining pin (figures 1 and 2).
- Gently separate the jaws (item A, figure 1).
- Push the pin (item B, figure 1).
- Reinstall the part of the anti-unhinging system on the bay upright
(figure 3).
- Press on the retaining pin in order to stop the part (figure 4).

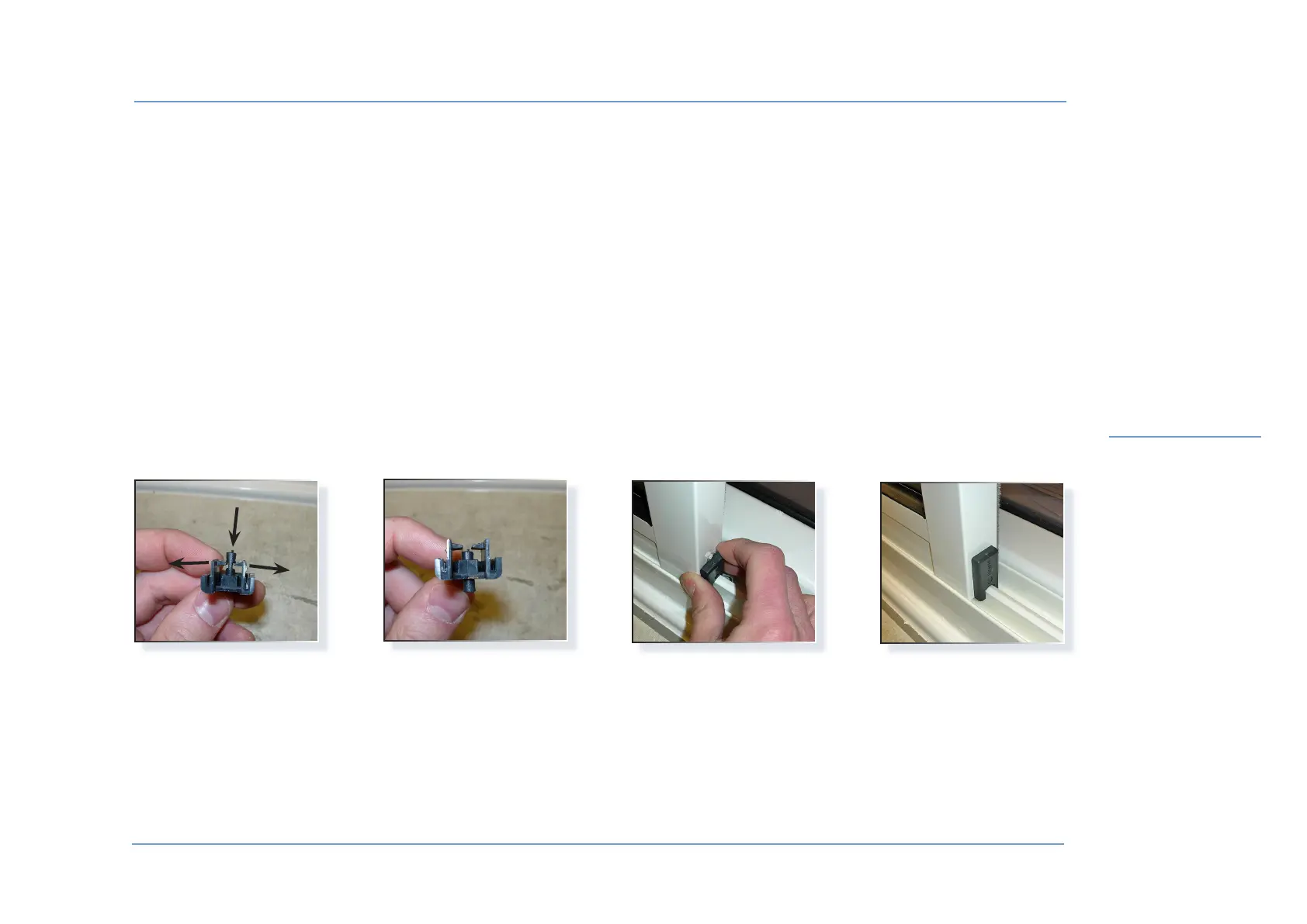

FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4
A
A
B
