Lagoon 39 - Adjusting the Bay Window of the Serving Hatch

28
HULL / DECK
LAGOON 39
APPENDIX: PROCEDURE FOR ADJUSTING SLIDING BAY WINDOWS

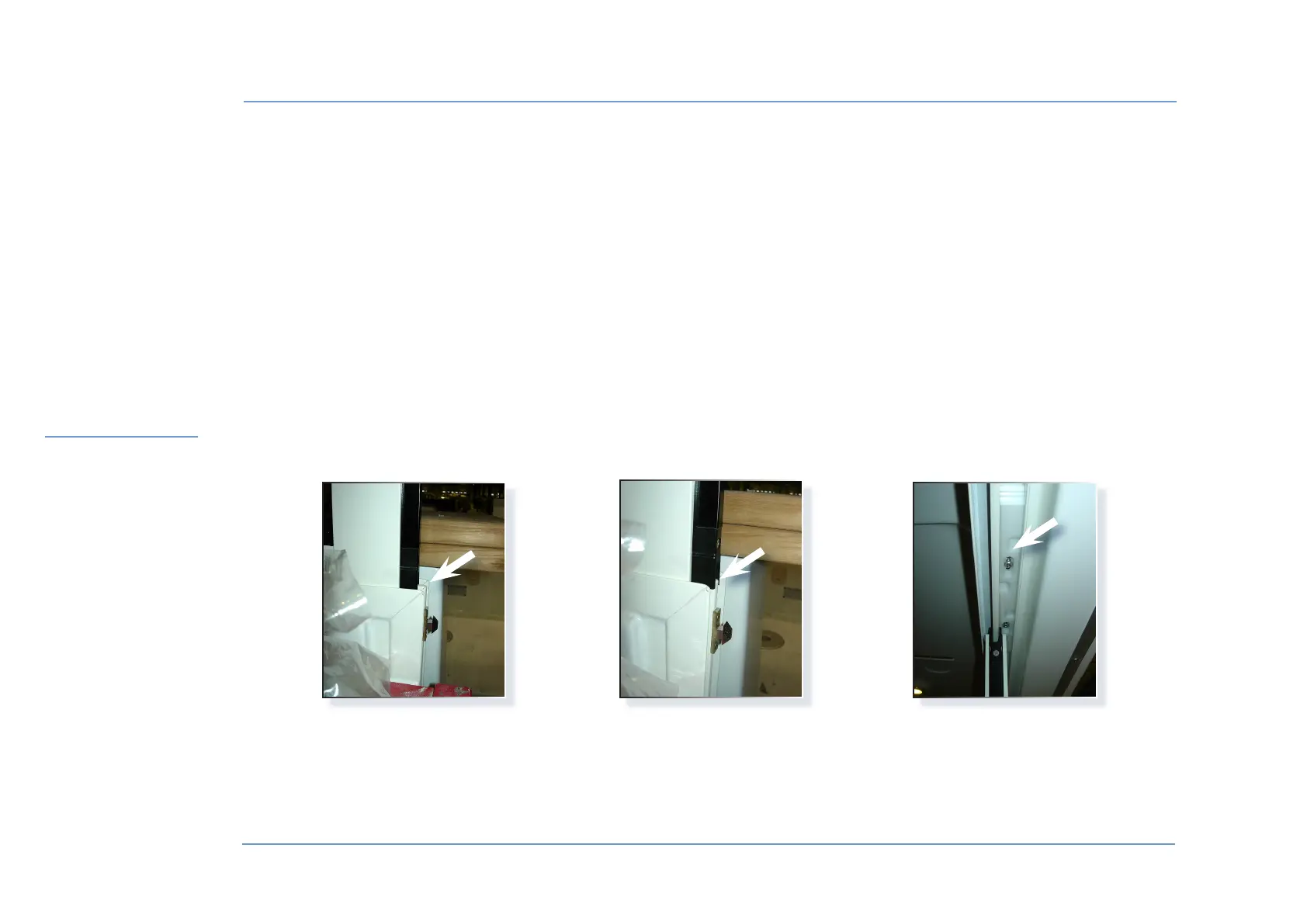

FIGURE 1
l
ADJUSTING THE BAY WINDOW OF THE SERVING HATCH
Once the height or the difference of bay windows is correctly adjusted,
verify the alignment of the serving hatch sliding bay window once
closed with the end of its lower rail (figure 1 not aligned, figure 2
aligned)
If necessary, refine the adjustment by moving the shim located inside
the top rail (figure 3).
Retighten the screw of the shim after adjustment, then verify the
proper locking of the bay window in open or closed position.
FIGURE 2
FIGURE 3
