LAMBORGHINI XILO D - Page 35

35

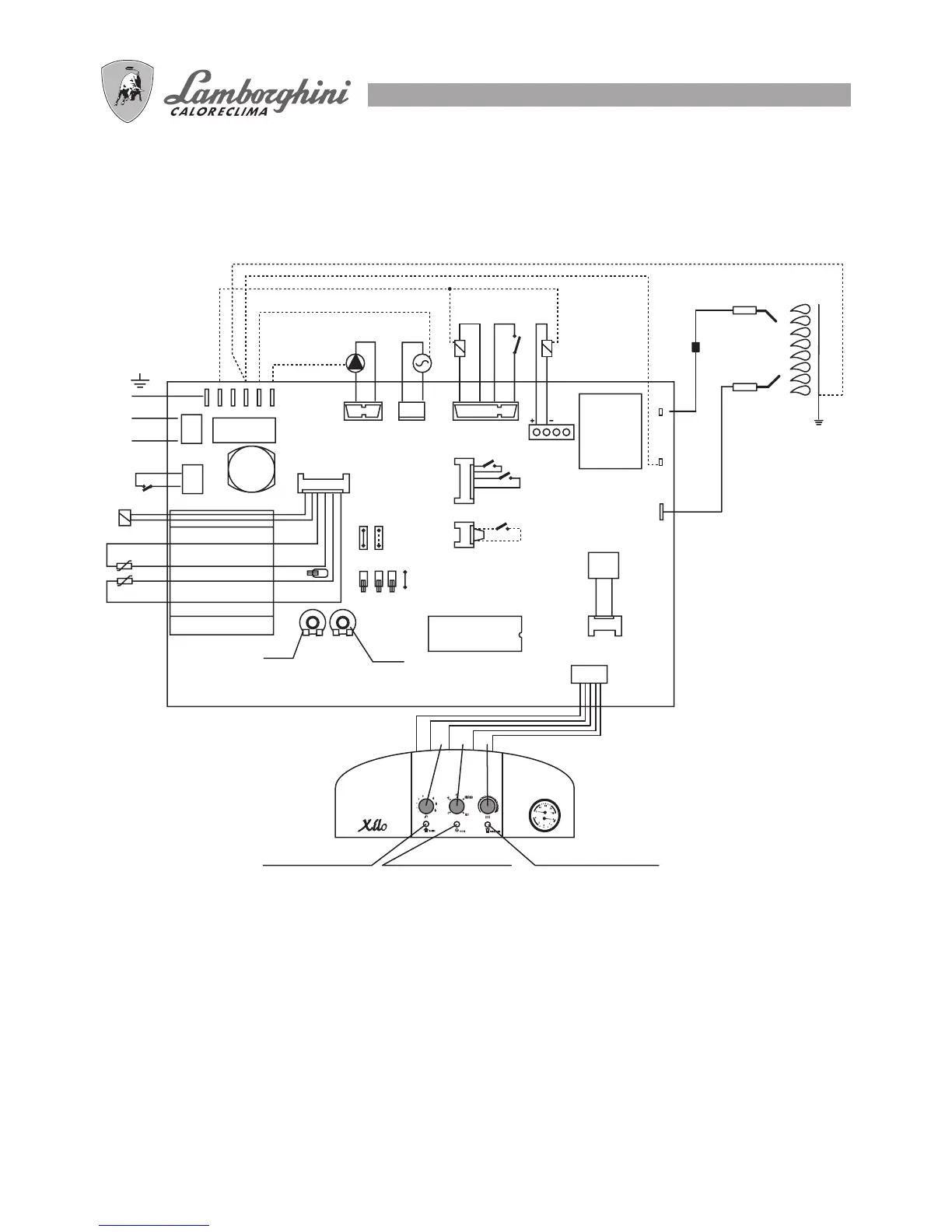

ASSEMBLY DIAGRAM XILO D 20 N MCS W TOP - card code 4.56040.0
L
N
J1
F
J14
L1
CiR
J3 J4
J15
VN
TL
J6
J10
J13
J9
J8
BM
JP4
JP3
RLA
R
max.
SR
SS
PS
JP5 (LOW TEMPERATURE)
JP1
PA
TA
MP
+ S
JP6 JP7
VG
J12
TST
VG1
3
2
1
EA
EC
.t
s
is
e
R
mhok1
Lock-out warning light
ON/OFF warning light
Malfunction warning light
PANEL
CONNECTION
JUMPER TO BE CUT IF LIMIT
THERMOSTAT
IS REQUIRED
MODULATOR
LEGEND
BM Modulating coil
CiR Heating circulator
EA Ignition electrode
EC Control electrode
F Fuse 2(A)
JP1 Methane/LPG selector
JP3 Post-circulation selector
JP4 Ignition limiting selector
JP5 Jumper to be cut for low temperature
JP6 Mono-thermal/bi-thermal switch
L Phase 230 V 50 Hz
MP
Hot water priority micro pressure switch
N Neutral
PA Air pressure switch
PS No-water pressure switch
RLA Slow ignition power adjustment
Rmax. Heating max. power adjustment
SR Heating sensor
SS Hot water sensor
TA Room thermostat (if any)
TL Limit thermostat (if any)
TST Safety thermostat
VG Gas valve SIT 837
VG1 Gas valve Honeywell
VK 4105M
VN Fan
1 Heating potentiometer
2 Selector: Off
Summer
Winter
Reset
Test
3 Hot water potentiometer
Warning: One of the two gas valves only, VG or VG1, is fitted on the boiler.
