3 Overview
3 Overview
3.1 System Overview
The LT2 Lambda Transmitter is an all-purpose O
2
measuring device based on microprocessor
for direct measurement of the O
2
concentration under super-stoichiometric range (λ > 1) used
together with LS2 Lambda Probe.

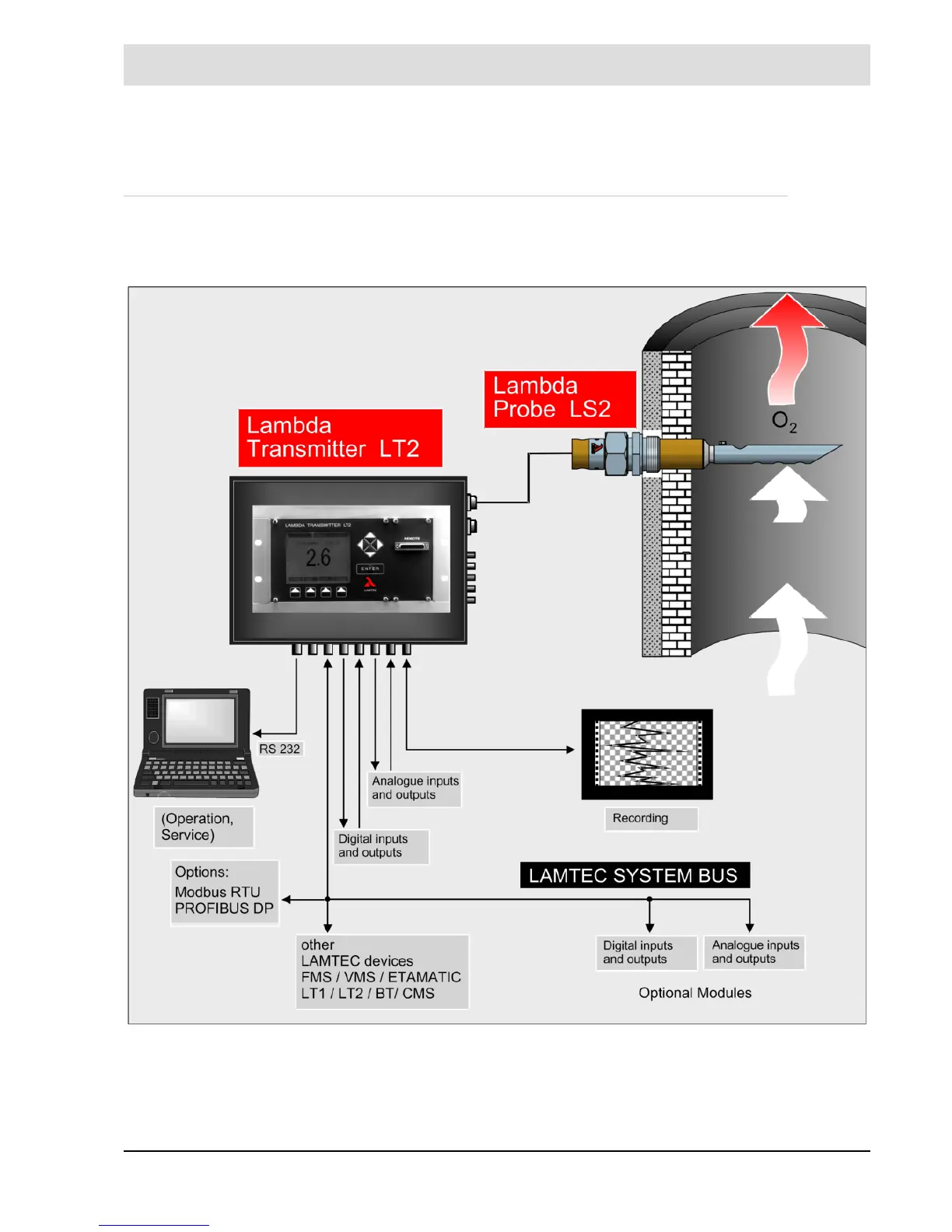

Fig. 3-1 System overview LT2 Lambda Transmitter
