4 Technical Description
4.4.5 Firing Rate Dependent and Fuel Specific Limit Values/Limit Curves
The burner firing-rate value or some other measured quantity is supplied via analogue input 4
or via LAMTEC SYSTEM BUS. Instead of fixed limit values you can enter fuel-specific curves
with 2 up to a maximum of 8 checkpoints.
Possible combinations:
either
• 2 fuels with 4 limit curves / limit values per fuel
• 4 fuels with 2 limit curves / limit values per fuel
For details see supplement to the operating instructions for the optional "Display and operat-
ing unit”
4.4.6 1 ... 4 Analogue Output (0/4 ... 20 mA, 1 ... 10 V)
Max. 2 floating (output 1 and 2), max. potential difference  20 V, configurable in any order
Direct current 0/4 ... 20 mA, load 0 ... 600 
Direct voltage 0 ... 10 V, load ≥ 10 k
Analogue output card 0/4 ... 20 mA, 0 ... 10 V type 657R0050
Analogue output card 0/4 ... 20 mA, 0 ... 10 V, floating, max. potential difference  20 V
type 657R0051

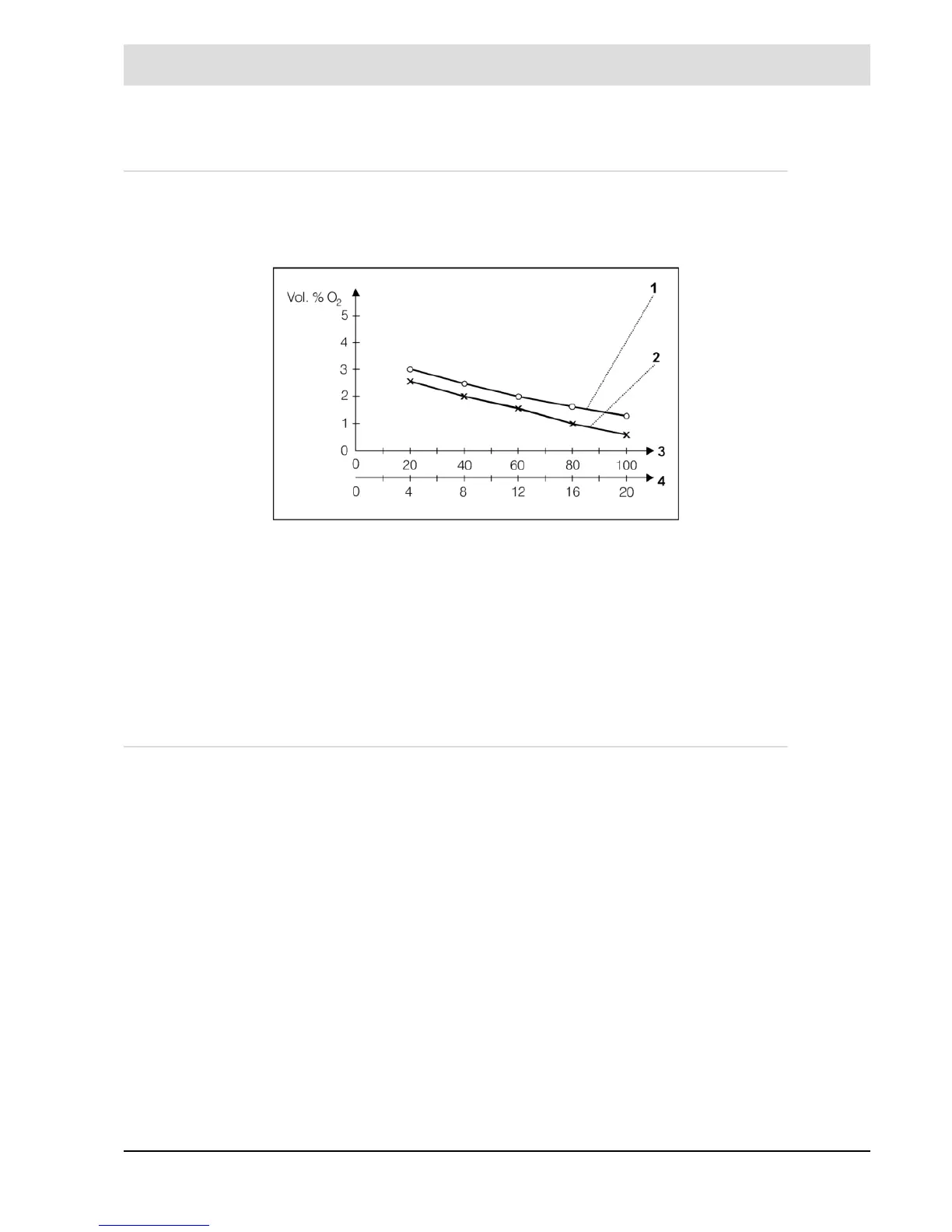

Fig. 4-5 Limit curves (factory settings), parameters adjusted to values
below threshold.
1 limit curve 1
fuel (curve 5)
2 limit curve 2
fuel 1 (curve 7)
3 burner firing rate [%]
4 regular firing rate input
[mA]
