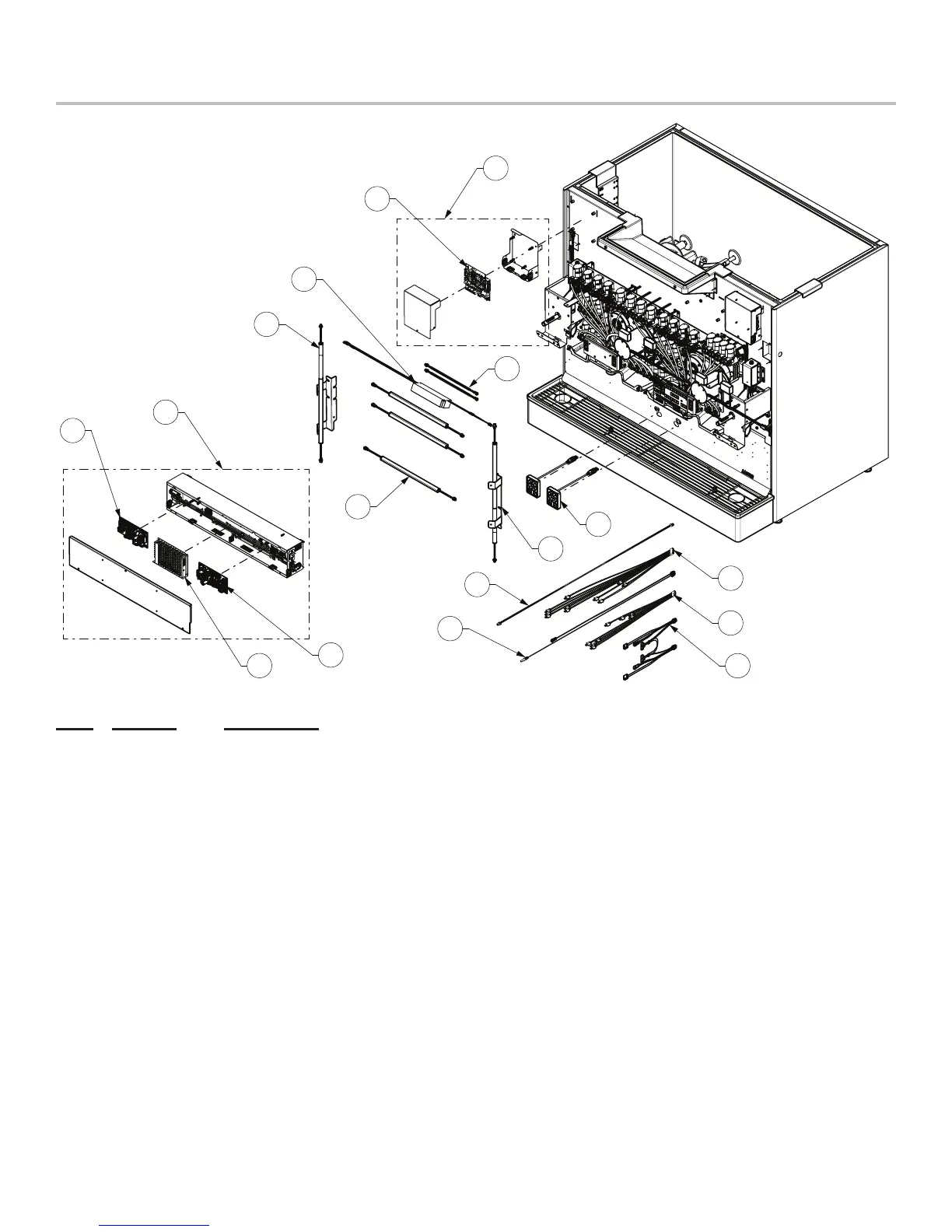

lancer Twin Pour - Electrical Assembly Diagram

30
Electrical Assembly
03
02
x210
x2
09
x2
08
13
15
16
x2
07
06
x2 05
01
x3 04
12
14
02
x2 11
Item Part No. Description
01 82-6047 Main Control Box Assembly, FS44
02 64-5037/01 Ice Control Board, PCB Assembly
03 52-4038 Power Supply, AC to DC, 24V, 6.5A
04 12-0643 LED Light Bar, 18 in, 9.5 W, 24 VDC
05 12-0646 LED Light Bar, 30 in, 9.5 W, 24 VDC
06 12-0652/02 LED Driver Ballast, 60 W
07 52-3793 Jumper Wire Harness, 18 Inch
08 30-12965 Light Side Brackets, 44” Sensation
09 52-4034 ADA Membrane Switch Assy, FS44
10 82-6048 Side Control Box Assembly, FS44
11 52-4029 PCB Controller Assembly, FS44
- 52-4039 FS Touch Memory Card
13 52-4015 Com Cable Harness, FS44
14 52-4018 Valve B Harness, FS44
15 52-4021 Nozzle LCD Harness, FS44
16 52-4017 Valve A Harness, FS44
17 52-4016 Ice Key Switch Harness, FS44
