Lanner NCA-4020 - Specific Connector Descriptions

22

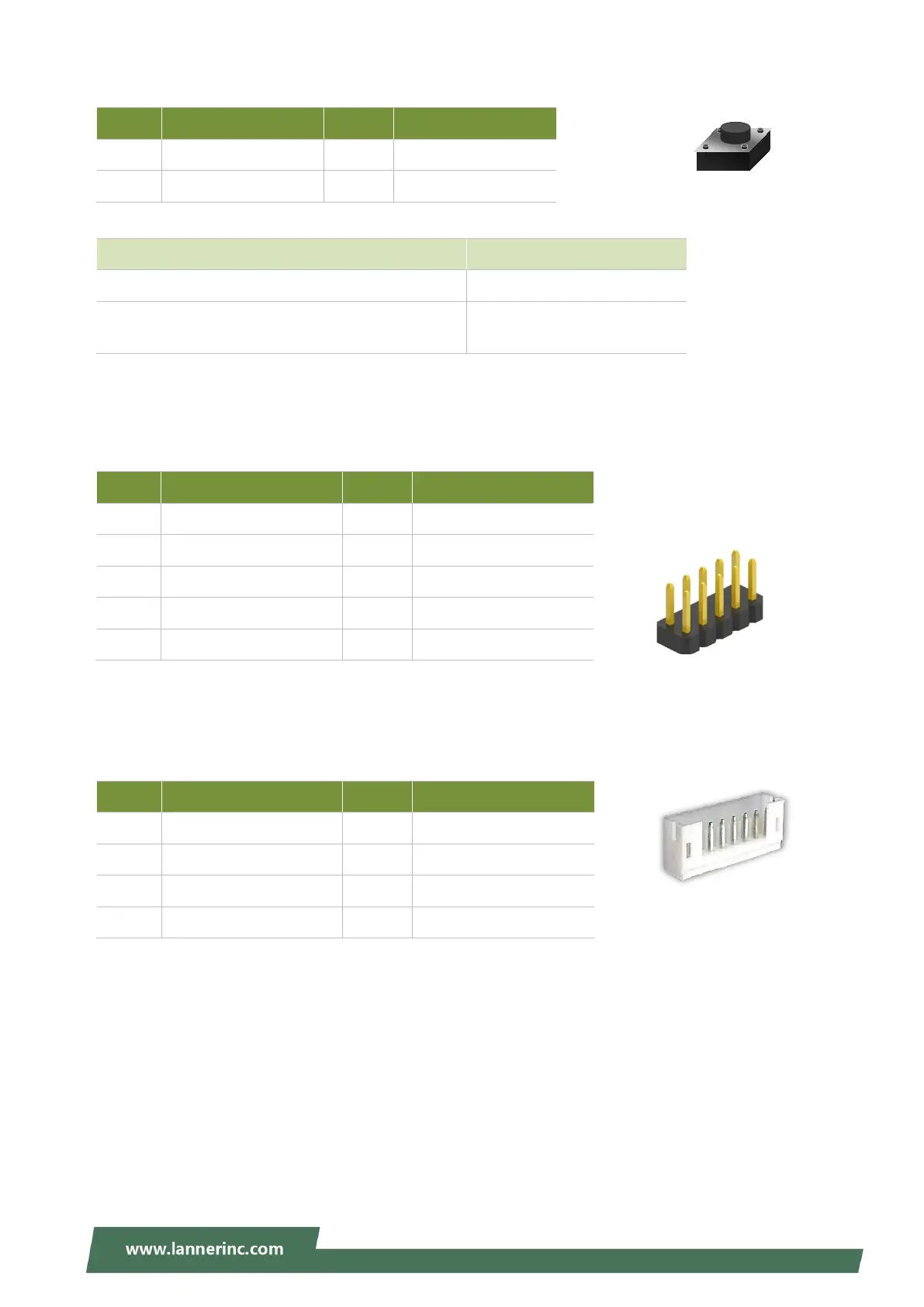

RST1：Reset Button
PIN Description PIN Description
1 GND 2 GND
3 FP_RST# 4 FP_RST#
Function Description
Short press >1 Sec
Software Reset
Press twice. The interval between the two short
presses should not exceed 0.4 Sec
Hardware Reset
J8：Power Board Connector to connect PB-40201
JPMB1：PMBUS Connector to connect PB-40201
PIN Description PIN Description
1 NC 2 NC
3 ATX_PSON# 4 GND
5 NC 6 PMBUS_CLK
7 PMBUS_DAT 8 PMBUS_ALERT#
PIN Description PIN Description
1 +P5V_STBY_PSU 2 +P5V_STBY_PSU
3 +P5V_STBY_PSU 4 +P3V3_AUX
5 PWOK_1 6 Present#1
7 PWOK_2 8 Present#2
9 GND 10 GND
4
3
1
2
1
10
2
1
8
9
