NCA-4020 User Manual
23

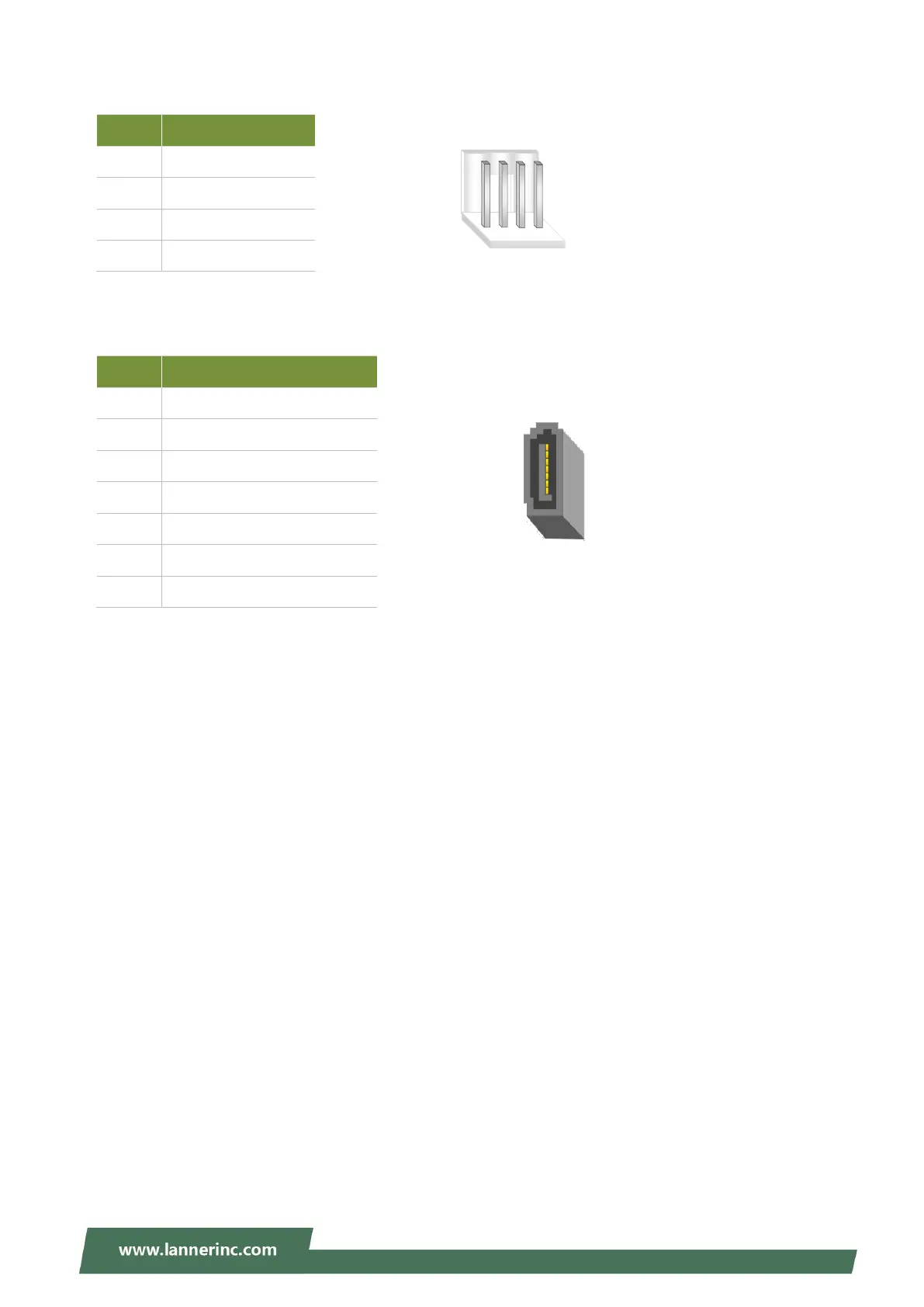

PW10 / PW11：SATA power connector
PIN Description
1 +P12V
2 GND
3 GND
4 +P5V
SATA1 / SATA2 / SATA3 / SATA4：SATA connector
PIN Description
1 GND
2 SATA_CTX_C_DRX_P
3 SATA_CTX_C_DRX_N
4 GND
5 SATA_DTX_CRX_N
6 SATA_DTX_CRX_P
7 GND
1
4
1
2
3
4
5
6
7
