NCA-4020 User Manual
27

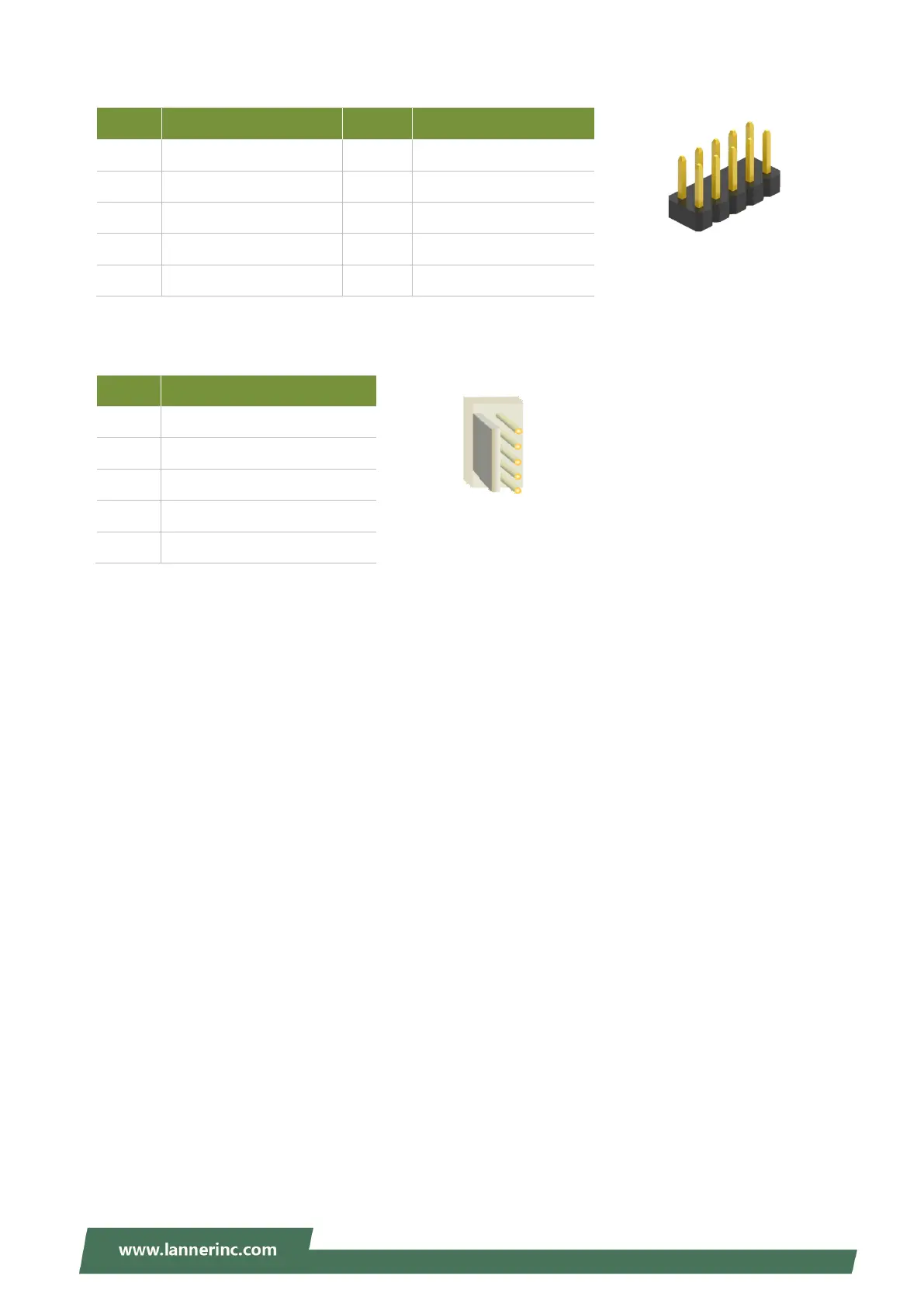

USB1：USB Ports Connector
PIN Description PIN Description
1 +P5V_USB1 2 +P5V_USB1
3 USB20_N3_L 4 USB20_N4_L
5 USB20_P3_L 6 USB20_P4_L
7 GND 8 GND
9 GND 10 GND
FAN1 / FAN2 / FAN3 / FAN4：FAN connector
PIN Description
1 GND
2 +P12V
3 BMC_FAN_TECH_IN2
4 BMC_FAN_TECH_IN1
5 BMC_PWMOUT1
1
2
9
10
1
2
3
4
5
