Lantronix UDS1100 User Manual

3: Getting Started

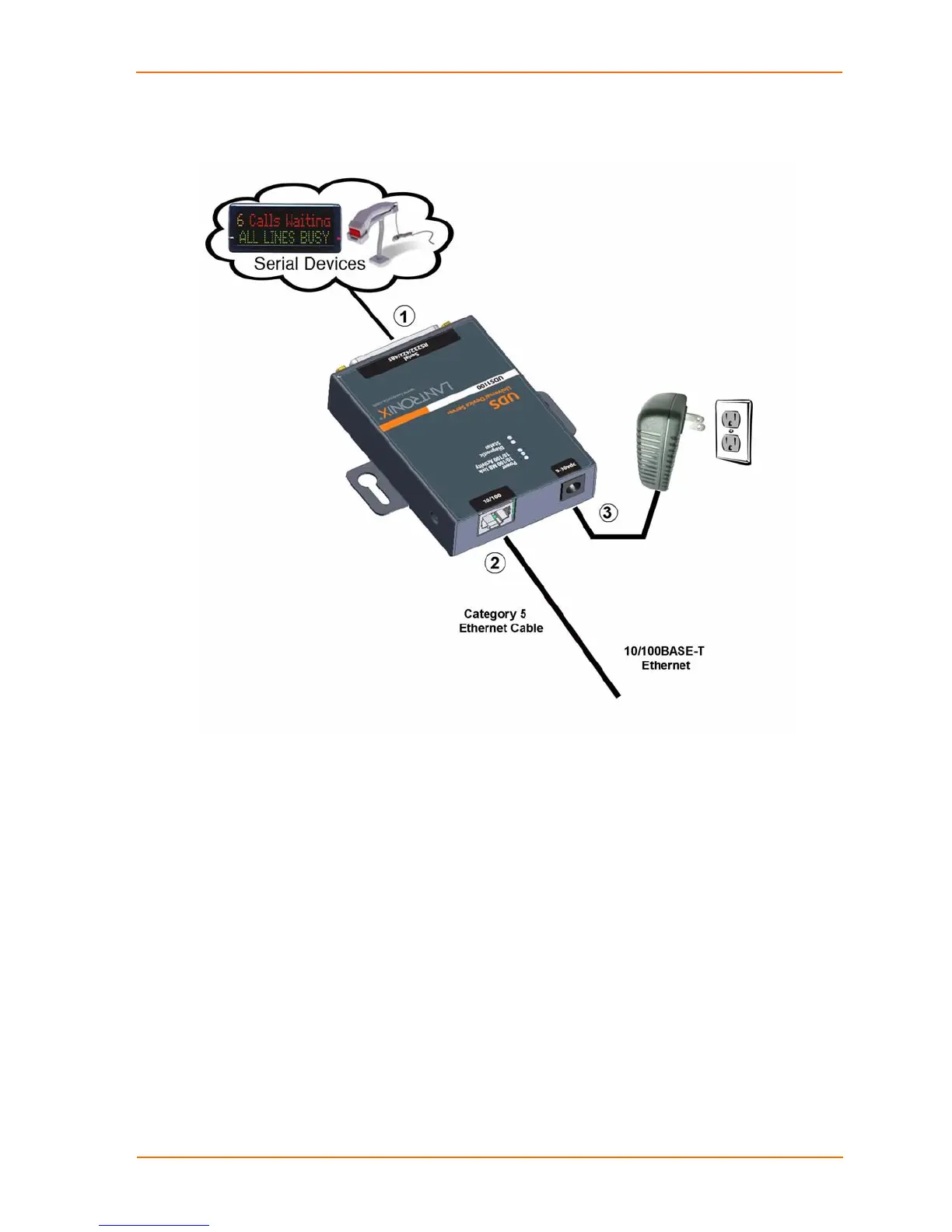

Figure 3-2. Standard UDS1100 Connected to Serial Device and Network
To install the unit:
Complete the following steps in order. Refer to the numbers in the figure above.
Note: See the sections that follow for details about connectors and pinouts.
1. Connect a serial device to your unit.
2. Connect an Ethernet cable to the RJ45 port.
3. For the UDS1100-POE version, power is supplied to your unit over the Ethernet
interface using an 802.3af POE-compliant power source such as a POE mid-
span or POE Ethernet switch.
4. For non-POE UDS1100 unit, supply power to your unit using the power supply
that was included in the packaging.
Note: The required input voltage for the non-POE UDS1100 is 9-30 VDC
(center +) or 10-24 VAC (1.5W maximum power required).
5. Supply power to the serial device.
UDS1100 User Guide 16

Lantronix UDS1100 Specifications

General

Isolation	1.5 kV
Certification	UL, CSA, FCC, CE, TUV, CTick, VCC, UL 864 RoHS
Serial interface type	RS-232/422/485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	100 - 240 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
