Lantronix UDS1100 User Manual

1
1
2
2
:
:
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
o
o
n
n
s
s
a
a
n
n
d
d
P
P
i
i
n
n
o
o
u
u
t
t
s
s
Serial Port
The UDS has a female DCE DB25 serial port that supports RS-232 and RS-485/422
serial standards (software selectable) up to 230 Kbaud.

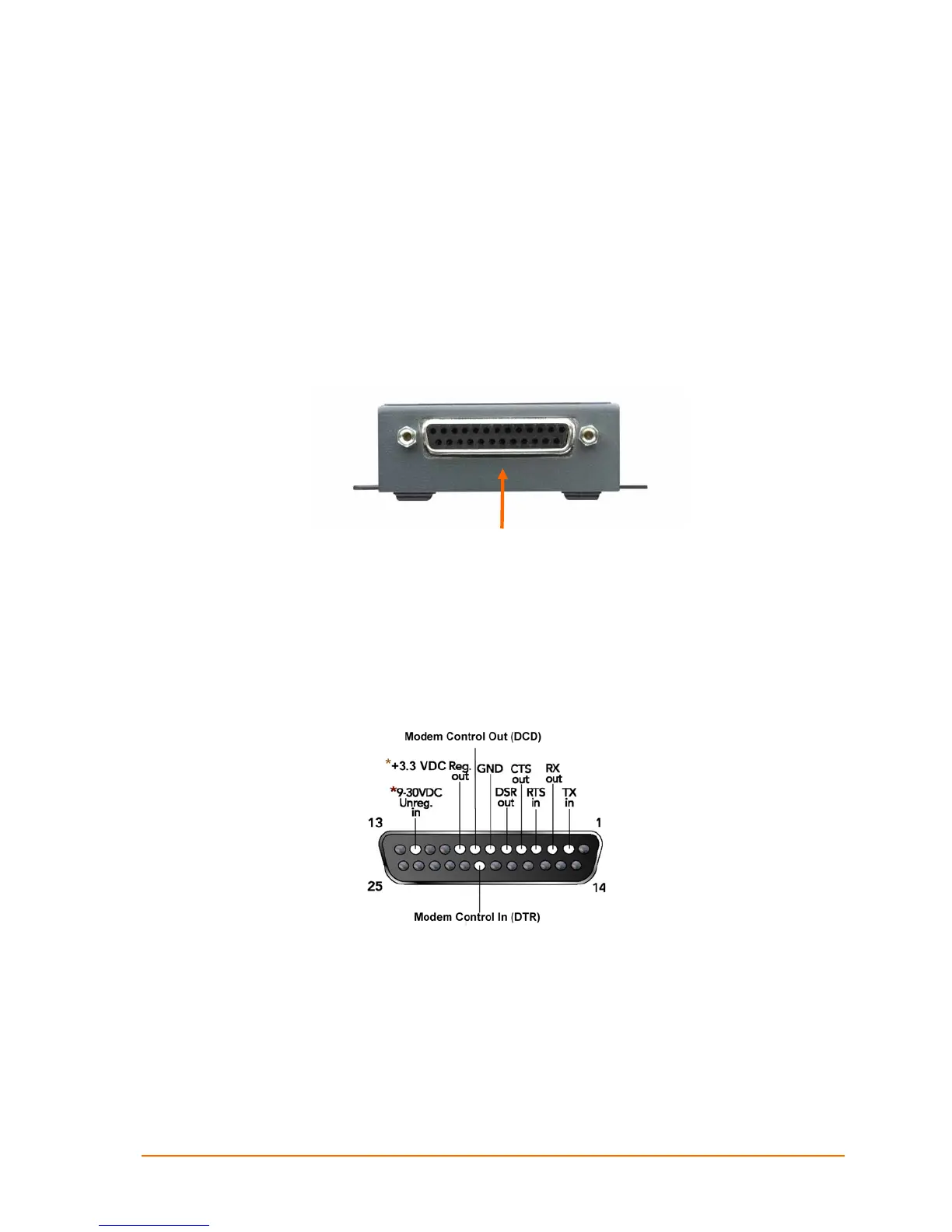

Figure 12-1. Serial Interface
DB25 Serial Port
Serial Connector Pinouts
The unit’s female DB25 connector provides an RS-232C, RS-485, or RS-422 DCE
serial port. The default serial port settings are 9600 baud, 8 bits, no parity, and 1 stop
bit.
Figure 12-2. DB25 Female DCE Interface RS232
*Optional power connection for non-POE unit.
UDS1100 User Guide 71

Lantronix UDS1100 Specifications

General

Isolation	1.5 kV
Certification	UL, CSA, FCC, CE, TUV, CTick, VCC, UL 864 RoHS
Serial interface type	RS-232/422/485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
Cabling technology	10/100Base-T(X)
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	100 - 240 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
