NMS045 Reference Manual Installing the NMS045 on the TRP019 Pole 3-10

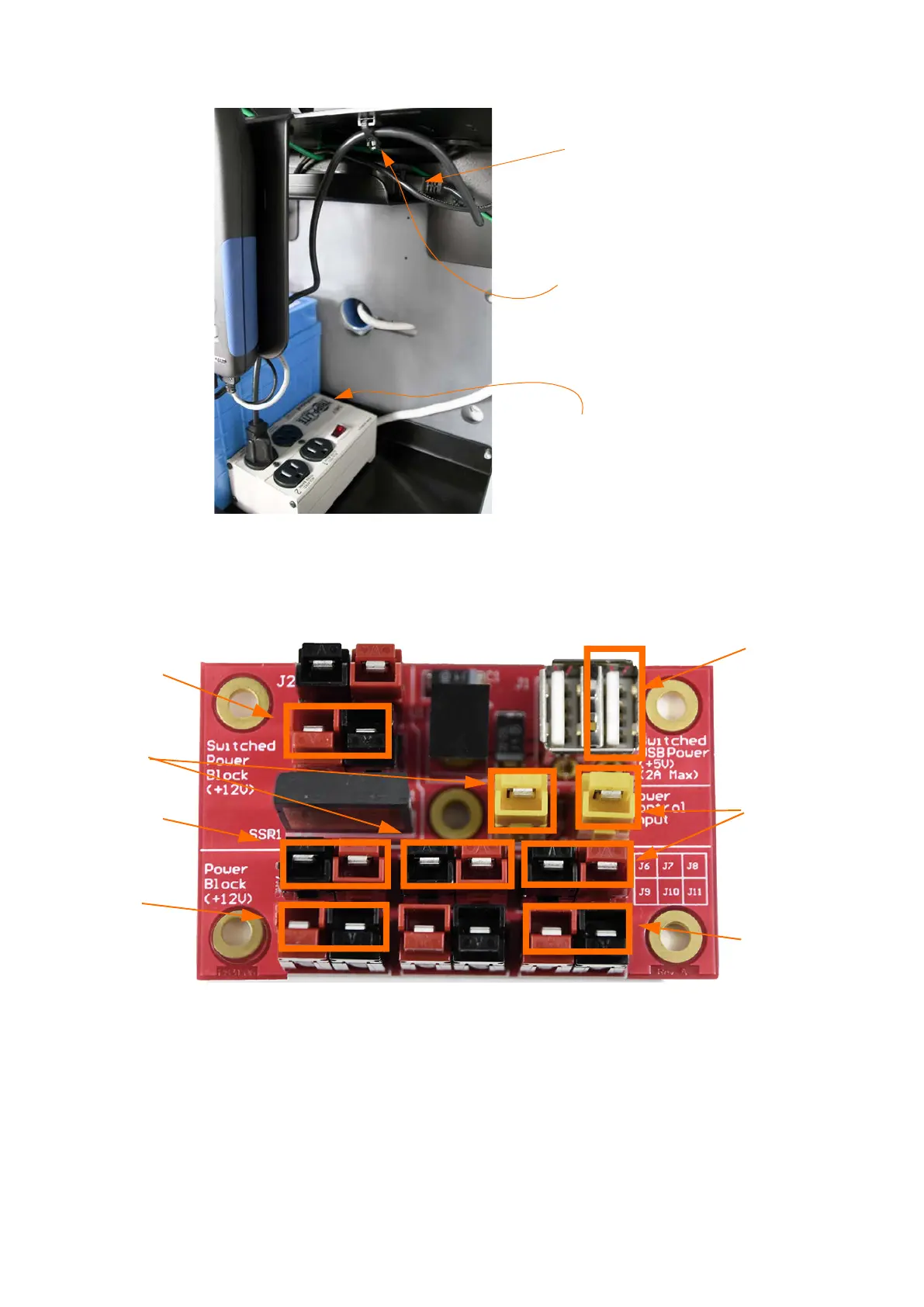

FIGURE 3-14 PSA040 to Surge Suppressor
Step 4 Connect the battery to the power block on the line called
Power Block.
FIGURE 3-15 Control Power Block Suggested Setup
PSA040 (AC only)
After connection,
you can tie the cord
out of the way with
provided zip tie as
shown.
Surge suppressor
PSA040 or
CBL226-03
Battery
RV50X
Gateway
USB Hub
831C SLM
Second
battery
Weather
