NMS045 Reference Manual Weather Installation 4-7
4.4 Weather Installation
Step 1 The pole should be in the tip down position. See 3.3.1
"Positioning the Pole Tip-Down" on page 3-2.
Step 2 Feed CBL229-20 out the top hole in the box, up the pole
and out at the bend. Then feed the cable down the second
half of the pole and out the weather outlet hole. It is
recommended to use fish tape for this process. Careful not
to twist up the cables inside of the pole. The following
figure shows feeding the fish tape through the weather
hole to retrieve CBL229-20.

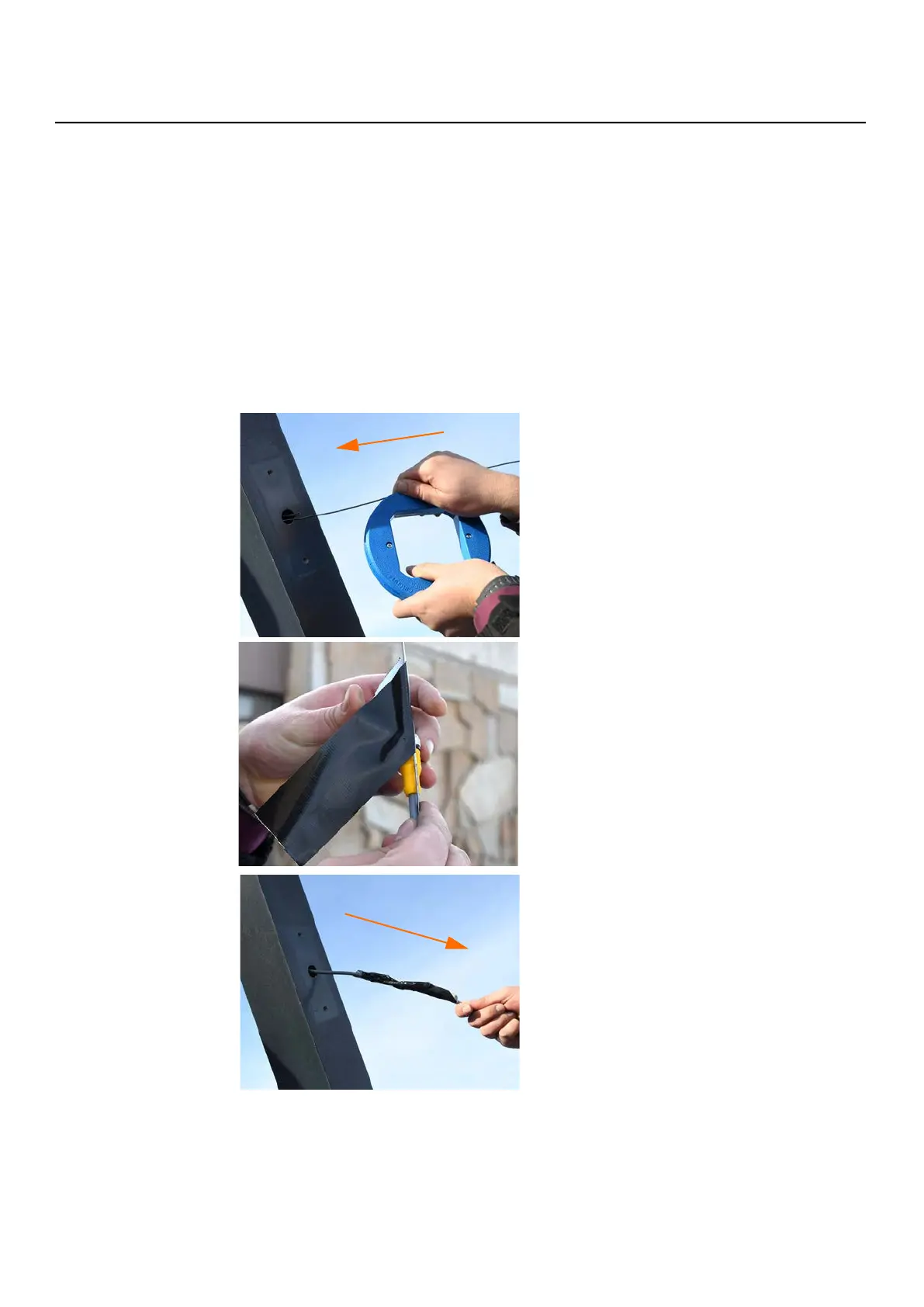

FIGURE 4-8 Feed CBL229-20 with fish tape
1
2
3
Route fish tape from
weather hole to the
back of the pole by the
box.
Feed CBL229-20 out of
the top hole in the back
of the box to the back of
the pole. Secure to fish
tape.
Feed back through pole
and out through weather
hole, giving enough slack
to go through the
weather arm
To Next Page
