NMS045 Reference Manual NMS045 Power Information A-4

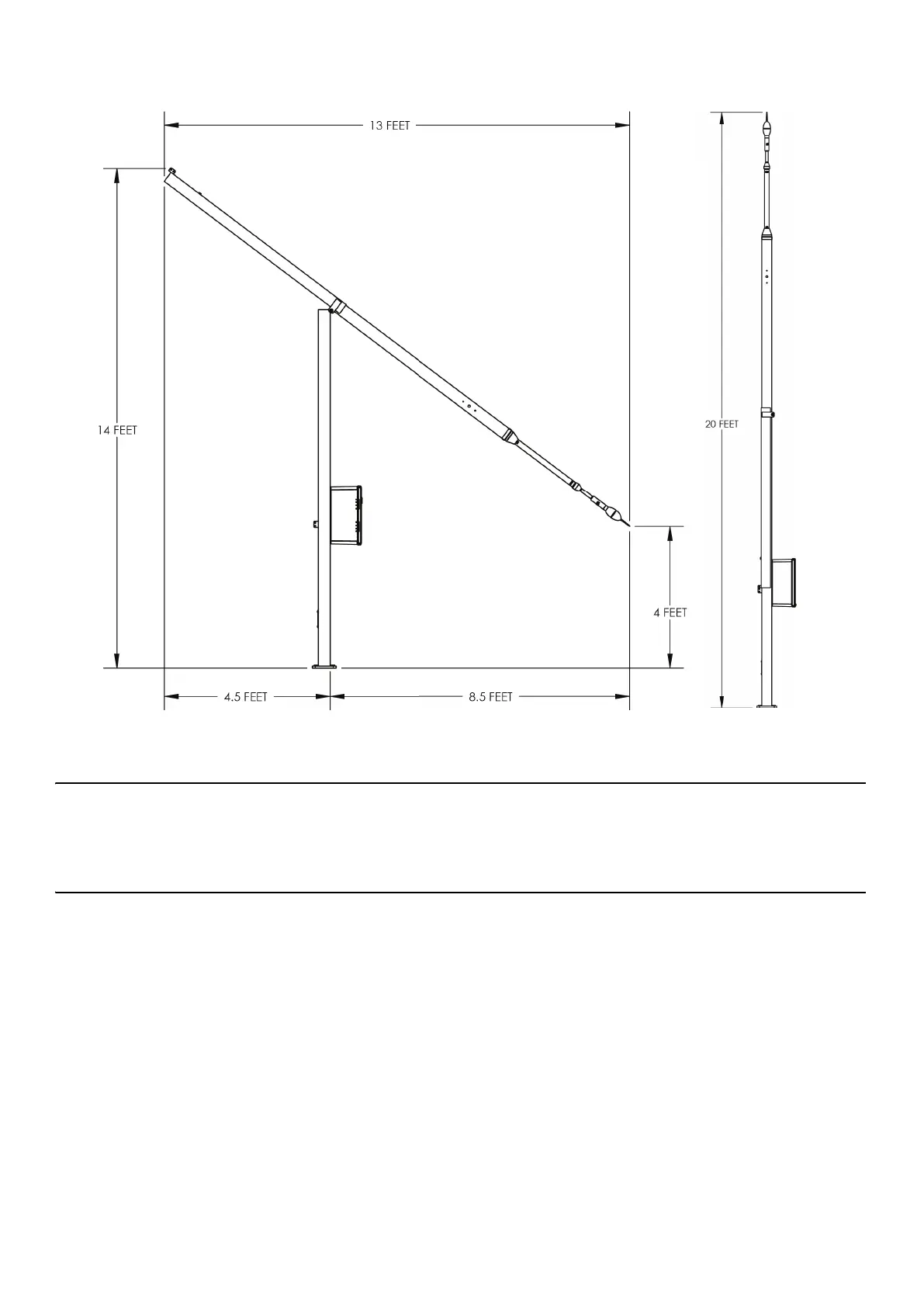

FIGURE A-3 TRP019 Dimensions
A.2 NMS045 Power Information
The NMS045 System draws power from the connected battery that is
charged by a solar panel or AC connection.
A.2.1 Power Draw
The power draw for the system depends on your settings, mode, and
component options installed. These numbers are for your reference
and assume the components for the system are the 831C-045 with the
COM-RV50X-045NA/EU:APAC:
• Minimum Current (Standby Mode): ~5mA
• Average Current (Setting Dependent): ~280mA
• Maximum Current (Setting Dependent): ~500mA
Typical Runtime
The NMS045 system is powered by a 12 V battery that is charged by
either AC or solar panel. The typical runtime for the system solely on
battery life is given below. These are average numbers and should be
