NMS045 Reference Manual Wiring Diagram 1-4
1.4 Wiring Diagram
The following diagram shows the system with all available options,
including the two power options: solar and AC. At least one battery is
needed to run the system.

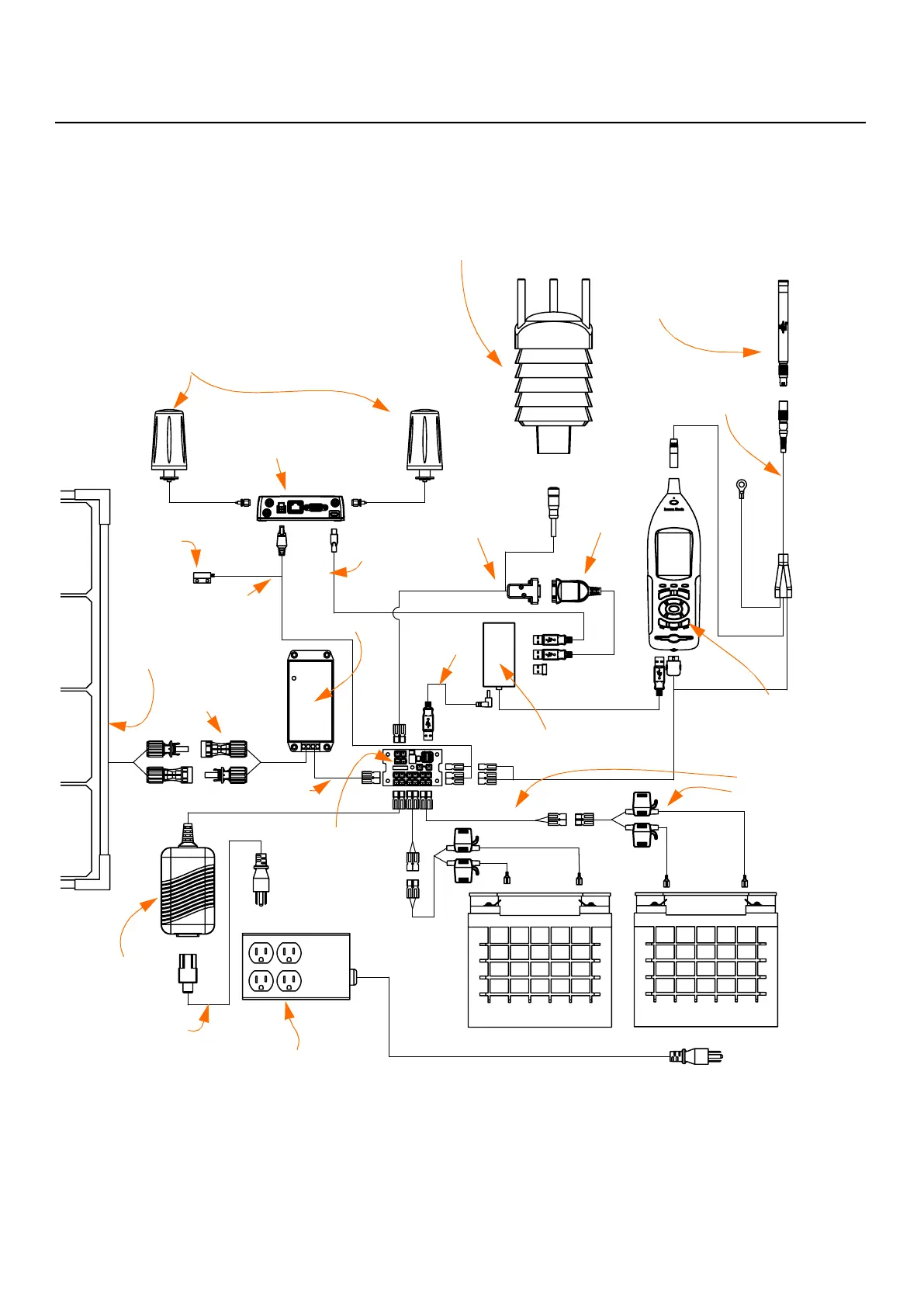

FIGURE 1-2 System Wiring Diagram
Weather/Wind Sensor
SoundAdvisor
Model 831C SLM
PRM2103-FF
Microphone and
Preamplifier
CBL222-20
Cellular Antennas
COM-RV50X
Gateway Modem
Solar panel
CBL233-12
Intrusion
Detection
Magnet
CBL231
PSA040
Surge
Suppressor to
AC Mains
CBL232-02
CBL225-01
DVX013
CBL229-20
CBL235
DVX008A
Solar charger
CBL218
Control Power
Block
CBL226-03
CBL234
