NMS045 Reference Manual Installing the NMS045 on the TRP019 Pole 3-7
3.3.4 Connecting the Preamplifier, Microphone, and Protection
Step 1 Remove the rubber cap from the top of the preamplifier.
Step 2 Place microphone on preamplifier, and gently screw
together until hand tight.
Step 3 Hold the EPS2116 windscreen and bird spike together, and
unscrew from the top. Screw the top and base together.
The EPS2116 should now appear in two components, see
Figure 3-10 EPS2116 Separated.

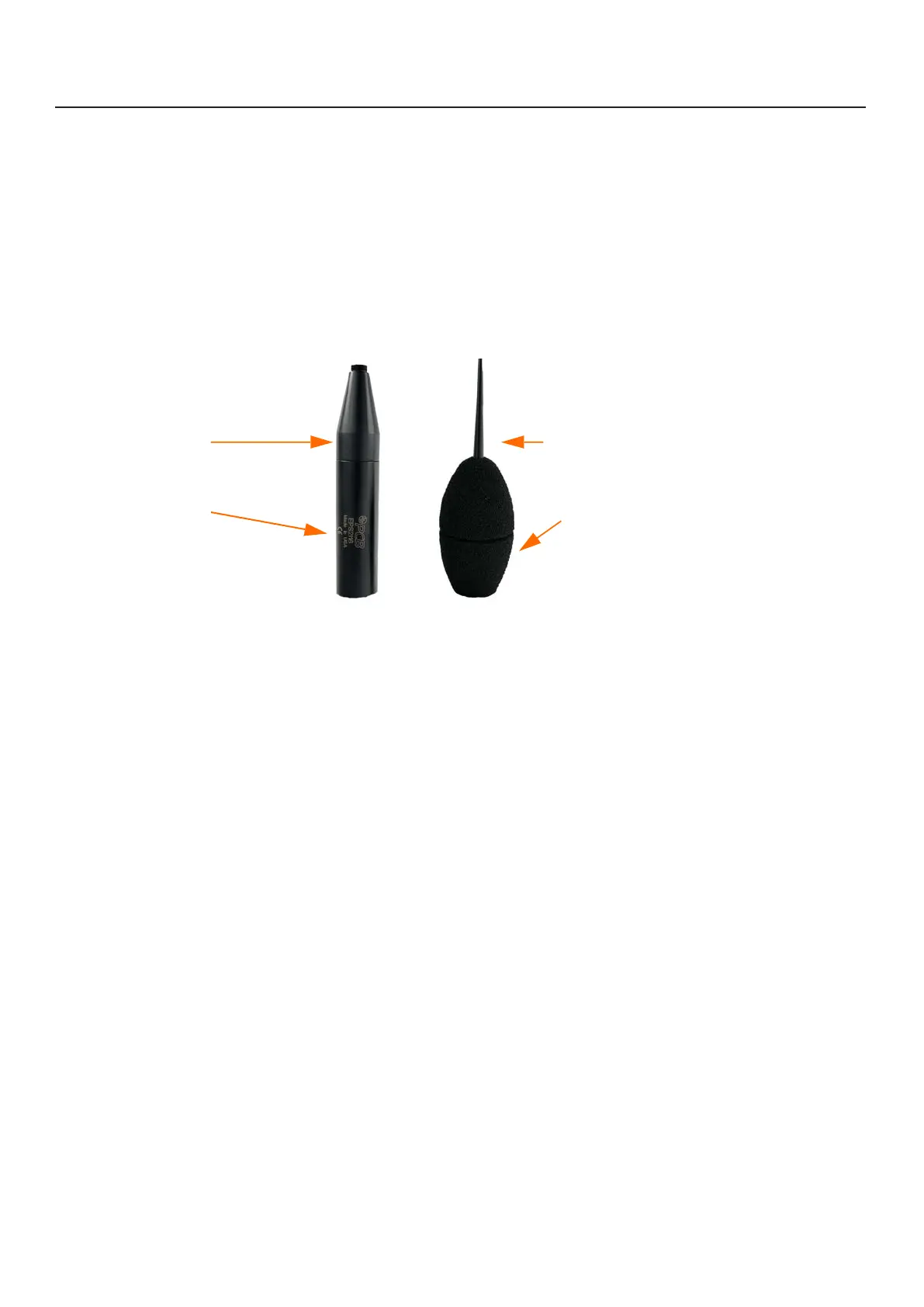

FIGURE 3-10 EPS2116 Separated
Step 4 Follow the steps in Figure 3-11 to complete the EPS2116
threading.
Top
Base
Birdspike
Windscreen
To Next Page
