NMS045 Reference Manual Installing the NMS045 on the TRP019 Pole 3-6

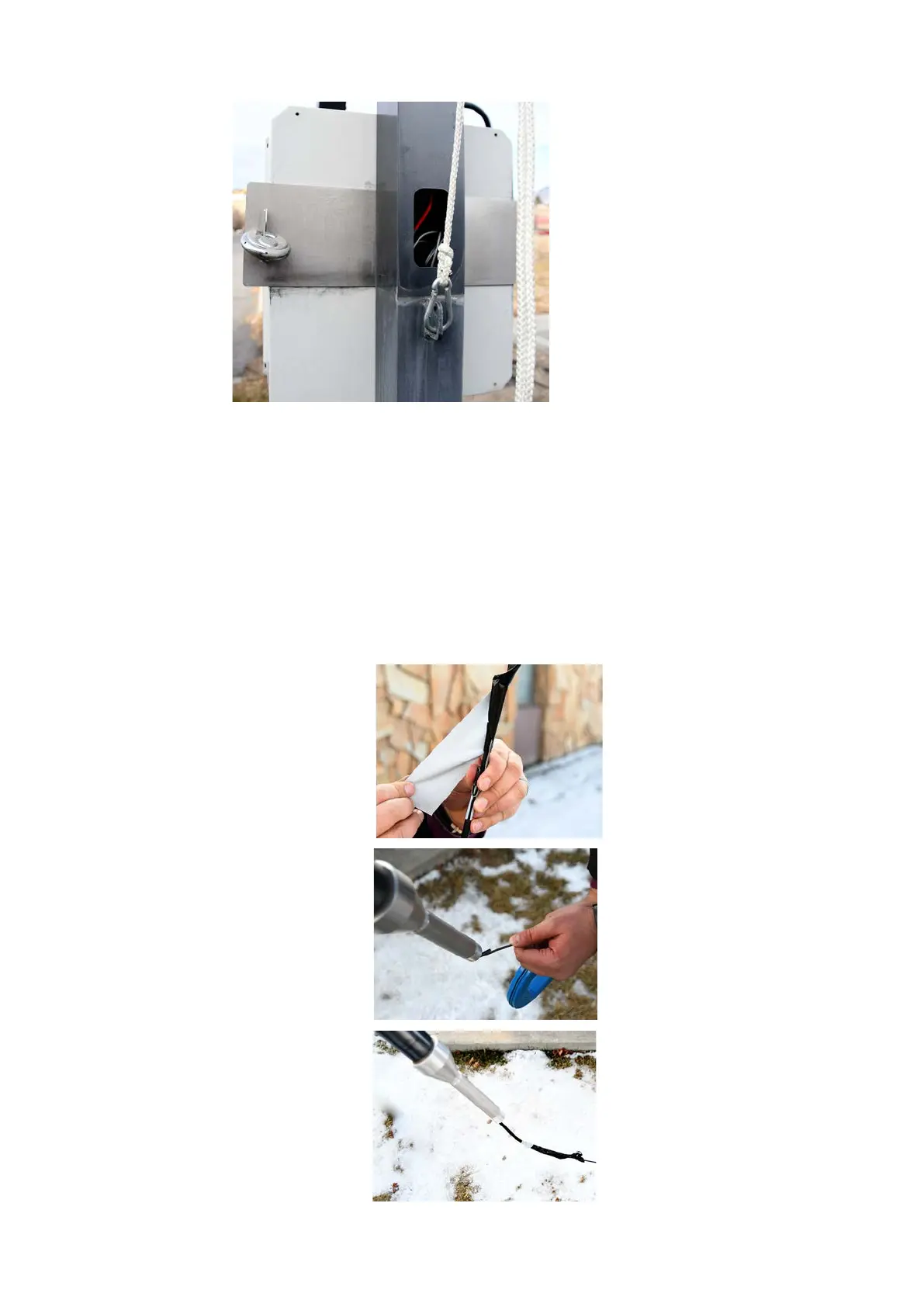

FIGURE 3-8 Back of Pole
Step 2 Feed the CBL222-20 through the top hole in the back of the
box until it is on the outside of the pole on the opposite
side. See point A in Figure 3-7 "Cables in TRP019".
Step 3 Feed the cable up the pole and out at the bend at point B.
Step 4 Feed the cable down the second half of the pole. We
recommend using fish tape for this process. See Figure 3-9
"CBL222-20 Routing with Fish Tape".
TAKE NOTE If the end of the
cable gets stuck at the
weather cable outlet, recoil
and try again until it clears
the opening.
FIGURE 3-9 CBL222-20 Routing with Fish Tape
1
2
Insert fish tape into signal
outlet, and route to the back of
the pole.
Attach fish tape to CBL222-20
3
Recoil fish tape until the
CBL222-20 is out.
To Next Page
