Section #2 - Speed Measurements - Page 17
Copyright (c)[2013] Laser Technology, Inc. All rights reserved. Unauthorized duplication, in whole or in part, is strictly prohibited
Section #2 - Speed Measurements
When you power ON the TruSpeed, the instrument will perform the Self Test.

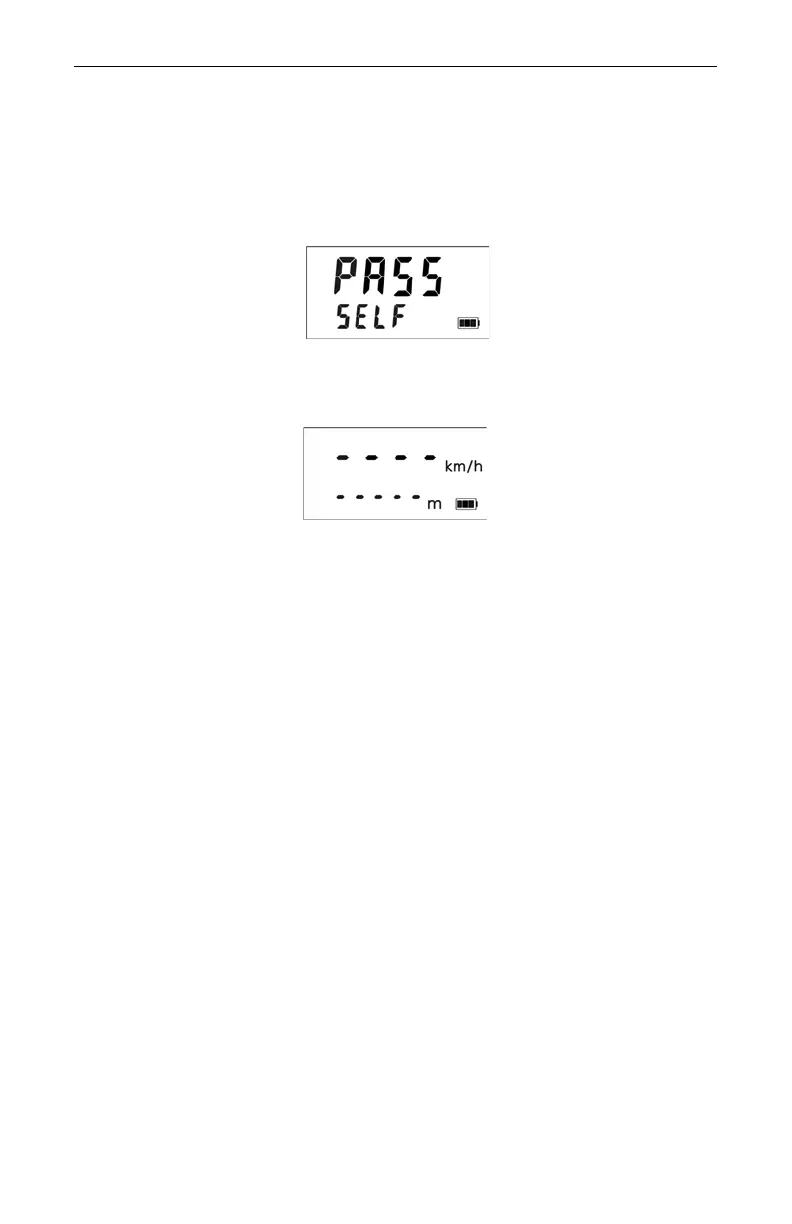

Figure #14 shows successful completion of the Self Test. See page 32 for more
information about the Self Test.
The next screen is automatically displayed and should look similar to Figure #15.
• The dashes that appear in the upper display indicate where the
speed measurement will appear.
• “km/h” means the speed will be measured in kilometers per hour.
• The dashes that appear in the lower display indicate where the
distance to the target vehicle will appear.
• "m" means the distance will be measured in meters.
• The Battery Icon indicates the approximate battery voltage
level (page 10).
