Initial Set-Up
Steering Control Arms
Initial Set-Up Lastec//061714 3-15
3
3.16 Steering Control Arms

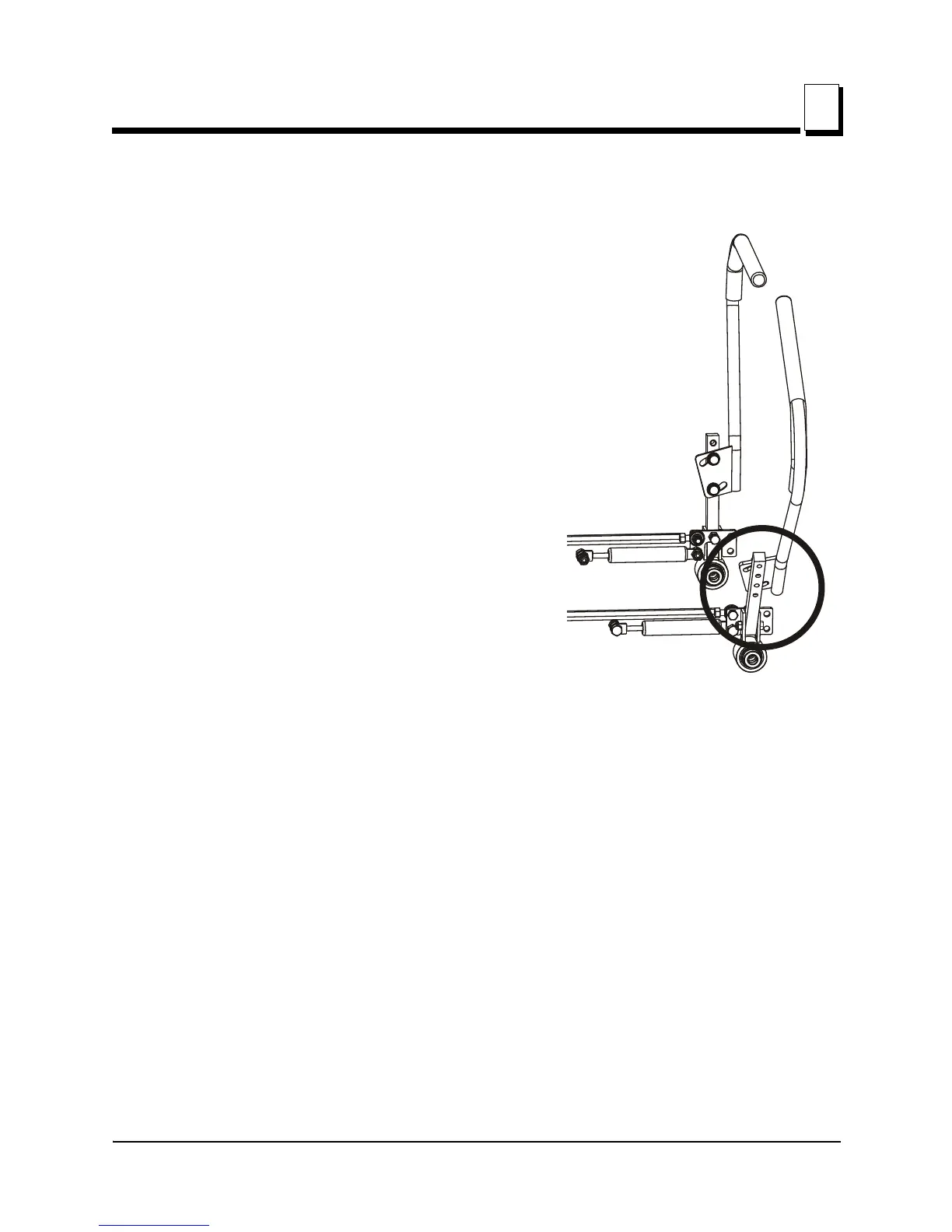

Check that both steering control arms are prop-
erly linked, free of debris, and operating freely.
Swing the arms toward the operator seat,
removing them from the neutral lock position.
Slowly push both arms all the way forward, then
all the way back. They should both move
smoothly and easily, with no sticking, obstruc-
tion, or uneven tension. They should also slowly
return back to neutral position, which is straight
up and down and centered with the neutral posi-
tion lock (notch in the frame).
Be sure to return and lock both control arms into
neutral position.
The control arms can be adjusted for operator
comfort by repositioning the control arms on the
control assembly.
