Maintenance
Lubrication Charts, 4520
5
5-10 Lastec//061714 Maintenance
5.17 Lubrication Charts, 4520
NOTE: All wheels should also be lubricated every 8 hours of operation.

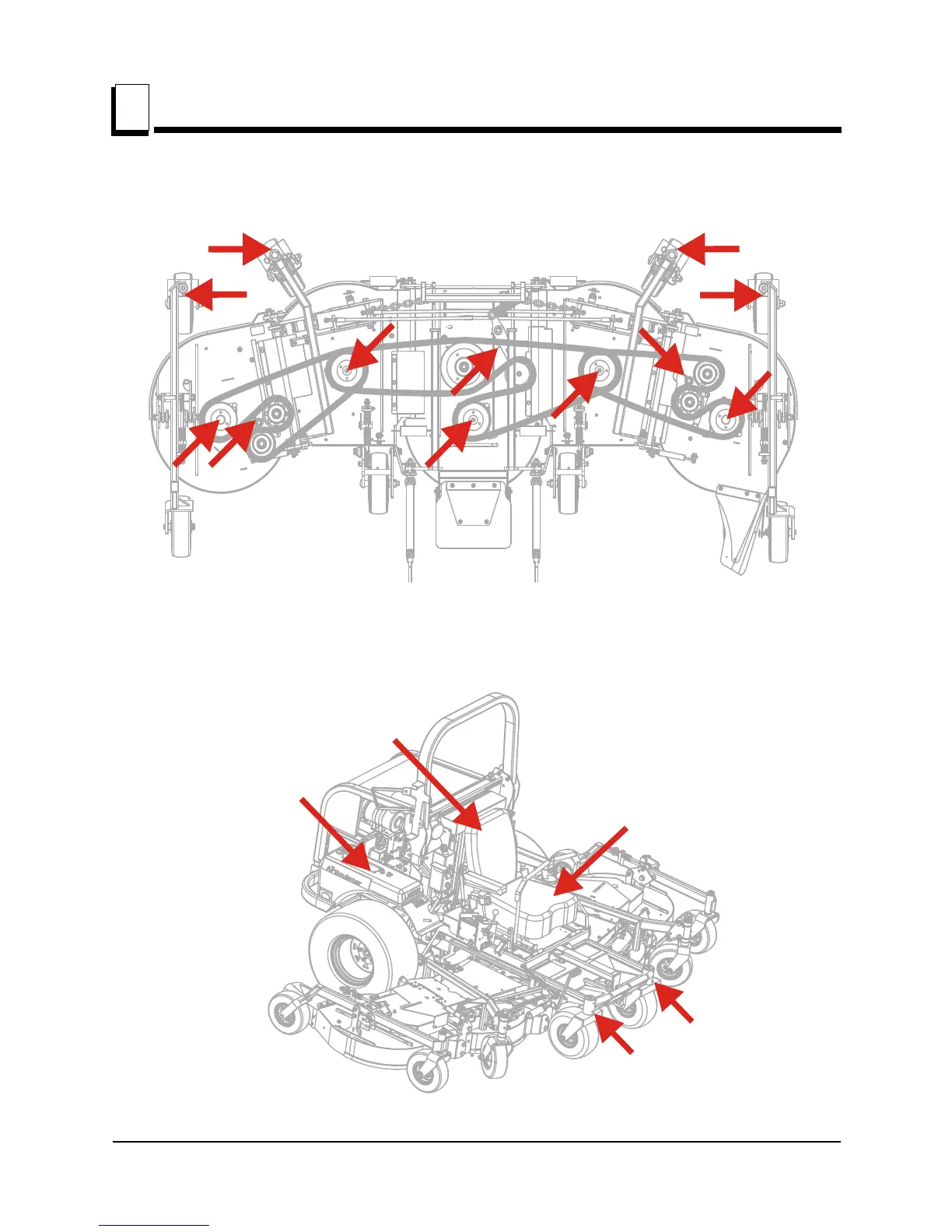

FIG. 5-3 LUBRICATION POINTS, 120” DECK ASSEMBLY
FIG. 5-4 LUBRICATION POINTS, MODEL 4520
120_055
120_056
Hydraulic
Belt Idler
E-Brake (rear)
Deck Drive
Idler
