Launch TLT245AT / TLT250AT(C) Two-post lift’s Installation manual
11

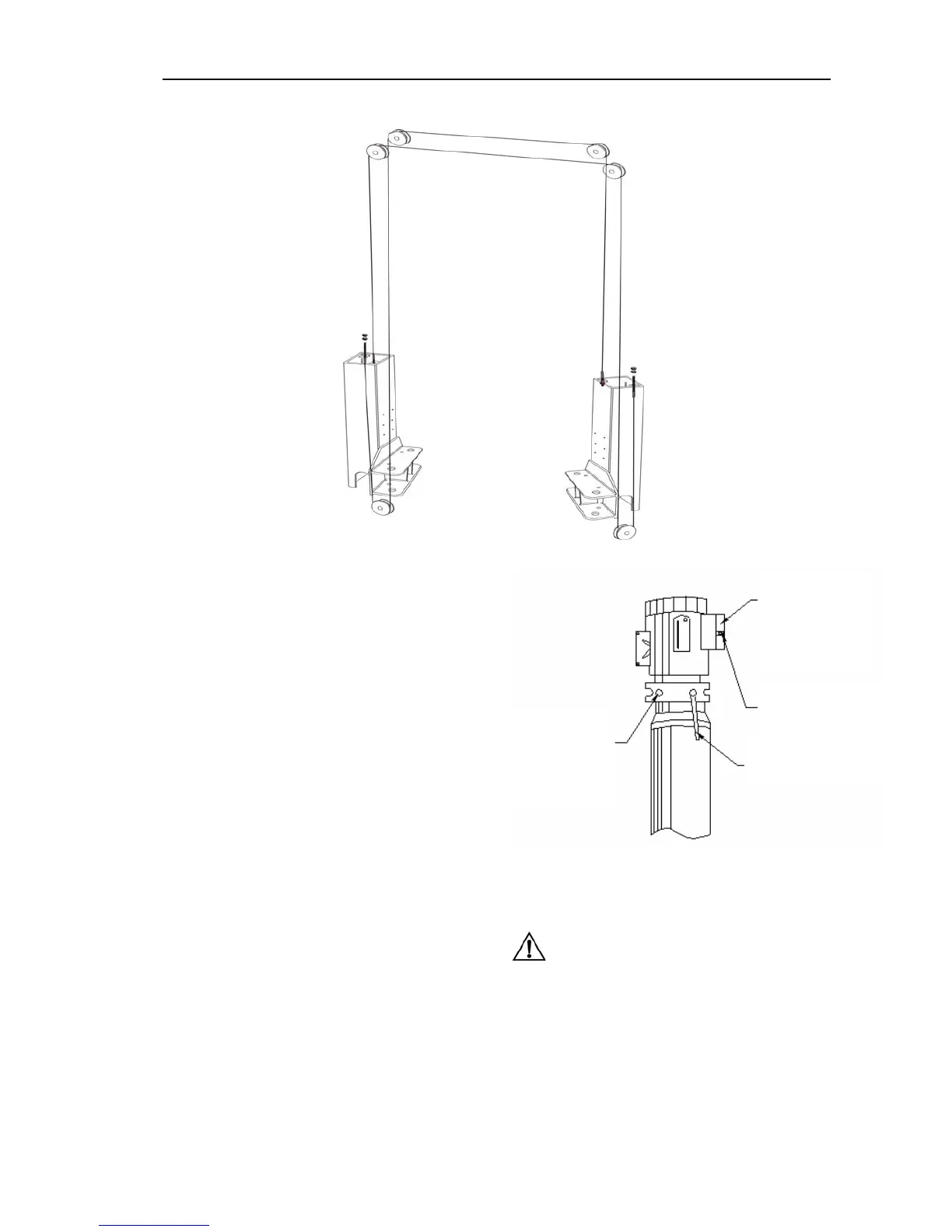

Fig 9
Key points for assembly: the two steel cables shall
be adjusted to equal tension in order to ensure the
simultaneous movement of the two carriages.
5.2.7 Install the power unit
Use two M10 bolts and washers to fixing the power unit.
After fixing the power unit. Fill the reservoir with
hydraulic oil .Operate carefully to avoid dust and other
pollutants mixed with the hydraulic oil.
5.2.8 Connecting the power supply
Dismantle the sealing cover of the electrical box on the
power unit and do the wiring according to the circuit
diagram; the power supply switch is required to be
installed near the lift for convenient disconnecting the
power supply during maintenance or in case of
emergency. The motor damage caused by wrong wiring
is not warranted. Please contact the manufacturer for
the electrical issues. Ensure that the oil tank is full; don’t
operate where there is no oil. After pressing the start
button, if the motor doesn’t run or the abnormal noise or
heat occurs, the machine shall be immediately stopped
to check the correctness of the electrical connections.
Fig 10
Note
：
If the lift is used outdoors, it is recommended to set a
cover on the power unit; such damages to the motors
caused by the water or other liquids like the detergent,
acid, etc, are not covered by warranty.
Refer to the circuit
diagram attached
with the motor in
order to acquire
the correct wiring
instruction
.
Start button
(Press to lift)
Lowering handle
(Press to lower)
Remove the
plastic plug from
here and install
one hydraulic
fitting
