Launch TLT245AT / TLT250AT(C) Two-post lift’s Installation manual
12

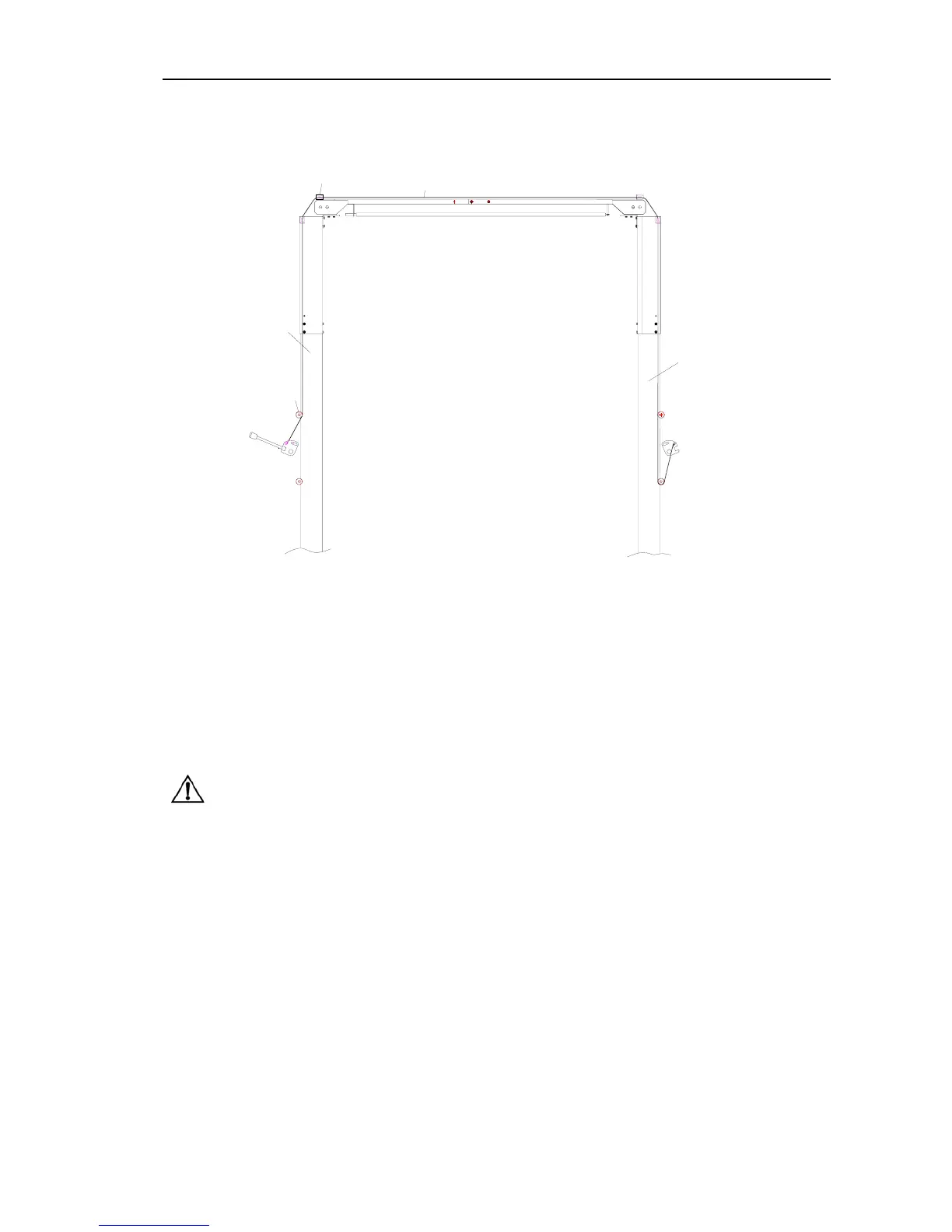

5.2.9 Lock release cable installation
副立柱
主立柱
保险钢丝绳
穿线块
尼龙轮
Fig.11
5.2.10 Connect the hydraulic lines
Hydraulic lines is shown in Figure 12; please perform
the connection according to the diagram and all the
fittings shall be tightened in order to prevent the oil
leakage
Note: When installing hoses, the carriage is
at lowest position, to reduce the air in cylinder as
much as possible .Air bleeding is being conducted
when debugging.
If the hose shall be installed through the column,
ensure that the hose passage will not interfere with
any moving parts.
Power side column
