Launch TLT245AT / TLT250AT(C) Two-post lift’s Installation manual
13
扣压式胶管总成
￠10弹垫
油缸
立柱
M10×25螺栓
2套
￠10平垫
直通长管接头
扣压式胶管总成
液压站
可调向接头
三通管接头
直通长管接头
高压软管

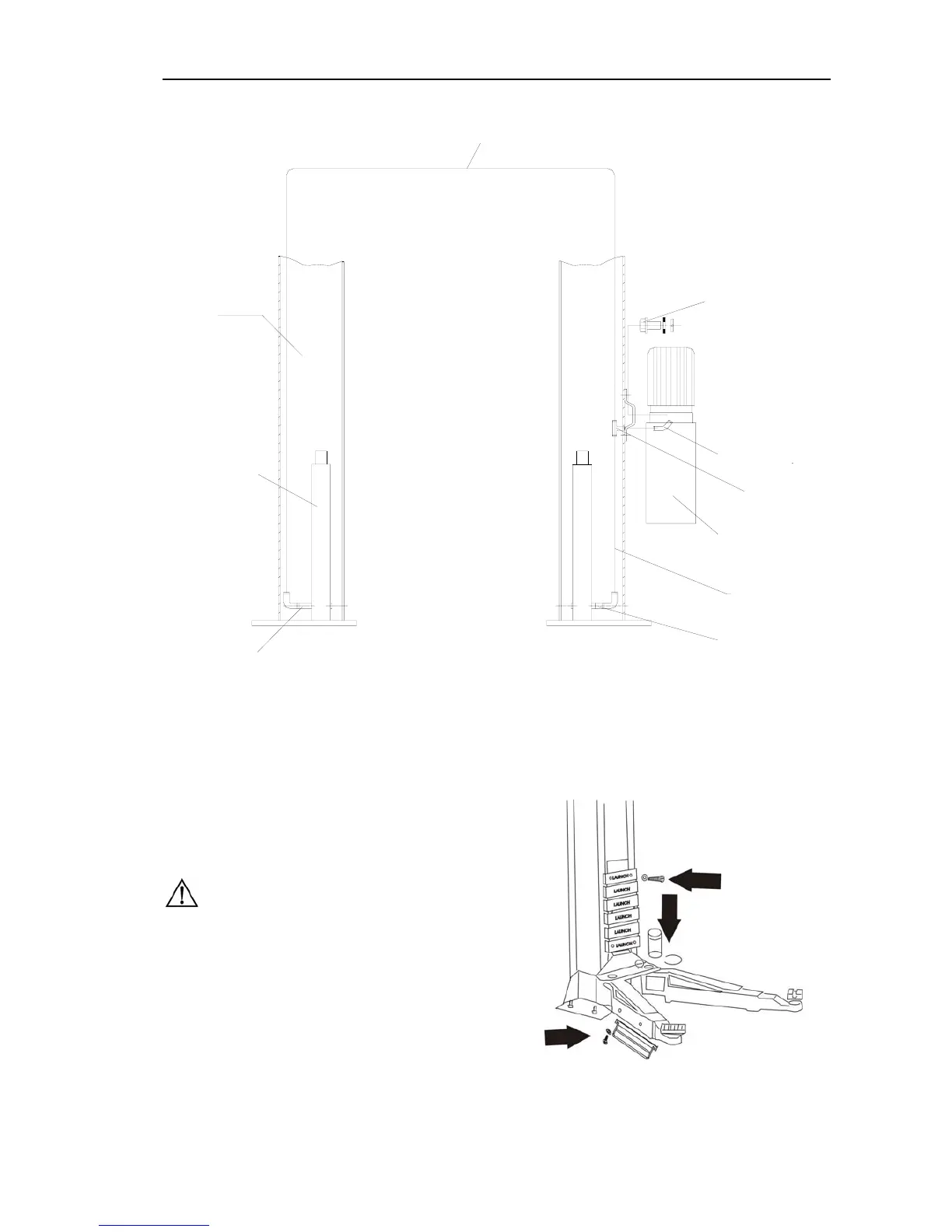

Fig 12
5.2.11 Install the swing arm
z Install the swing arm as Fig.13
z Check if the positioning gear mechanism at the end of arm
fits, adjust the Screw s of fixed semi-gear for its fitness.
Note:：
z During the installation, lubricate the moving parts of
swing arm and carriage ,so that the swing arm can move
freely.
z Make sure the arm positioning gear is engaged!
Fig. 13
M10×20 螺栓
泵站接头
Column
Cylinder
Oil hose assembly
Fitting
￠10 Spring washer
￠10 Flat washer
M10×20 Bolt,2 sets
Fitting Hose
T fiiting
Oil hose assembly
Power unit
Fitting
