LAUNCH X-431 ADAS PRO Calibration Tool User Manual
41
5.2.1.1 Placing the ADAS calibration panel in front of the vehicle
Proceed as follows to place the ADAS calibration panel in front of the vehicle:
1. Connect the diagnostic tool to the vehicle.
1). Locate the vehicle’s DLC (Data Link Connector).
The DLC (Data Link Connector or Diagnostic Link Connector) is typically a standard
16-pin connector where diagnostic code readers interface with the vehicle’s
on-board computer. The DLC is usually located 12 inches from the center of the
instrument panel (dash), under or around the driver’s side for most vehicles. If DLC
is not located under dashboard, a label should be there telling location. For some
Asian and European vehicles, the DLC is located behind the ashtray and the ashtray
must be removed to access the connector. If the DLC cannot be found, refer to the

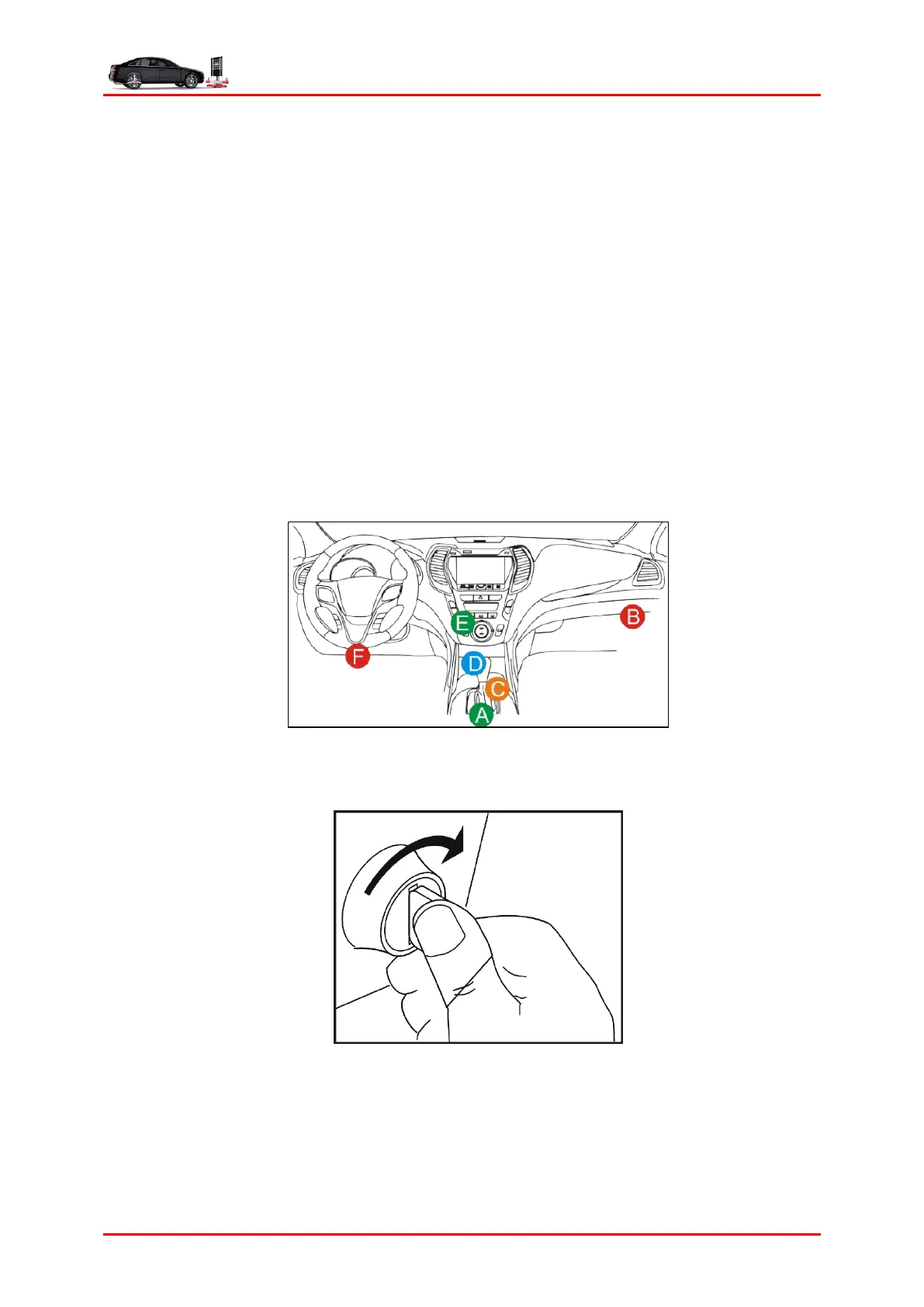

vehicle’s service manual for the location. See Fig. 5-1 for DLC location.
Fig. 5-1
2). Turn the ignition switch on.
Fig. 5-2
3). Plug the VCI device into the vehicle’s DLC socket. The power LED of the VCI
device illuminates solid red.
4). Turn the diagnostic tool on and enter the home screen.
