External Parts

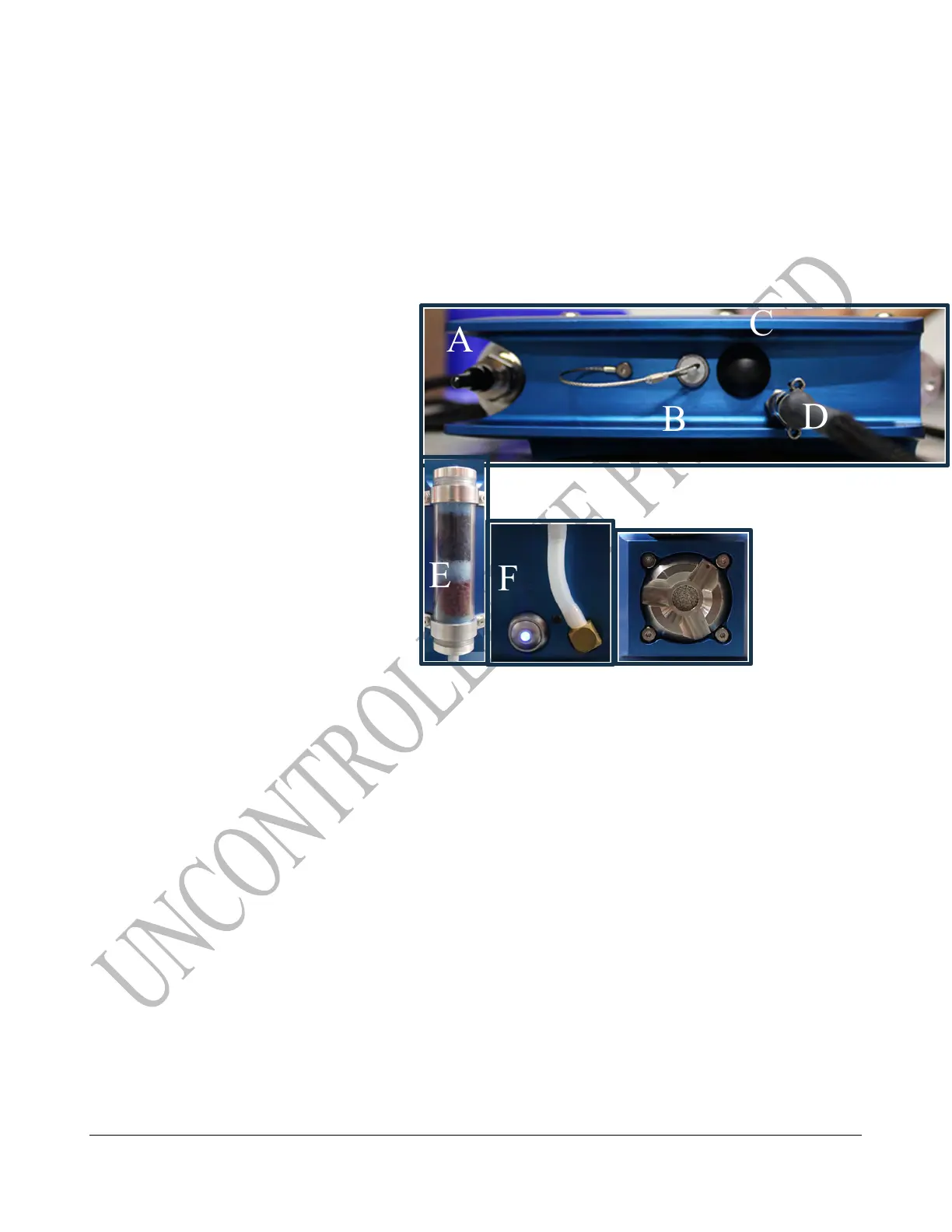

l The connection end (north end) contains the following:
A. Hydrogen fill port/H2
Quick Fill
B. Charging
port/Charging port
cover and tether*
C. Bluetooth® antenna
D. Probe port
l Side panels contains the following:
E. Scrubber (west end)
F. Power button (west end)
G. The FID exhaust
(flame arrestor end cap assembly) is located on the side of the enclosure (east end).
l The phx42 enclosure
o Enclosure is a two-part (lid and base) aluminum housing with a serial number on top. It also
has important manufacturer information and certification labeling at the bottom.
TECH TIP: If the H2 Quick Fill Cover or the Charging Port Cover are EVER missing, you should not
take the phx42 into a hazardous location.
*Pictures of the charging port with the cover removed are available in the charging section.
F
A
C
E
G
B
B
D
