Probe Repair Procedure
Tools and Parts

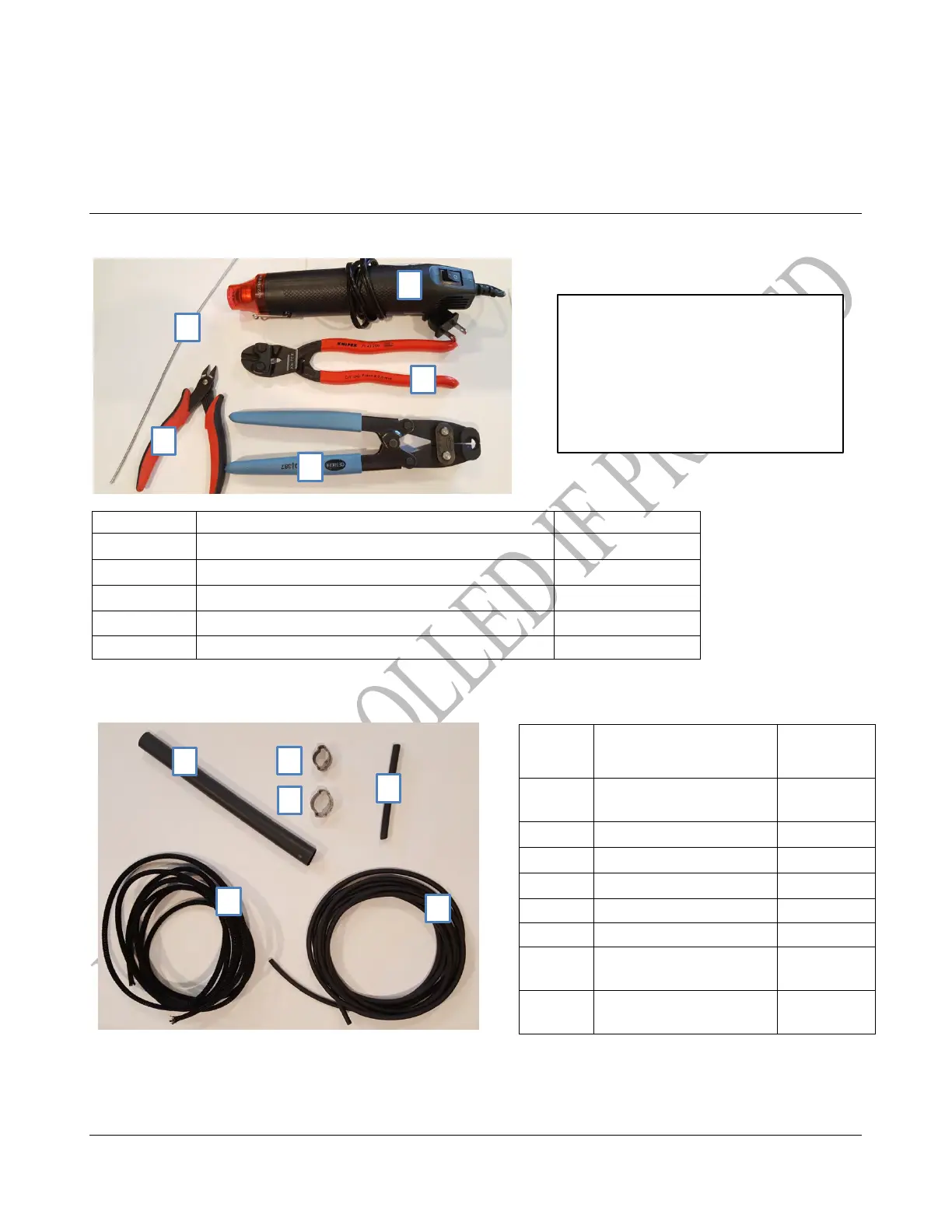

Probe Repair Tool Kit (LDAR#4040):
Picture ID
Part Name
LDAR Part #
A
Rod for threading Tubing through Sheath
42099
B
Heat Gun
4231
C
Angled High Leverage Cutters
4234
D
Pinch Clamp Pliers
4021
E
Angled Wire Cutters*
1741
*Included in phx42 level 1 tool kit LDAR# 4203.
Probe Repair Kit (LDAR#4020)
ID
Part
LDAR
Part #
A
Large Heat Shrink
(2 – 2.5” Pieces)
42094
B
Small Pinch Clamp
42091
C
Large Pinch Clamp
42093
D
Small Heat Shrink
42087
E
Sheath
42082
F
Tubing
42083
Not
Shown
White Teflon Collar
42420
Not
Shown
Male Luer to
Bulkhead
42084
A
E
B
C
D
A
B
C
D
E
F
Additional recommended
supplies:
Snoop Liquid Leak Detector or
other Non-VOC material for
lubrication of tubing.
