Disassembly:
Probe Clamp Removal:

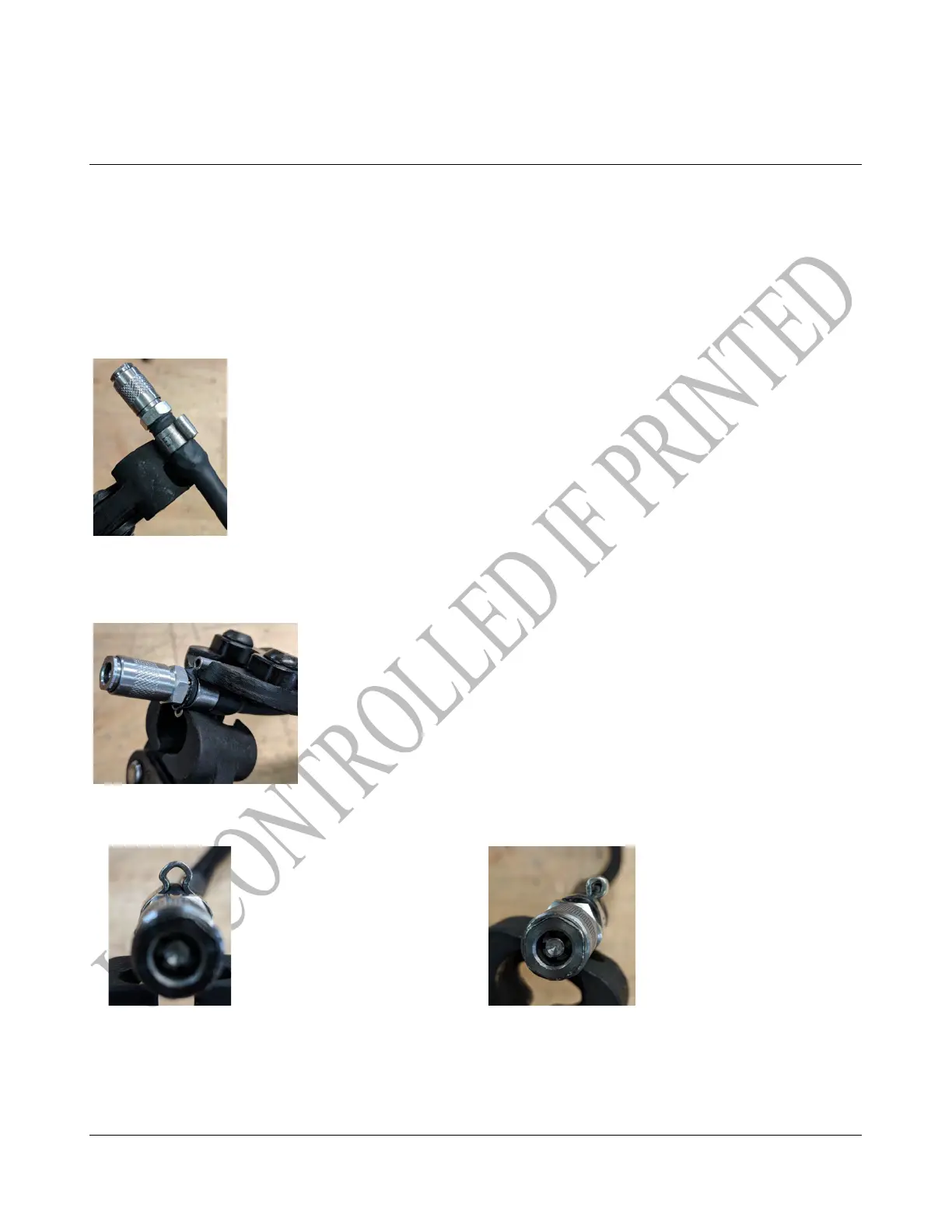

1. Grasp the Large Pinch Clamp (LDAR#42093) on one “ear” with the Pinch Clamp Pliers
(LDAR#4021).
TECH TIP: Use the front edge of the Pinch Clamp Pliers for all steps in this procedure. We will
never use the side face.
2. Grasp the other “ear” of the Pinch clamp with the Angled High Leverage Cutters
(LDAR#4234).
3. Squeeze the Angled High Leverage Cutters on the “ear” to get it ready for cutting.
Before squeezing with Angled High Leverage Cutters
After squeezing with Angled High Leverage Cutters
4. Using the very end of the Angled High Leverage Cutters, make a series of tiny cuts along the
length of the ear until it is completely cut off.
To Next Page
