31

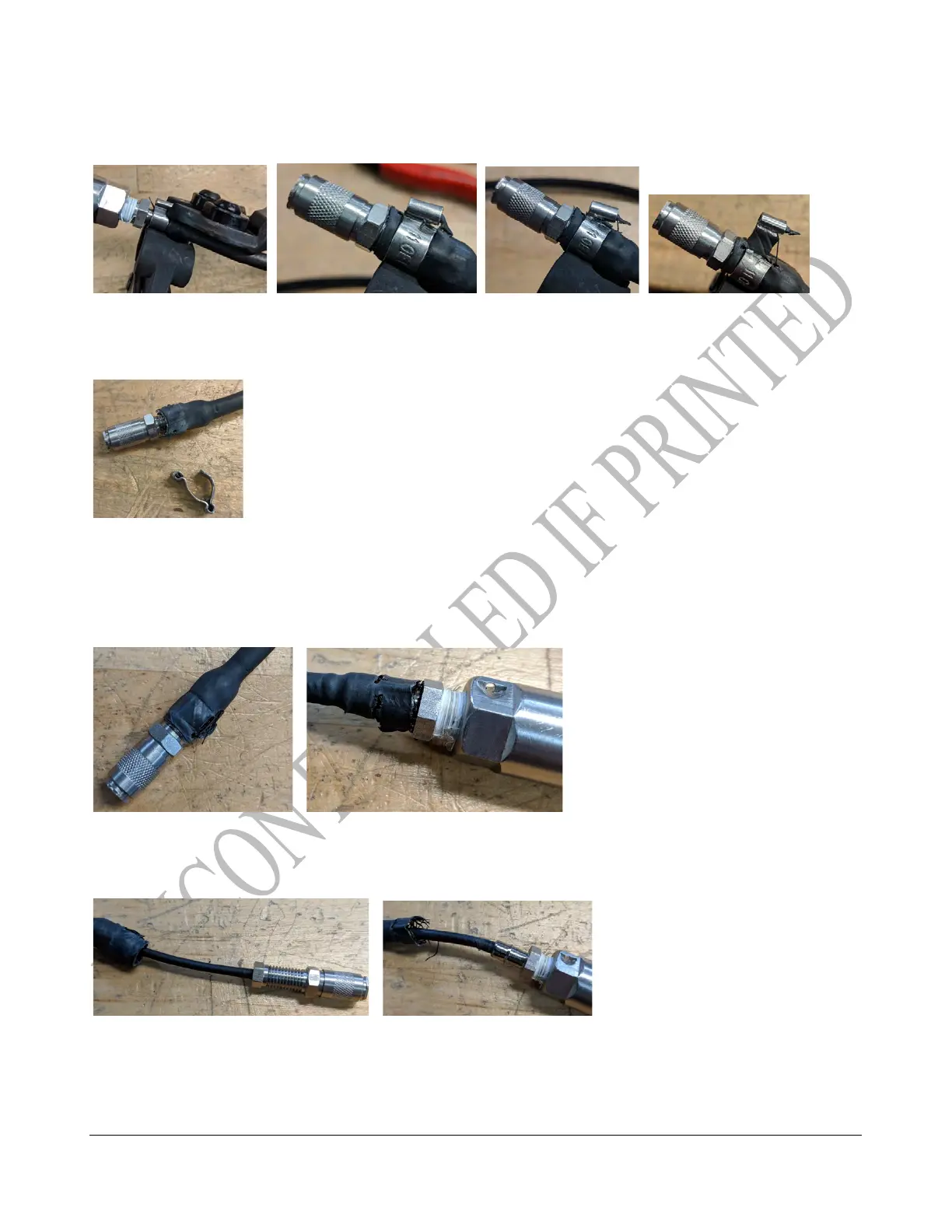

5. Pull the cut clamp off with the Pinch Clamp Plier by pulling on the remaining “ear” of the clamp
that you were already gripping.
TECH TIP: Be aware of the barb extending into the tubing. You do not want to pinch or bend the
barb.
6. Repeat this process for the Small Pinch Clamp (LDAR#42091) on the handle side of the Probe
Assembly.
7. Once both Pinch Clamps are removed, pull off the outer Large heat shrink (LDAR#42094) and
Sheath (LDAR#42082) using the Angled Wire Cutters (LDAR#1741) if necessary.
