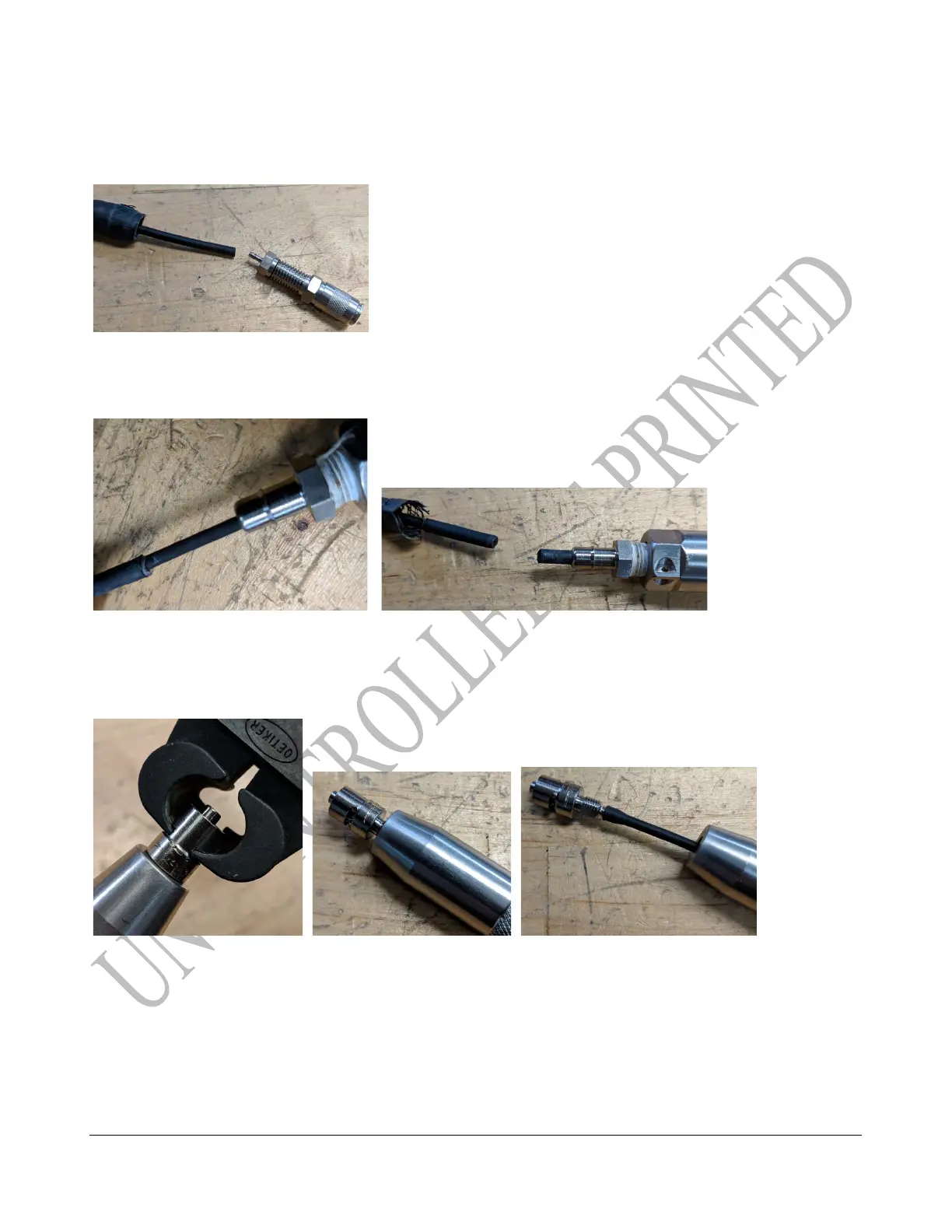

8. Pull the Tubing (LDAR#42083) off of the barb on the Quick Disconnect end.
9. On the base of the probe, pull the Tubing (LDAR#42083) out and cut it off above the Heat
Shrink.
10. Unthread the Luer lock fitting at the tip of the probe. Try first with fingers alone. If this does not
work, gently grip the fitting in the notch with the crimping pliers and loosen. Be careful to avoid
the central stem of the fitting since this is the sealing surface.
11. Pull the Tubing off of the barb of the fitting.
12. Discard the used Tubing, Sheath, Heat Shrink, and Pinch Clamps.
