Probe Inspection (part 1):
At this point you should be left with the three fittings that make up the Probe Assembly:
Inspect the remaining parts:
1. Inspect Quick Disconnect (LDAR#42092) for blockage.
2. If damaged, report an issue.
Probe Reassembly:
1. Lubricate Male Luer to Bulkhead to 0.125” O.D. barb (LDAR #42084) with Snoop or
equivalent. Do not use a lubricating with any VOC content. (If you are not sure, test a
sample of what you want to use with a phx42. That’s what it’s for!)
2. Push Tubing (LDAR #42083) onto the barb side of the Male Luer (LDAR #42084),
stopping after the Tubing has moved over the first ridge.
3. Feed the other end of the tubing all the way through the center of the Handle (LDAR #42081)
until you can thread the Male Luer bulkhead into the Handle.

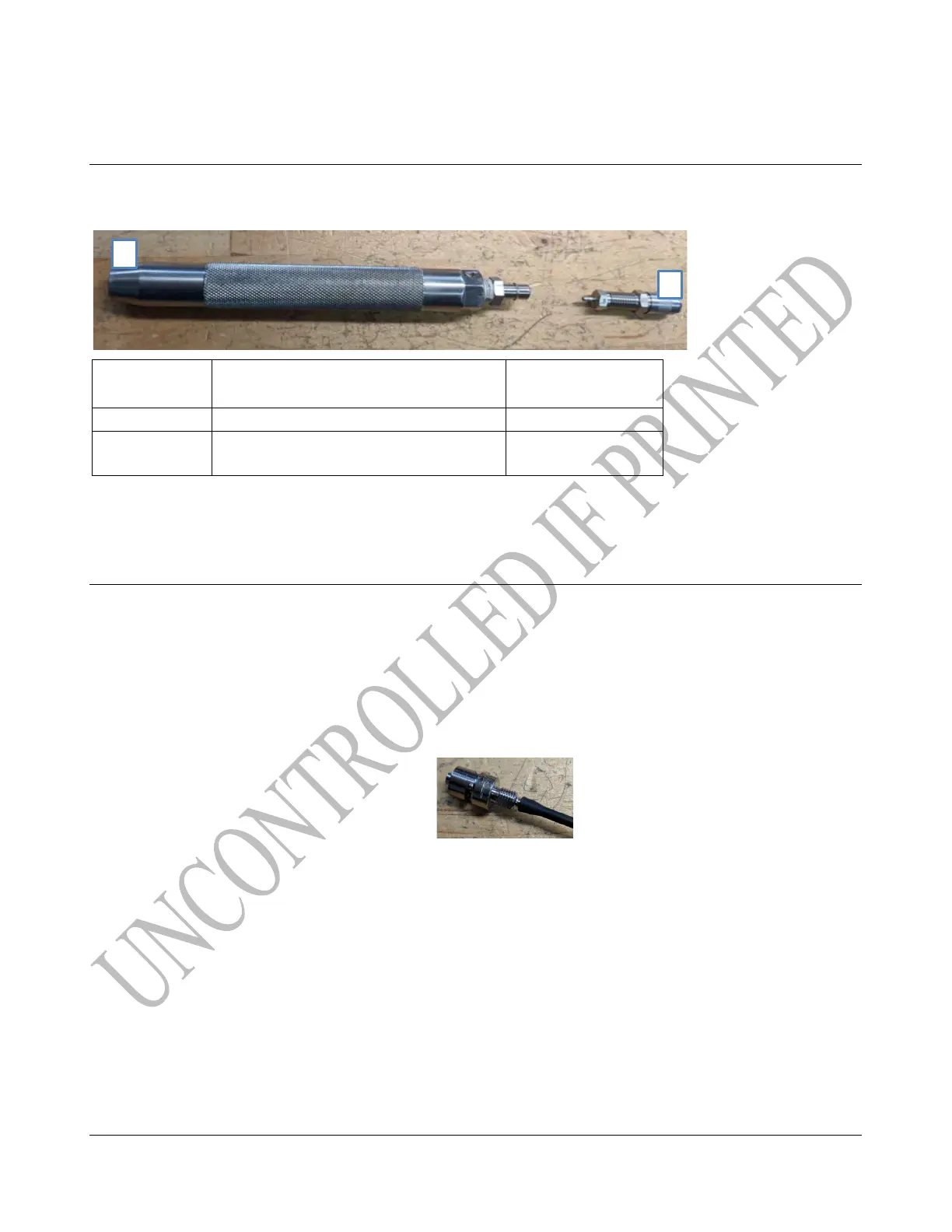

Picture ID
Part
LDAR Part #
A
Handle
42081
B
Quick Disconnect and 10-32 to
1/16ID Barb
42092/42916
A
B
