4. Tighten the Male Luer Bulkhead into the Handle first with your fingers and then giving it a
last gentle tightening with the Clamping Pliers by gripping the fitting in the slot with the flats
of the pliers. Do not overtighten, doing so can mar or damage the fitting.

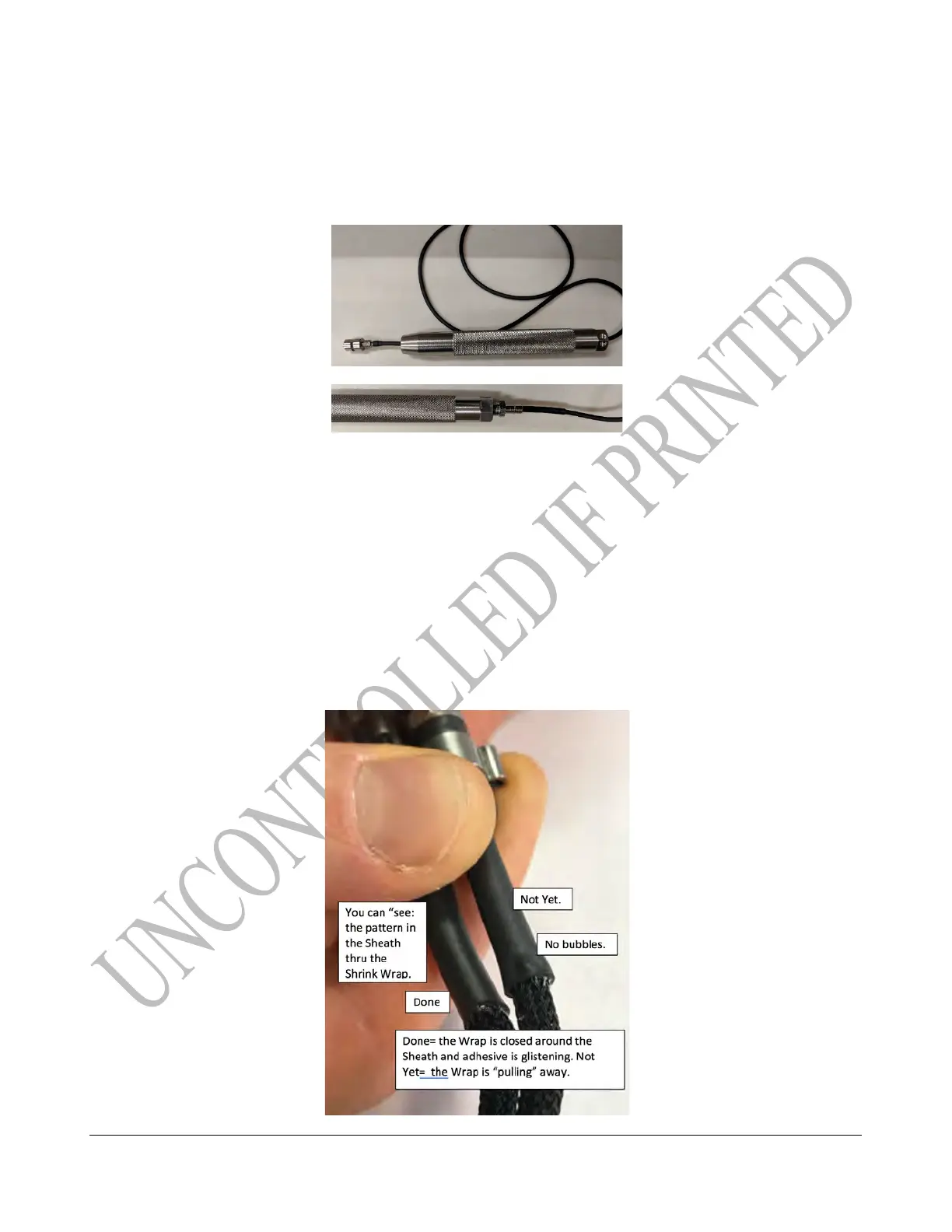

5. Slide 2 inches of the Small Heat Shrink (LDAR #42087) over the Tubing until about 1 inch
is inside of the Handle and about 1 inch is still visible.
6. Use the Heat Gun to shrink the Heat Shrink to the Tubing (this takes about 30-60 seconds).
TECH TIPS:
• Hold the heat gun about ½” from the surface of the heat shrink.
• Start at the edge of the heat shrink on Tubing side and work toward the applicable metal
fitting, rotating the tubing so that all sides are exposed to the heat gun.
• You will be finished when the heat shrink has grown smaller, starts to shine, and you have a
small excretion of adhesive at the Tubing side that is glistening.
