CS-D1008E Closed Loop Stepper Drive User Manual
Page | 13
Restart the power supply, if the drive is
still alarm, please contact after-sale
Disable auto-tuning function by
Leadshine MotionStudio software
a) The value of position following error
is set too small.
b) Motor torque is not enough, or motor
speed is too high.
c) Motor wiring error, check wiring
Contact after-sale
a) Power supply connection is wrong
When above protections are active, the motor shaft will be free or the red LED blinks. Reset the drive by repowering it
to make it function properly after removing above problems.
10. Software Configuration
The CS-D1008E is designed for simple setup and implementation. For most applications, no software configuration or
tuning is needed especially when driving Leadshine stepper motors with encoders (see Appendix A). If you want to do
fine tuning or custom configurations such as micro-step, current percentage change…, you can use Leadshine’s free
MotionStudio software to make the changes.

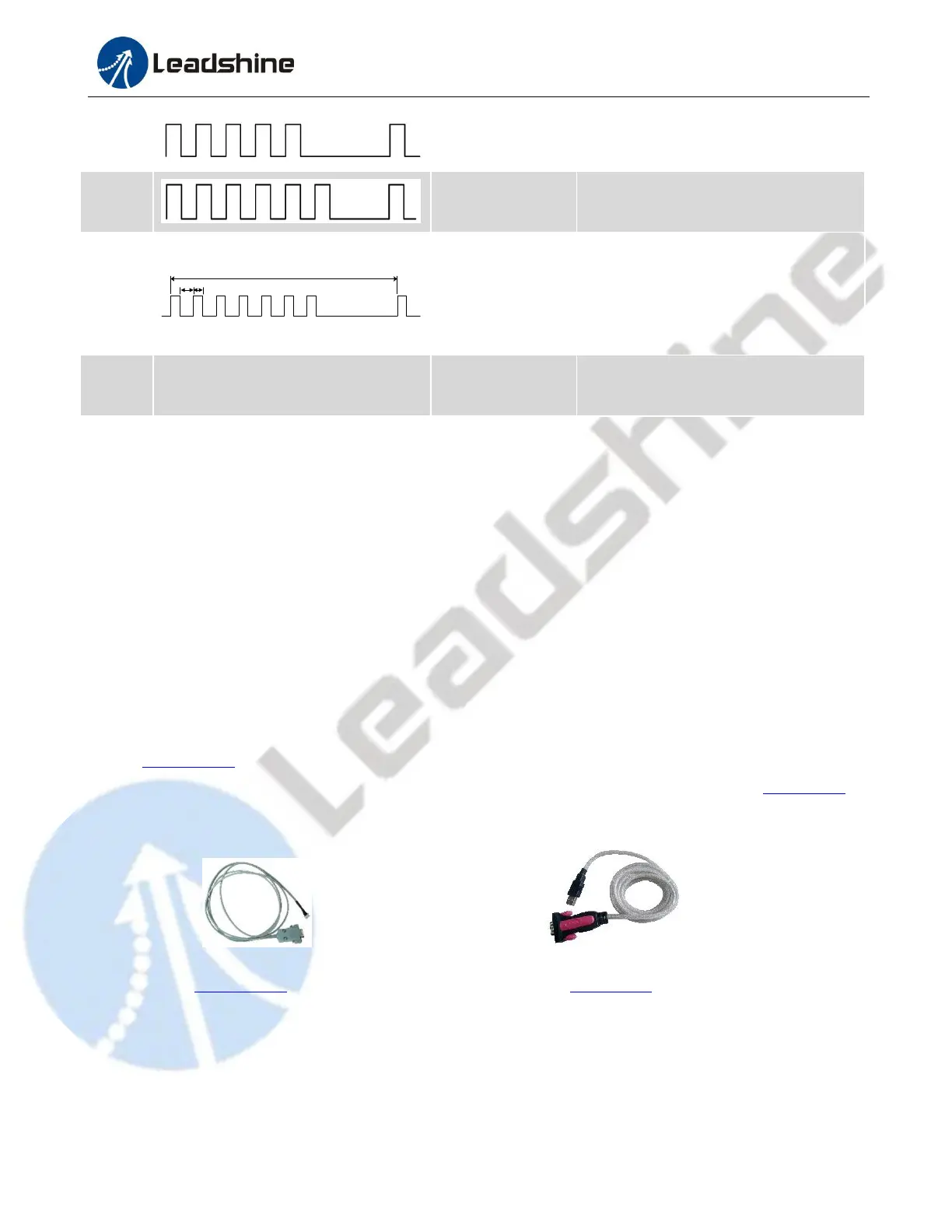

11. Accessories
If you plan to use the Leadshine software, contact your supplier or Leadshine to purchase the RS232 cable with part
number CABLE-PC-1 for connecting the CS-D1008E to a computer with Windows 7/8/10 installed. In the case of
using USB to RS232 conversion, contact your supplier or Leadshine for such a cable with part number USB2.0-232
which has been verified working fine.
CABLE-PC-1 USB2.0-232
(RS232 tuning cable) (USB to RS232 Conversion Cable)
To Next Page
