CS-D1008E Closed Loop Stepper Drive User Manual
Page | 3
2.3 Mechanical Specifications
(unit: mm [1inch=25.4mm])

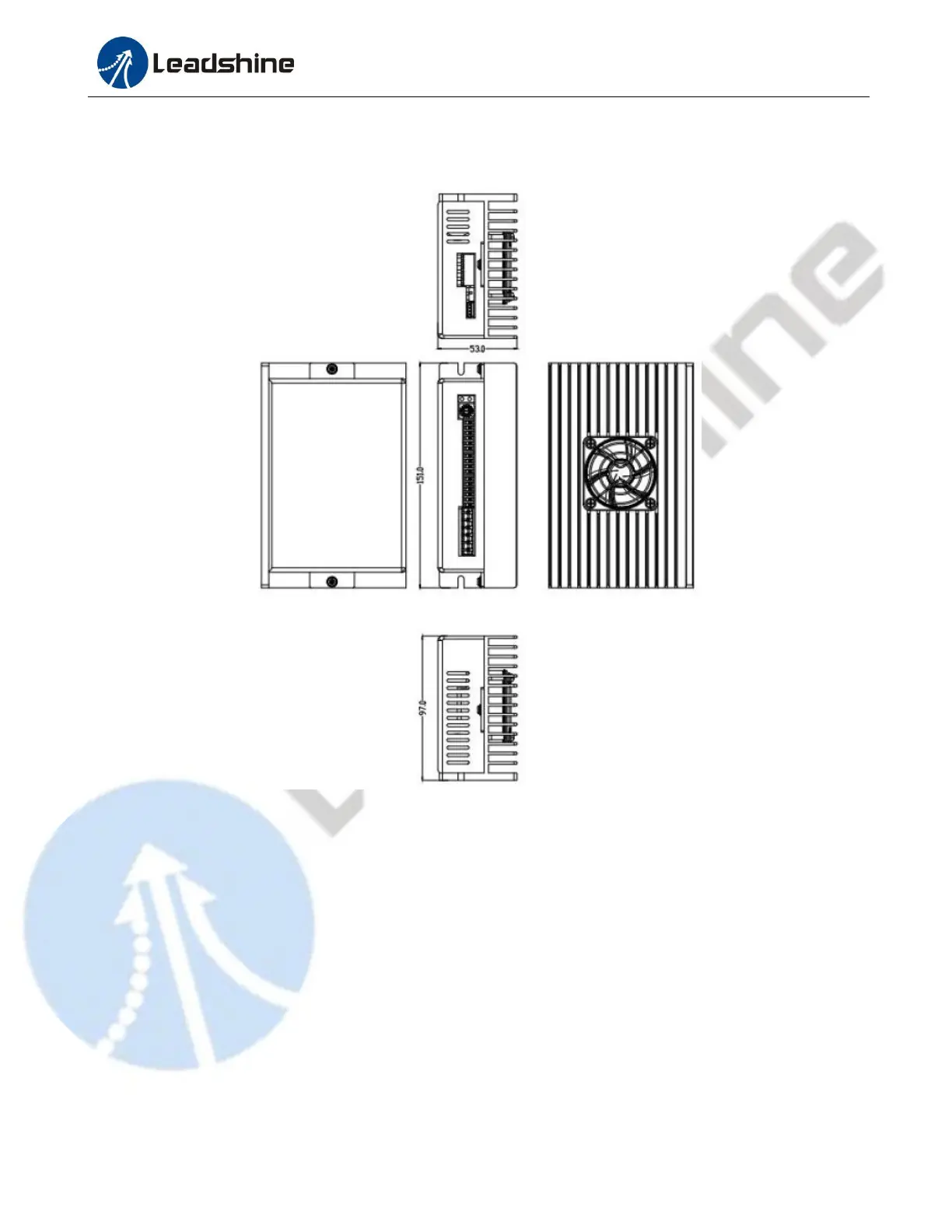

Figure 1: Mechanical specifications
2.4 Heat Dissipation
Temperature of the drive during working should be no more than 65℃ (149°F)
It is recommended to mount the drive vertically to maximize heat dissipation. Mount a cooling fan nearby if
necessary.
If multiple CS-D1008E drives are installed, it is suggested to keep a minimal 30mm (1.2 inches) between two of
them.
