Leadshine CS-D403 - Typical Control and Fault Output Connections

CS-D403 Closed Loop Stepper Drive User Manual
Page | 6

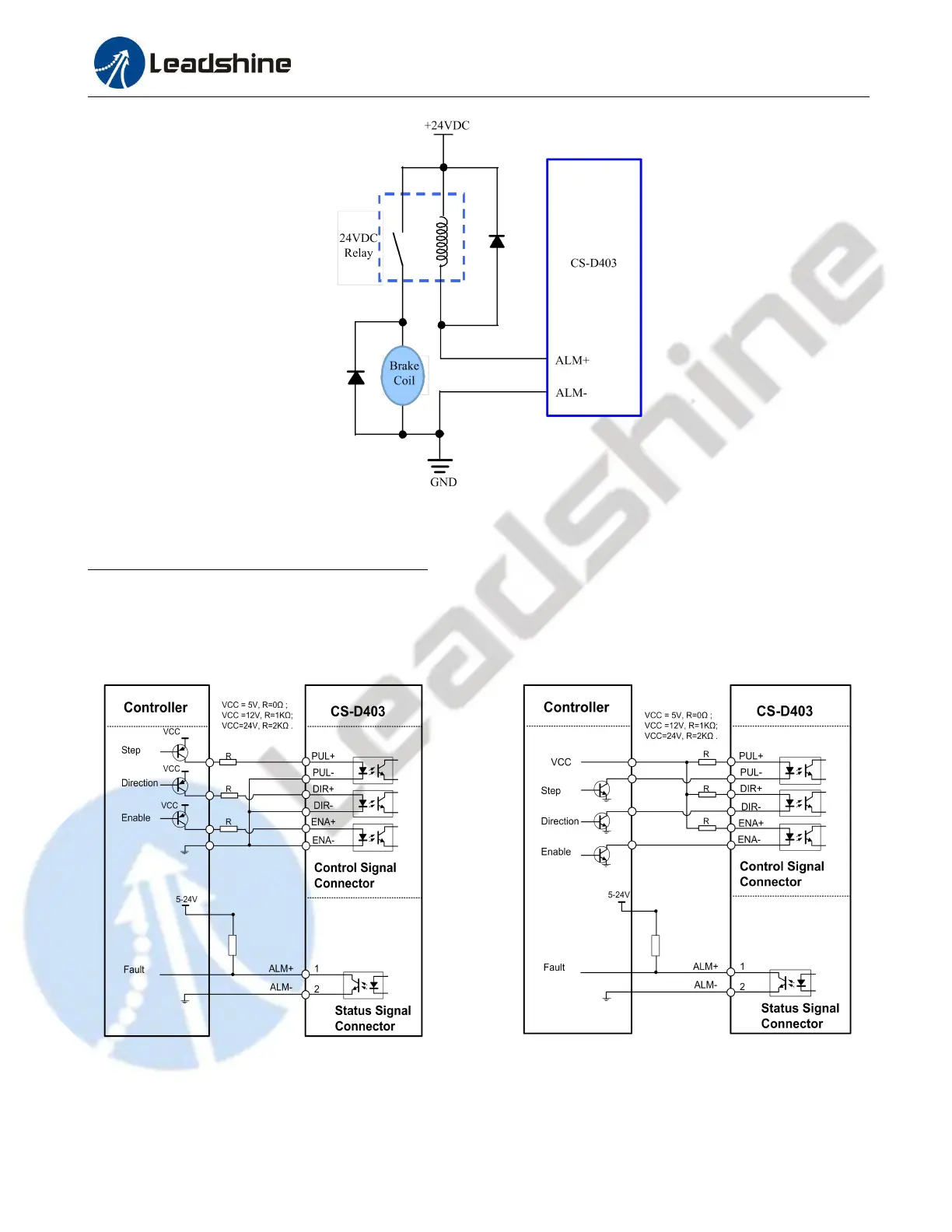

Figure 3: Brake Output Connection
3.1.2 Typical Control and Fault Output Connections
The CS-D403 can accept differential and single-ended control signal inputs (open-collector and PNP output). A
CS-D403 has 3 optically isolated control inputs, PUL, DIR, and ENA. Refer to the following two figures for
connections of open-collector and PNP signals.
Figure 4: Connections to PNP signal Figure 5: Connections to open-collector signal
(Common-cathode) (Common-anode)
