LeCroy WaveJet 300A series Quick Reference Guide

3

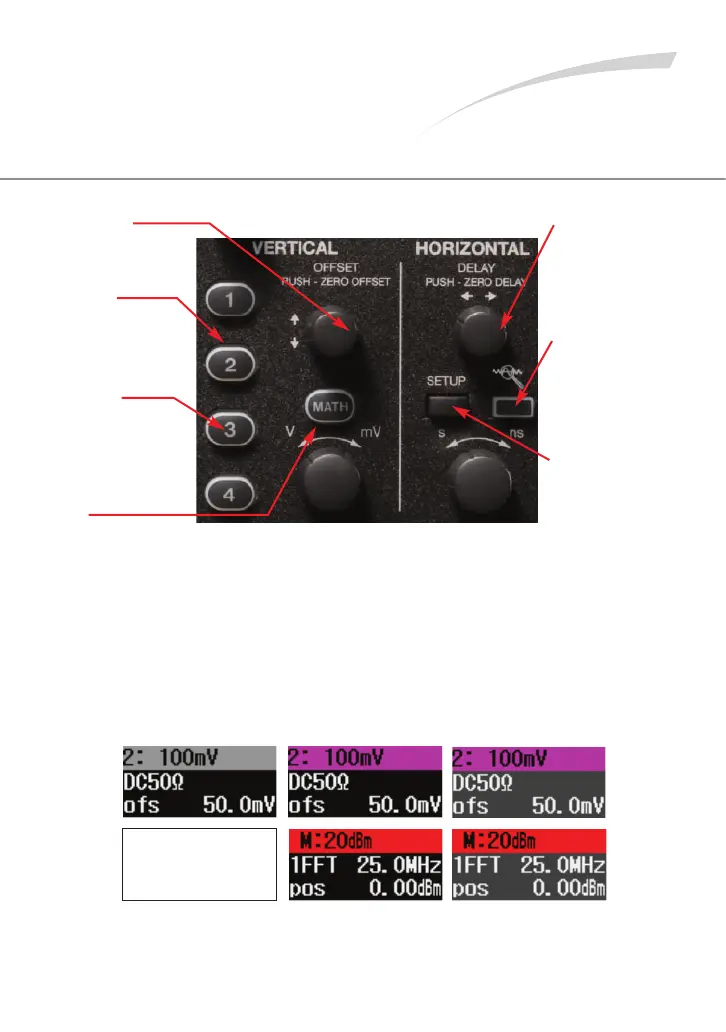

Vertical and
Horizontal Controls
Press Knob
to toggle between
zero delay and new
setting.
Light On
Indicates that the
vertical controls will
adjust that channel
(the active channel).
Light Off
Channel may or may
not be displayed,
vertical channels will
not adjust that
channel.
Math
Turns on the Math
trace and accesses
the Math menu.
Press Knob
to toggle between
zero delay and
new setting.
Quick Zoom
Press to turn on
zoom traces in
a separate grid.
Setup
Press to access
the Timebase
Setup menu.
If All Channel Lights are Off
Then the horizontal and vertical controls are “active” for a Math trace
or zoom trace. If the Zoom light is on then the horizontal controls will
adjust the zoom trace. If the Math light is on both the horizontal and
vertical controls will adjust the Math trace.
Math descriptor is
not displayed when
trace is turned off
Trace Off Trace On Trace Active
