Using Cursors
5
Using Cursors
Use the Adjust knob
to position the cursors.
Press the knob in to
select between cursors
or to set the two cursors
to track together.
Press to turn cursors
on, toggle through
the cursor types, and
then turn the cursors
off. Choose between
Time, Amplitude,
Time & Amplitude,
and Value at Cursor.
When light is on the
Adjust knob controls
the cursor position.

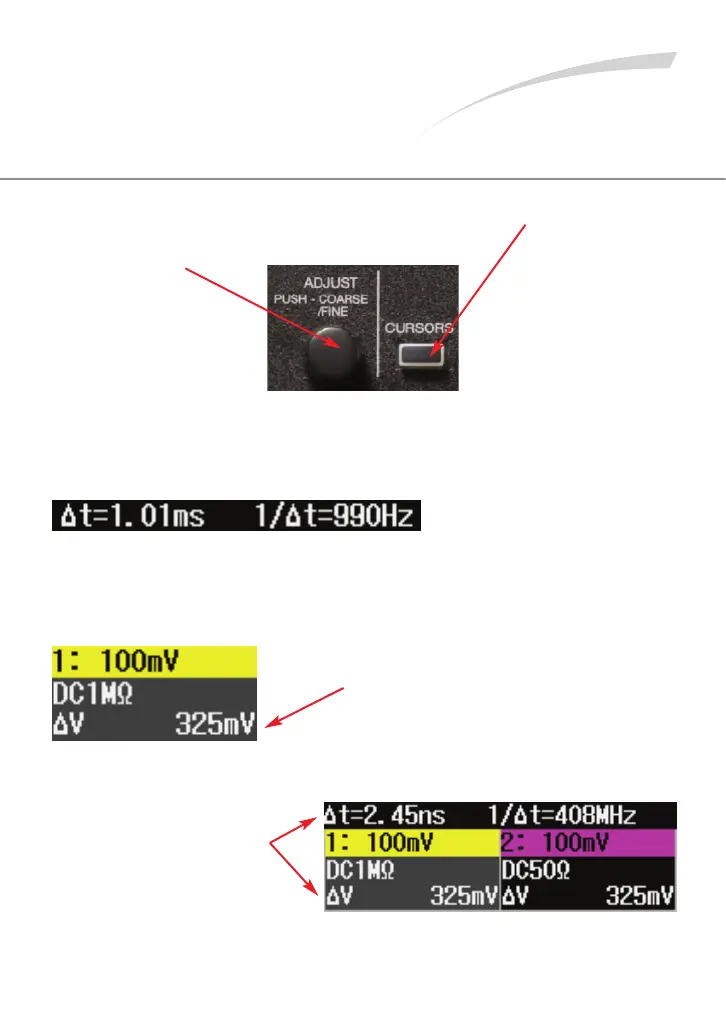

Horizontal cursor information is located in the bottom
status bar directly below the waveform grid.
Vertical cursor information is located
in the trace descriptor.
When Time & Amplitude cursors
are used the readout is displayed
for both cursor types.
