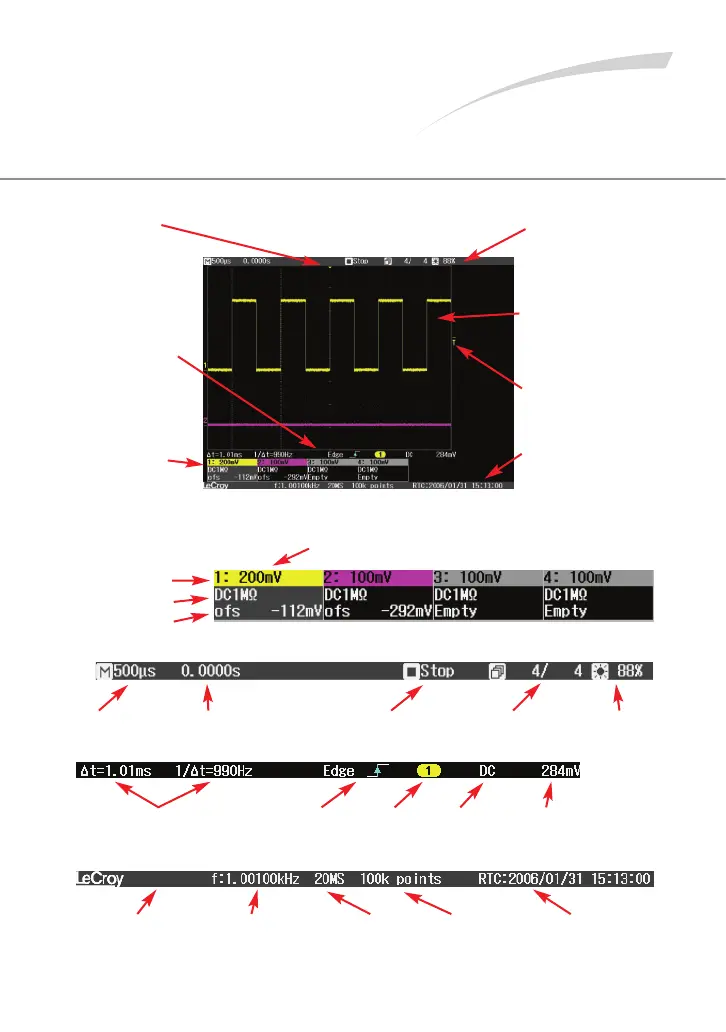

Understanding
Display Information
Trigger Position
Indicator
Color coded to the
triggered signal. Zero
delay is the center of
the grid.
Bottom Status Bar
Displays important
information about the
trigger and cursors.
Trace Descriptors
Displays Volts/Div,
Offset, and Coupling
of each channel and
math trace.
Top Status Bar
Displays important
information about the
acquisition mode and
timebase settings.
Grid Area
Portion of the display
where waveforms are
shown.
Trigger Level Indicator
Color coded to the
triggered signal.
Message Line
Provides information
about the sample rate,
memory length, and
frequency counter.
Trace Descriptors
Top Status Bar
Bottom Status Bar
Message Bar
Volts/Division
Channel Coupling
Channel Number
Offset
Time/Division Trigger Delay Trigger Status Sweep Counter
Intensity
Cursor Readouts
Trigger
Type
and Slope
Trigger
Source
Trigger
Coupling
Trigger
Level
Message Section
Any necessary
message will be
displayed here
Frequency
Counter
Displays frequency
of triggered signal
Sample Rate
Number
of Sample
Points
Clock Readout
Choose between
Real Time Clock and
Trigger Time Stamp
