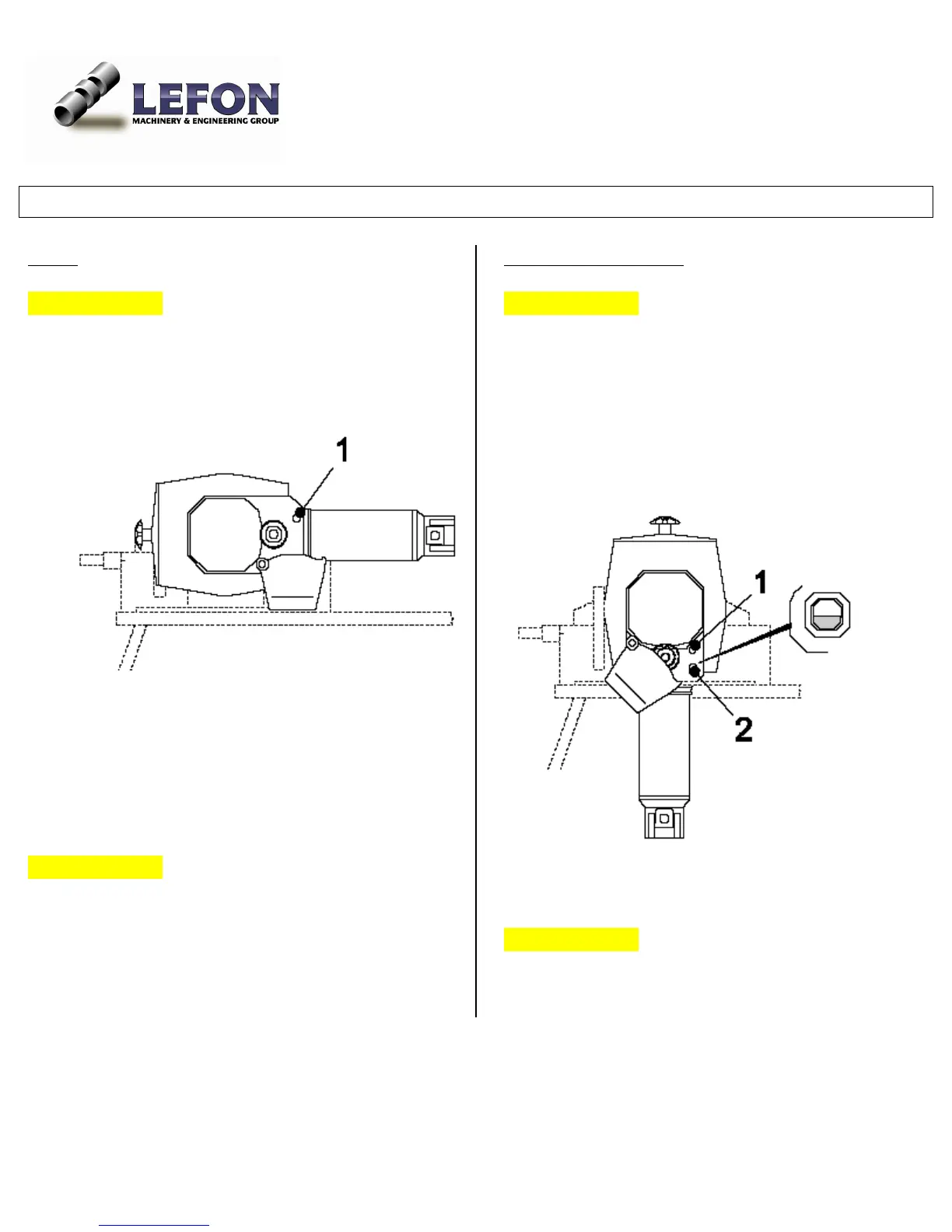

Gear oil level check and change
For R2
Important Notice: The pipe cutter must be mounted on
the working bench when checking oil
• Turn the motor 90° counterclockwise
• Remove the oil filler screw(1)
• If no oil runs out of the filling opening, top up
with special LEFON gear oil or the equal
• Replace and tighten the oil filler screw
Important Notice: The oil will has to be topped up if an
RA H intermediate gear is fitted
For R4, R6, R8, and R12
Important Notice: The gears of pipe cutters R4 to R12
have an oil level inspection tube. The oil level should be
visible in the middle of the inspection tube glass.
• Check the oil level at the inspection tube
glass(20 and top up if necessary
• Unscrew the oil filler screw (1). Fill with special
LEFON gear oil for the equal.
• Replace and tighten the oil filler screw
Important Notice: The oil will has to be topped up if an
RA H intermediate gear is fitted
