Operation Manual Page 11 of 27
Section 4: Operation Procedure
Danger of death or injury caused by electric shock
• Disconnect power before transporting, mounting
or dismounting.
• The cable must not contact rotating ( moving)
parts of this cutting machine
Danger of being injured by sharp cutting edges
• Keep hands off the machine when mounting or
changing the machine
• Wear safety gloves and goggle
Damage to material
• The saw blade or beveling cutter must be free of
chips and dirt
• Use only LEFON saw blades and beveling cutter
• When deploying an additional cutter, only use
the special LEFON clamp washer, not the normal
clamp washer
• Press the saw blade guard down by maximum 90
degree
• Mount the saw blade/beveling cutter or
additional cutter with the inscription facing
operator. Then the teeth will be pointing to the
correct direction.

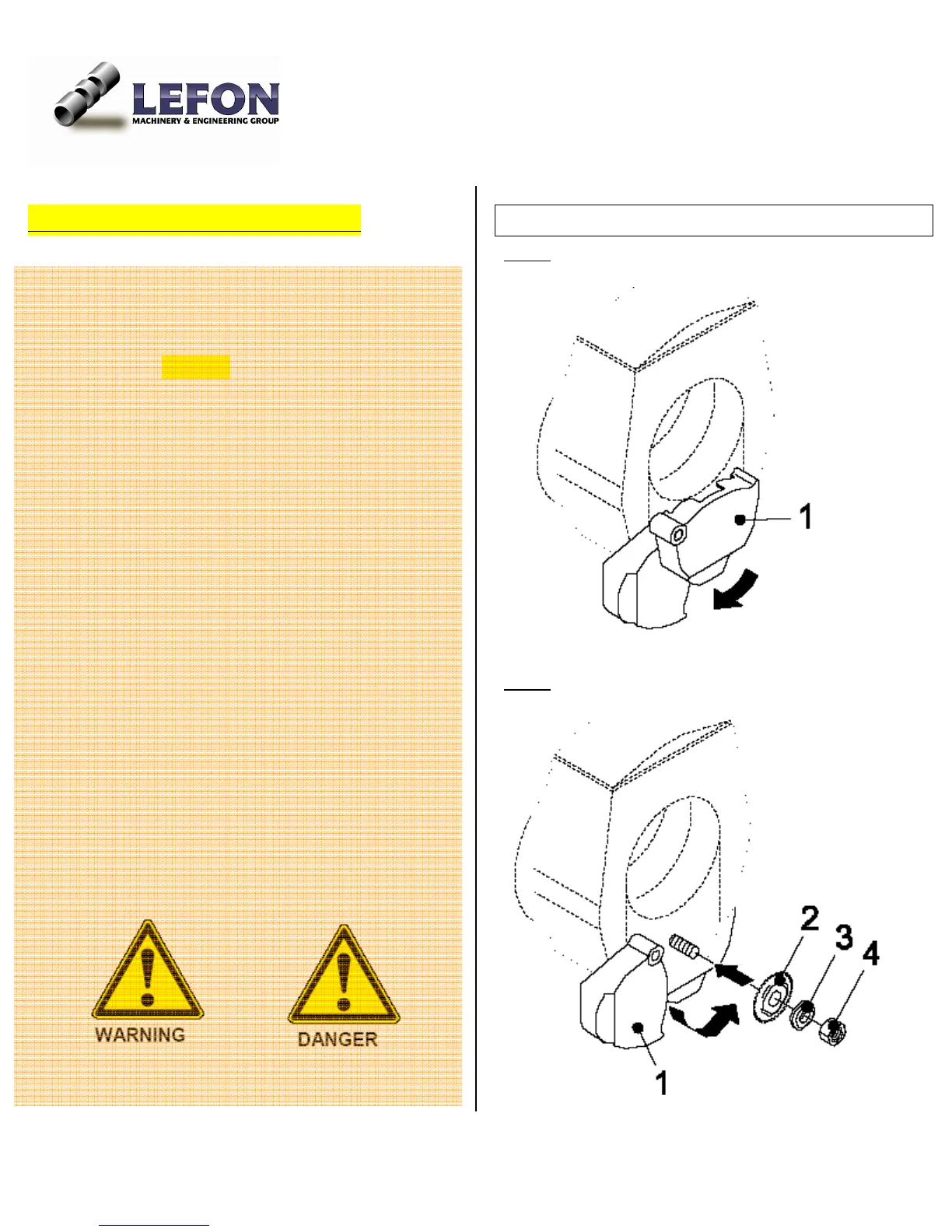

Install the saw blade/beveling cutter
Step 1: Turn the saw blade guard (1) down for approx
90°.
Step 2: Loosen the hexagon nut (4). Remove the
clamping plate (3) and the saw blade (2).
