Operation Manual Page 16 of 27

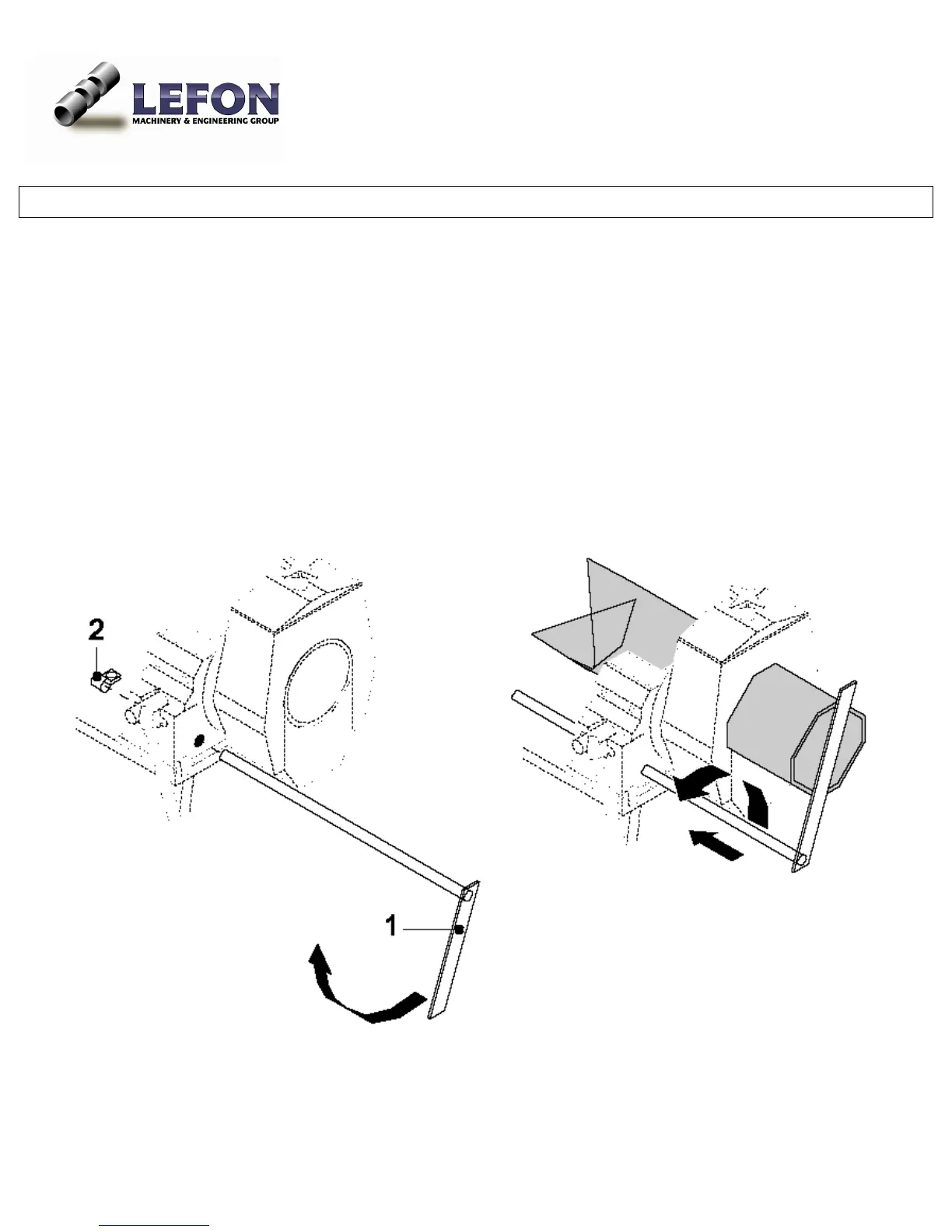

The usage of Cut-off Stop
A length gauge (cut-off stop) is available as an optional accessory for fabricating pipe sections of equal length (except
R12). Below is the instruction how to use the cut-off stop.
1. Mount the cut-off stop (1).
2. Swivel the cut-off stop to the middle of the pipe
3. Use a ruler to decide the desired length.
4. Move the clamp (2) towards the housing and turn it so that it rests on the work bench.
5. Tighten the clamp (2).
6. Move the pipe forward up to the cut-off stop and clamp it into place.
7. Swivel the cut-off stop outward and push it all the way back.
8. Cut the pipe ( refer to instruction on next pages)
9. For the next cut, extend the cut-off stop and swing it into place clockwise.
