LEGRAND D45 SYSTEM User Manual

110
322030 322031 322032 322033322010
322011
322020 322021

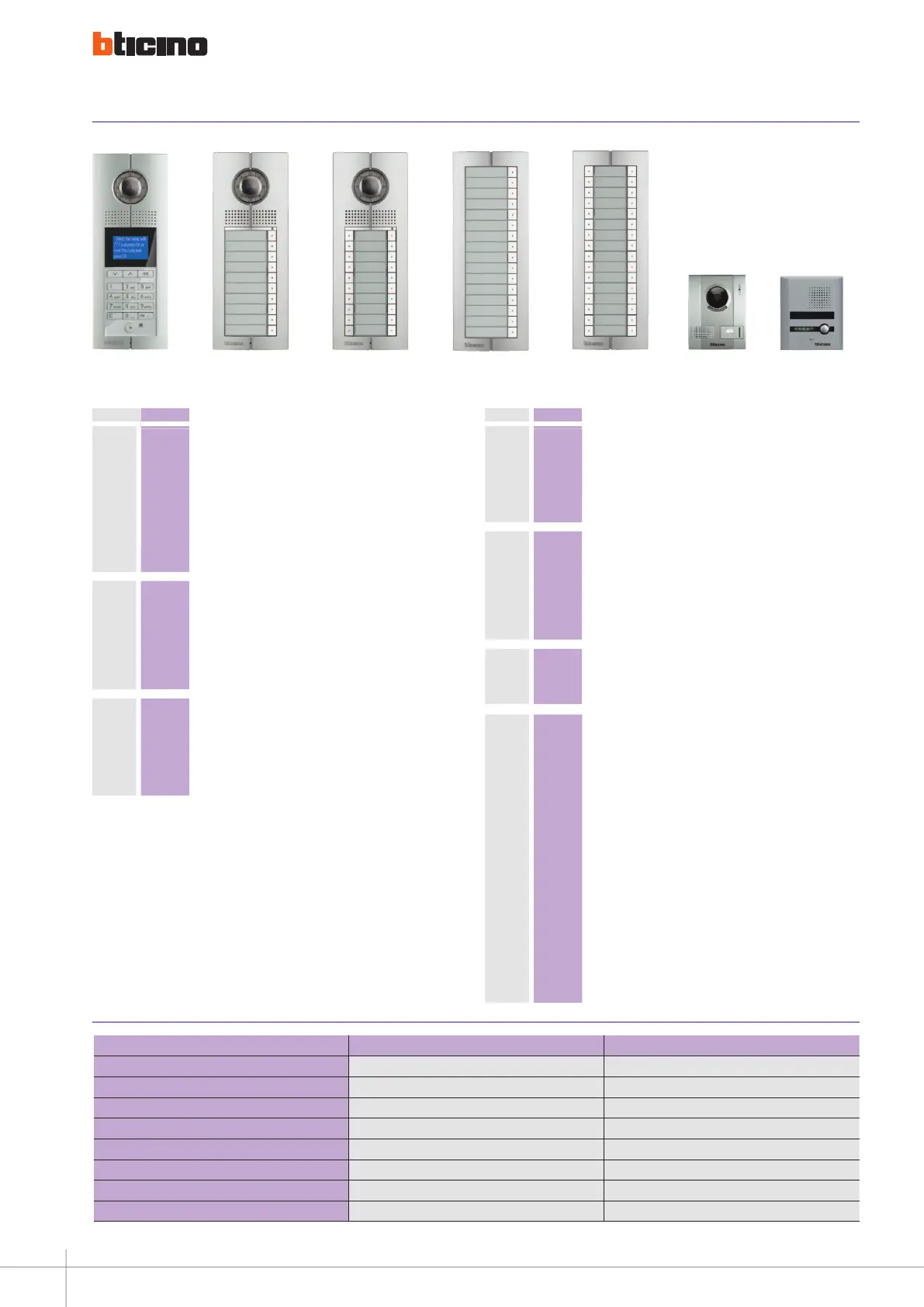

Pack Cat.Nos
Digital calls colour entrance panels
Zamak digital call street panel with keyboard,
LCD display and colour camera
Equipped with door lock release and burglar
alarm notification
Configuration screen menu and software
upgrade without the need to dismantle the
device
Flush-mounting installation (flush-mounting box
sold with the street panel)
1
BT-322010
Without addresses list
1
BT-322011
With addresses list
Nameplate module
1
BT-322012
Zamak nameplate module to install at the side
of the digital call street panel Cat.No BT-322011
to insert the list of residents or customised
messages
Easy insertion / replacement of nameplates
Flush-mounting installation (flush-mounting box
supplied)
Pushbutton call colour street panels
Zamak pushbutton street panel with
pushbuttons colour camera. Flush-mounting
installation
(flush-mounting box supplied)
1
BT-322030
With 10 call pushbuttons
1
BT-322031
With 20 call pushbuttons
Pack Cat.Nos
Additional pushbutton module
Additional Zamak pushbutton panel with
pushbuttons on single column
Easy insertion / replacement of nameplates
Flush-mounting installation (flush-mounting box
supplied)
1
BT-322032
With 16 call pushbuttons
1
BT-322033
With 32 call pushbuttons
Single call small entrance panel
1
BT-322020
Aluminium alloy single call small street panel to
be installed in one-family systems or as private
street panel in multifamily systems
Touch-sensitive pushbutton for calling indoor
handsets and direct conversation
Double verified intercom calls
Surface-mounting
Floor call entry panel
1
BT-322021
Plastic single call small panel to be installed in
one-family system
Surface mounting
1 module
1
BT-322001
Box for street panel wall-mounting installation
Rainshield integrated
Compatible with Cat.No:
- BT-322010 (digital street panel)
- BT-321011 (digital street panel with address
list)
- BT-321030 (10 pushbutton street panel)
- BT-321031 (20 pushbutton street panel)
2 modules
1
BT-322002
Box for street panel wall-mounting installation
Rainshield integrated
Compatible with Cat.No:
- BT-322010 (digital street panel)
- BT-321011 (digital street panel with address
list)
- BT-321030 (10 push button street panel)
- BT-321031 (20 push button street panel)
- and one expansion module:
BT-321012 (targa module) or BT-321032 (16
pushbutton extension) or BT-321033 (32
pushbutton extension)
D45 System
entrance panels
MODEL NAME CODE NUMBER DIMENSIONS (mm)
Entrance panel with call address list 322011 325 x 125 x 44,5
Small entry panel color 322020 141 x 108 x 31
Floor call entry panel 322021 152 x 104 x 25
10 Call pushbuttons entrance panel 322030 325 x 125 x 63
20 Call pushbuttons entrance panel 322031 325 x 125 x 63
16 Additional pushbuttons panel 322032 325 x 125 x 44,5
32 Additional pushbuttons panel 322033 325 x 125 x 44,5
Targa module 322012 325 x 125 x 44,5
Dimensional data
