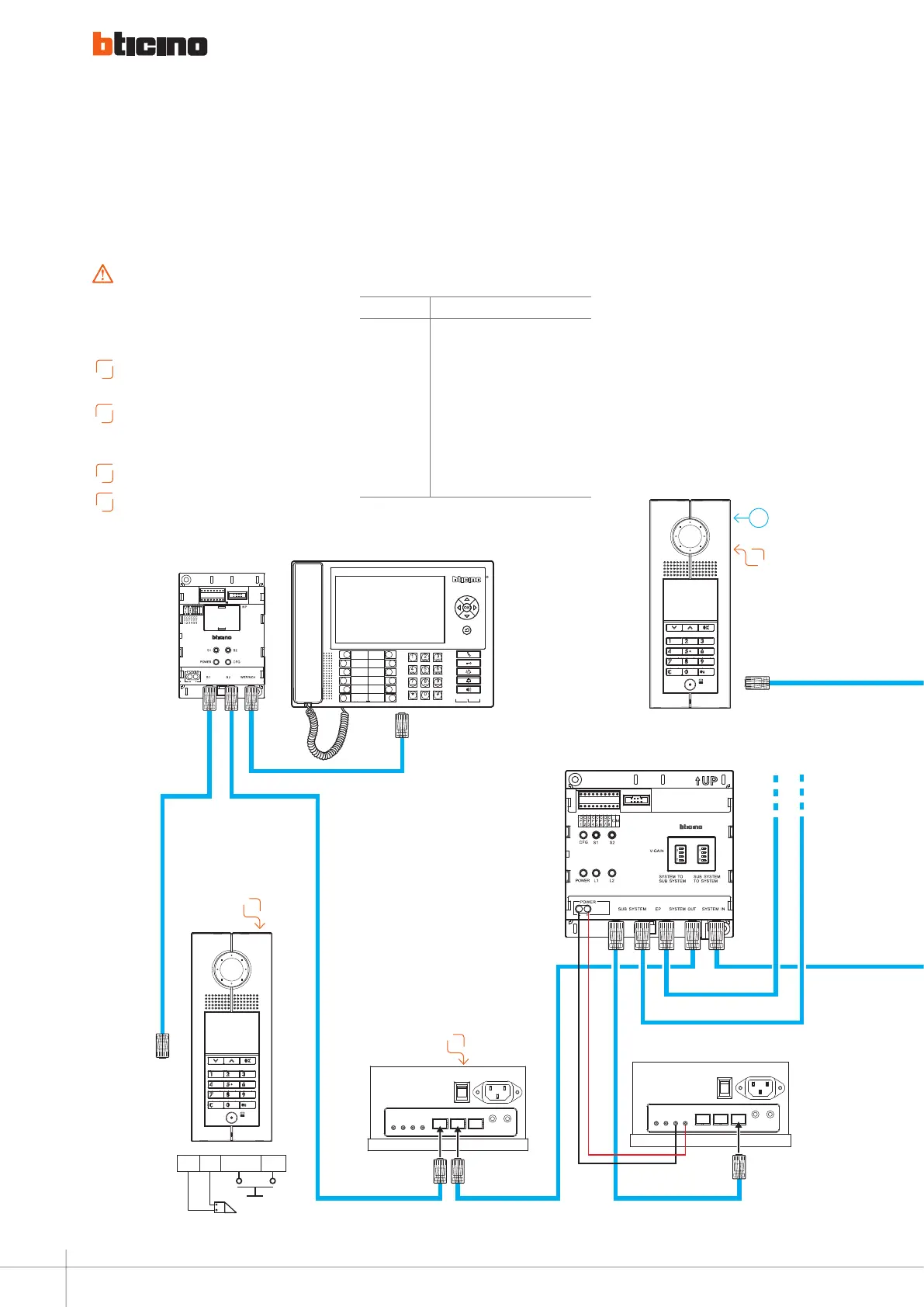

Diagram 4
backbone system witH 1 main entrance panel and porter switcHboard 323001
A
To install alternative internal units, refer to
wiring variant section.
B
To install alternative Entrance panel, refer to
wiring variant section. Device configuration by SF2
software.
C
Set internal IMPEDANCE SWITCH to ON.
D
Auxialiary PWS must be used in relation with the system
distance extension - see specific section.
NOTE: see connection variants.
Configure and insert the jumpers with the system
SWITCHED OFF. Also every time the configuration is
modified the pws must be switched OFF and ON again,
waiting about 1 minute.
WARNINGS:
ITEM DEscrIPTION
322011
Digital call entrance panel
323005 Main & Auxiliary power supply
323003 Riser shunt
323002 Floor shunt
321070 7" Touch screen internal unit
323018 Entrance panel / switchboard shunt
L1 Electric door lock 12V - 4A impulsive
PB Door lock release pushbutton
323001 Porter switchboard
Entrance panel
Floor shunt 323002
WIRING DIAGRAMS
