LEGRAND D45 SYSTEM User Manual

Pack Cat.Nos
System accessories
Floor shunt
1
BT-323002
This is used to convert video signals on the BUS
to transfer mode and then distribute them to the
connected internal units; To be installed between
floors; Each floor shunt can be connected to 4
internal units; DIN rail installation
One-output floor shunt
1
BT-323022
Interface to be installed between floors
Connects all the system BUS adapting video signal
from difference ended into a single ended and
distribute the BUS to the extensions indoor unit
Build in a small plastic case to be installed easily
inside the system junction boxes
Riser shunt
1
BT-323003
Used to connect the riser BUS and system BUS in
order to obtain BUS separation
Transfer signals and switch between video and
audio channels
Video transfer distance can be increased by
setting the gain adjustment dip switch
DIN rail installation
Entrance panel video mixer
1
BT-323004
Device can mix signals coming from 5 entrance
panels
Video transfer distance can be adjusted by
setting the gain adjustment dip switch; DIN rail
installation
Power supply
1
BT-323005
System power supply unit able to supply
power on the data communication cable and
simultaneously provide impedance matching
for the audio channel; Protected against short
circuits: in case of DC output short circuit, the
device will switch to protected mode. Once the
problem has been resolved, it will return to normal
status automatically
Can also be set up to operate as an auxiliary
power supply; Wall-mounting
2-way video splitter
1
BT-323007
Device splits the BUS signal into two channels
where the video signal can only be transferred
from input to output. Provides compensation
to the two channels separately and adapts the
video signal output from the street panel for
different distances via settings. Mainly used in
riser systems to divide the riser, BUS into several
channels to adapt the cabling, DIN rail installation
Pack Cat.Nos
System accessories (continued)
Basic apartment interface
1
BT-323008
Device must be used in apartments with 2 or 3
internal units
Interface must be installed between the floor
shunt (Cat.No BT-323002) and the internal units
DIN rail installation
Apartment interface
1
BT-323009
Device used to expand the number of internal
units and add a small street panel
Each device can connect 5 internal units and 1
street panel, providing the intercom function and
call or monitor function of the street panel
DIN rail installation
Auxiliary power supply
1
BT-323010
Auxiliary power supply protected against short
circuits: in case of DC output short circuit, the
device will switch to protected mode
Once the problem has been resolved, it will
return to normal status automatically
Wall-mounting installation
D45/IP interface
1
BT-323011
IP interface which can be connected to the D45
SYSTEM and BTicino 2 wire/IP System in order
to create mixed installations
DIN rail installation

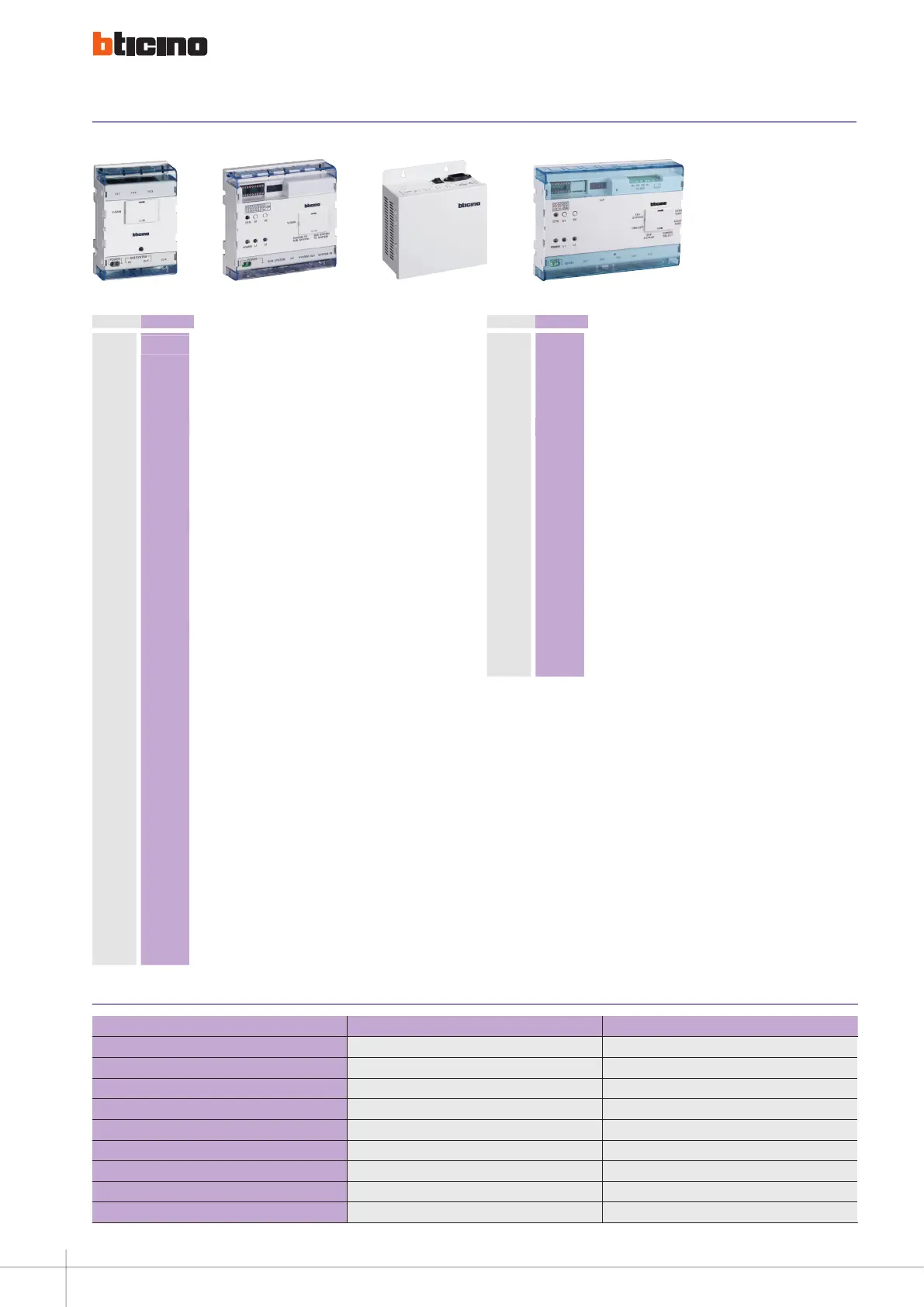

323002 323003 323005 323009
MODEL NAME CODE NUMBER DIMENSIONS (MM)
Floor shunt 323002 72 x 105 x 33
Riser shunt 323003 106 x 105 x 33
Entrance panel video mixer 323004 72 x 105 x 33
Power supply 323005 167,5 x 161 x 85
2 Branches video splitter 323007 72 x 105 x 33
Basic apartment interface 323008 72 x 105 x 33
Apartment interface 323009 141 x 105 x 33
Auxiliary power supply 323010 167,5 x 161 x 85
D45/IP interface 323011 90 x 175 x 60
Dimensional data
D45 System
system accessories
