136
321060
1
2
8
7
35 46
A C
B
A (mm) B (mm) C (mm)
165 158 29
9 10 11

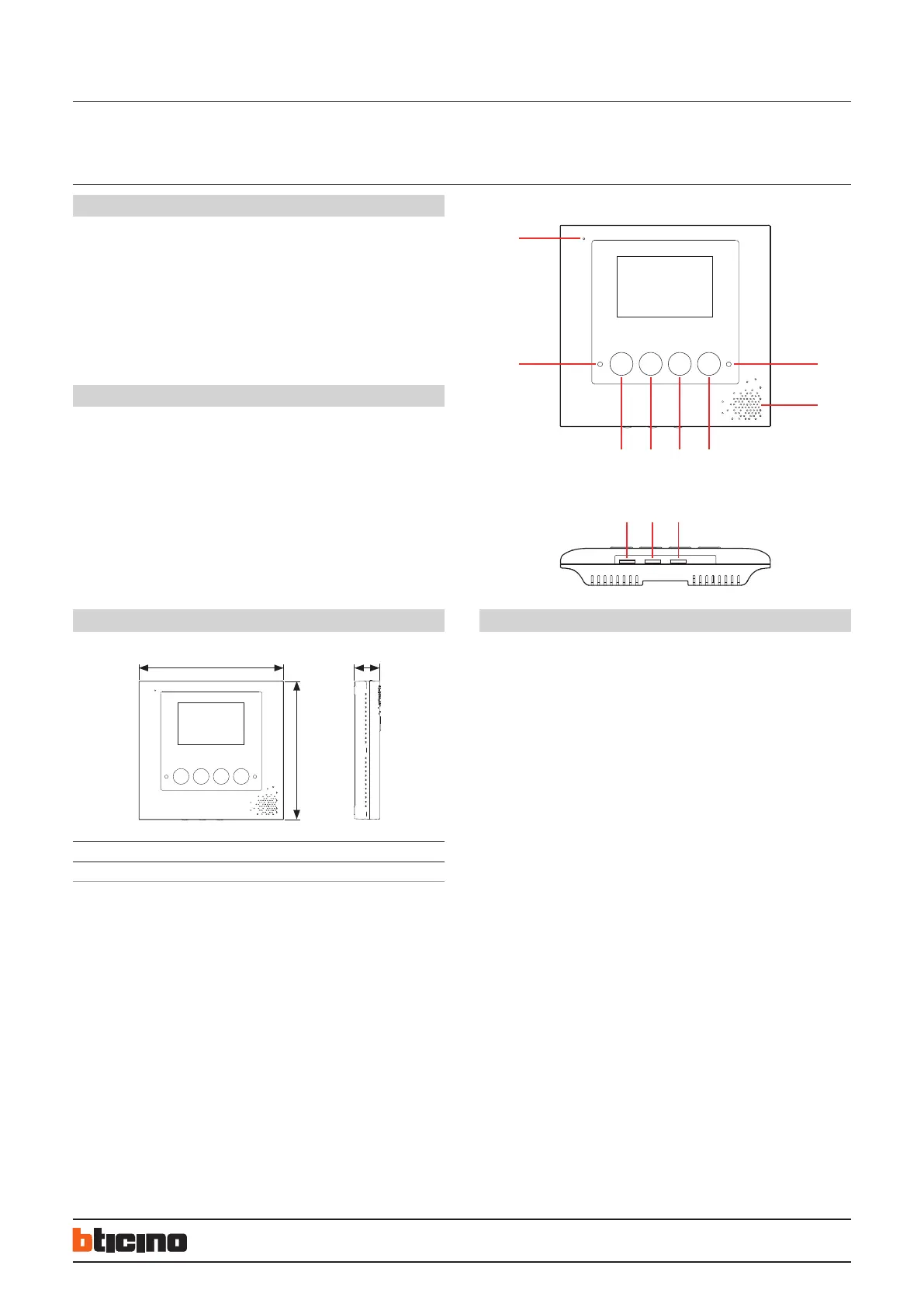

D45 System
Description
3.5 “ Colour handsfree internal unit
D45 System entry level colour handsfree internal unit with 3.5” LCD backlit display.
Complete door entry functions. Direct call to switchboard function. 12 ring tones
selectable for different call types. Surge protection. Wall mount installation.
Technical data
Power supply: 30 Vdc
Stand by absorption: ≤ 15 mA @ 30 V
Max. operating absorption: ≤ 85 mA @ 30 V
Operating temperature: (-10) – (+40) °C
LCD display resolution: 320 x 240
Dimensional data Legend
1. Connection status LED
2. Loudspeaker
3. Door lock activation key
4. Monitoring key
5. Call to the switchboard key
6. Audio connection activation/deactivation key
7. Information status LED
8. Microphone
9. Ring volume control knob
10. Display brightness regulation knob
11. Display colour regulation knob
Front view
Lower view
BT00764-a-EN 30/05/2013
