3.5 “ Colour handsfree internal unit
Configuration settings by device keyboard - WAY 2: MASTER and SLAVE settings
Configuration
FF : Floor number
II : Apartment number
#II : Maximum apartments quantity per floor in a riser
Configuration examples :
Example (A) :
The number of handsets is 1204, each floor has 4 handsets, the system configuration
mode is MODE 1, the handset configuration should be as follows:
Example (B) :
The number of handsets is 1206, each floor has 8 handsets. System configuration MODE
2 is used. The handset configuration should be as follows :
POSITION CONFIGURATION VALUE REMARKS
F 1
F 2
I 0 It is ok not to insert congurator 0
I 4
#I Because the default value of #II is 4, no
congurator is needed
#I
POSITION
VALUE REMARKS
F 1
F 2
I 0 It is ok not to insert congurator 0
I 6
#I 0 It is ok not to insert congurator 0
#I 8
Slave
Master

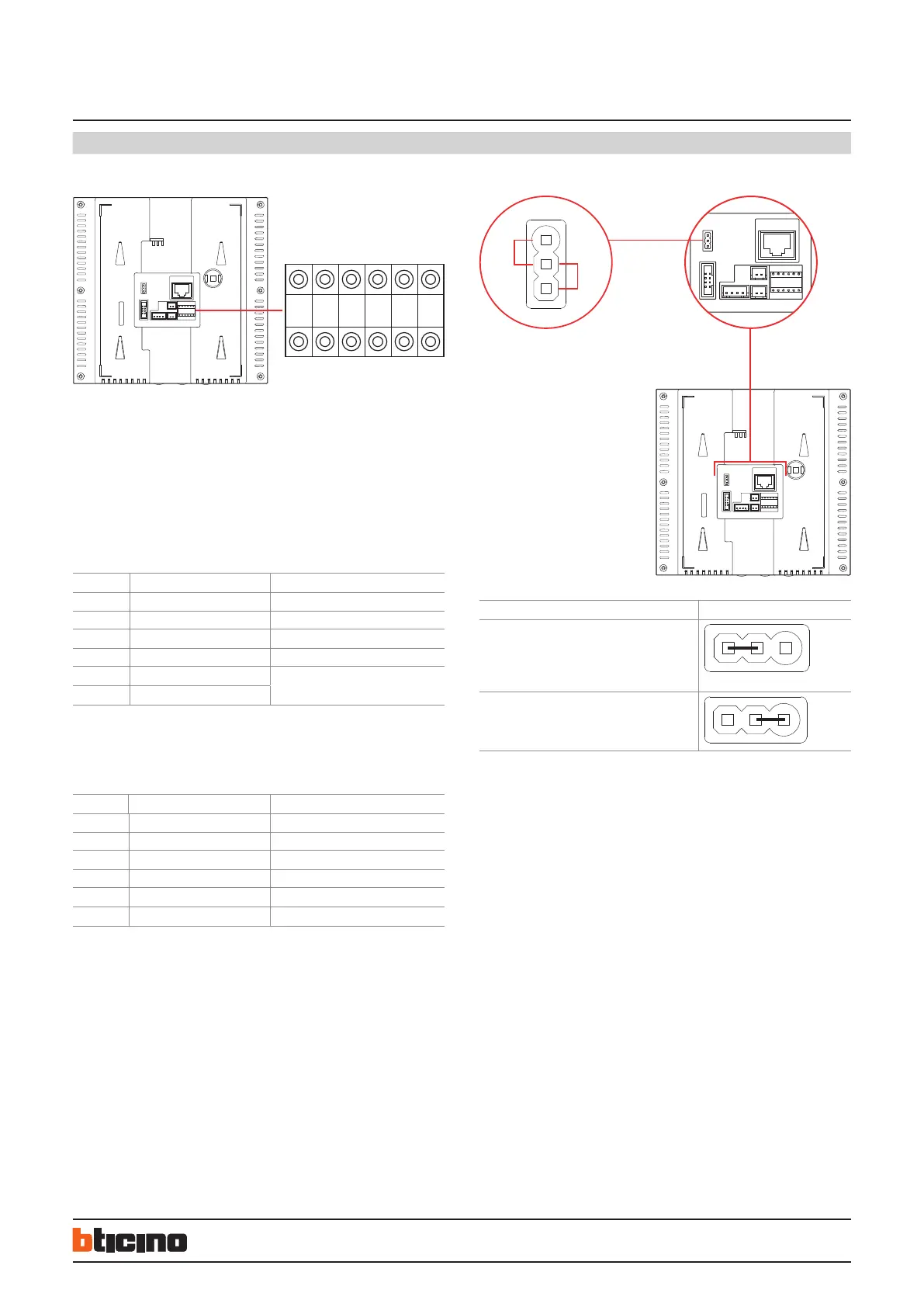

SET THE MASTER AND SLAVE HANDSETS METHODS
Set as the master handset
Or not jump
Set as the slave handset
