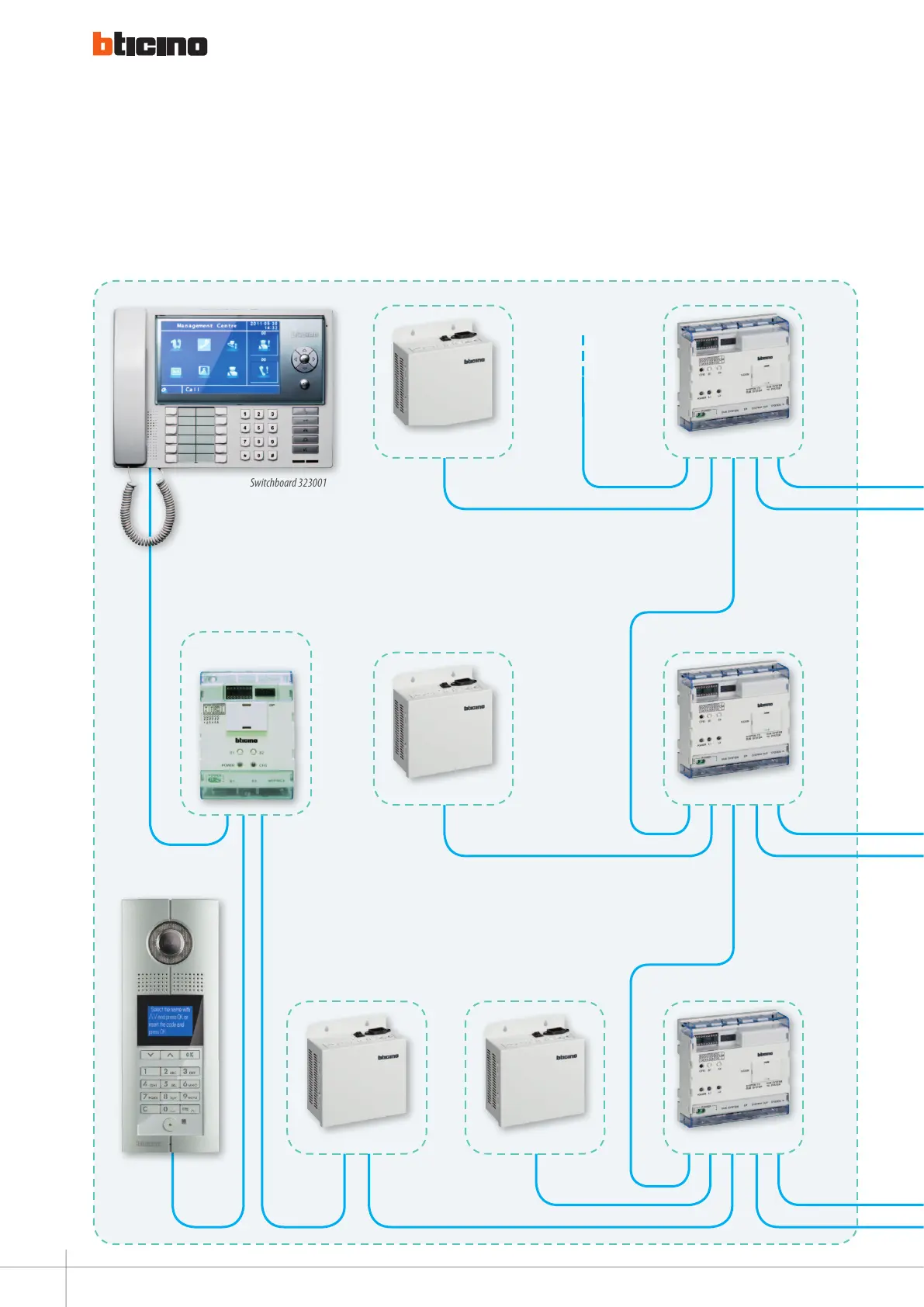

APARTMENT BLOCK WITH 1 MAIN ENTRANCE PANEL, MORE SECONDARY ENTRANCE PANELS AND
SWITCHBOARD
System composition
COMMON SYSTEM SECTION
Main entrance panel
Power supply 323005
Power supply 323005
To next
riser shunt
Power supply 323005
Power supply 323005
Switchboard 323001
EP/ Switchboard
shunt 323018
Power supply 323005
Riser shunt 323003
Riser shunt 323003
Riser shunt 323003
GENERAL FEATURES
