LEGRAND D45 SYSTEM User Manual

F F I I #I #I
1 2 0 6 0 8
GENERAL RULES FOR INSTALLATION

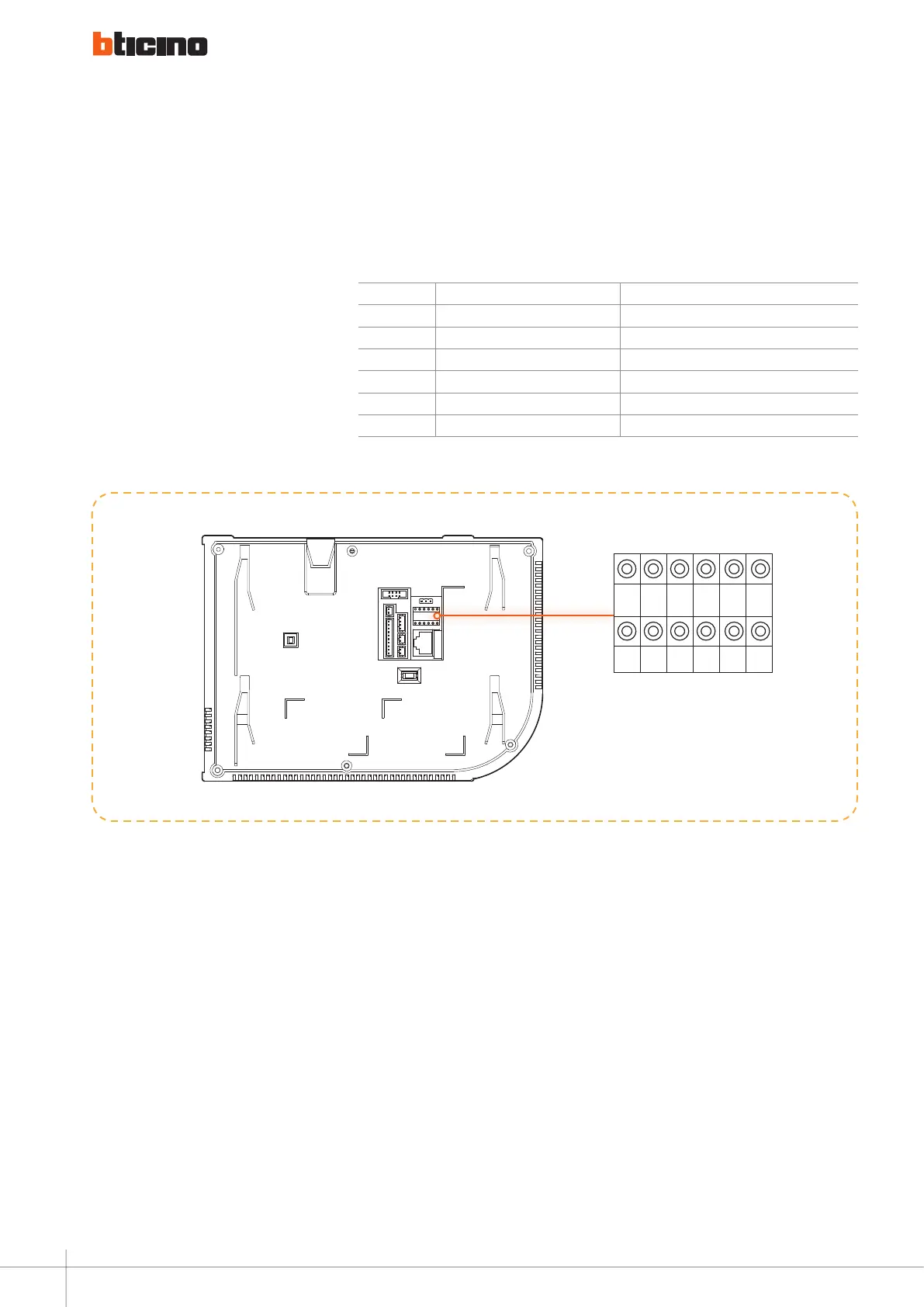

Example (B):
The number of handsets is 1206,
each floor has 8 handsets. System
configuration Mode 2 is used.
The handset configuration should
be as follows:
poSition Value reMarkS
F 1
F 2
I 0 It is ok not to insert congurator 0
I 6
#I 0 It is ok not to insert congurator 0
#I 8
B
Handset configuration examples
46
