Cable type 2 x 1.0 mm
2
Cable type 2 x 1.0 mm
2
Max distance ≤ 20 mMax distance ≤ 250 m
EP/WEP
LOCK
L-
L+
Power
supply
323015
Door lock release
GND
Power
30V
GND
GND
L- -L+
GENERAL RULES FOR INSTALLATION

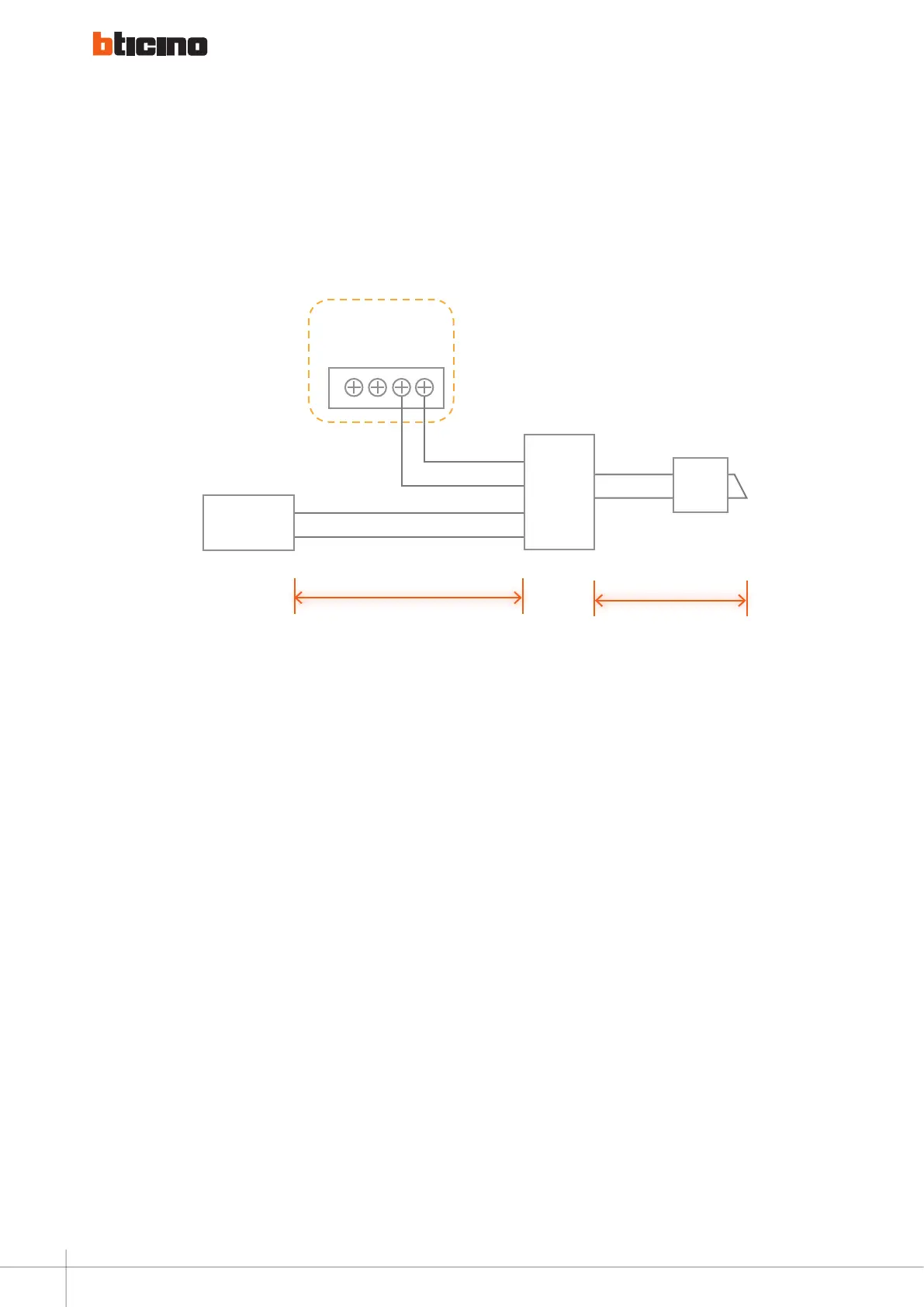

For this kind of door lock, an additional power supply must be used. The connection method is shown below.
The Power supply in the above
drawing is the system riser power
supply. It can be shared by the
riser shunt without the need for an
auxiliary Power supply.
The power supply is the auxiliary
EP power supply (in some cases the
riser has several EP.
In this case auxiliary power supply
will be needed; additional power
supply is also needed if the main EP
cable is too long).
The door lock accessory can be
directly connected to this power
supply without the need for an
additional one.
Lock type and distance limits
56
