58
DMX
3

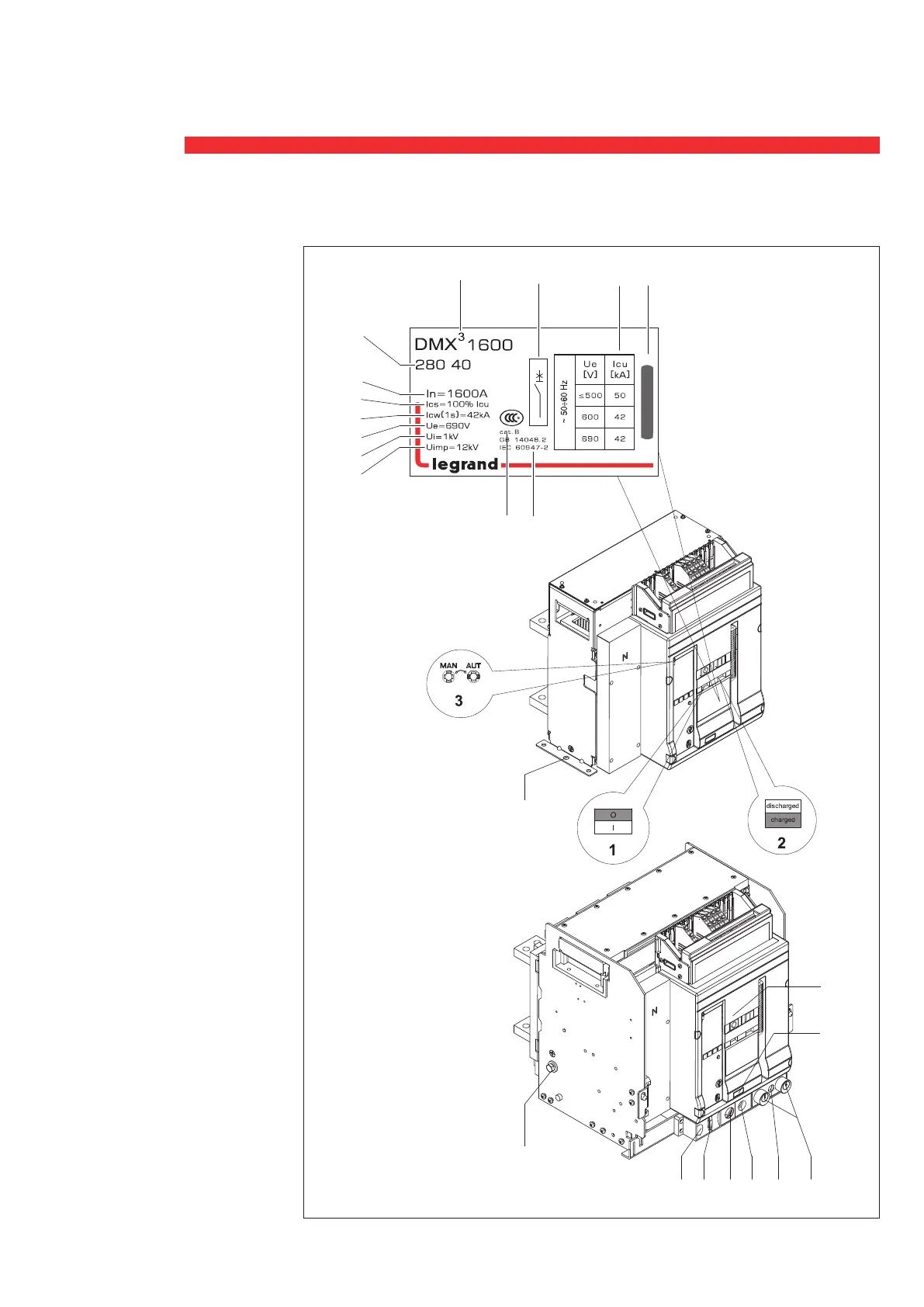

1 Main contacts status indicator
2 Spring status indication
3 Reset button for tripping device
4a Product reference
4b Product type
4c Utilization Category
4d Standards compliance
4e Rated service short-circuit breaking
capacity
4f Rated short-time withstand
current
4g Rated current
4h Rated operational voltage
4i Rated insulation voltage
4j Rated impulse withstand voltage
4k Coloured label for breaking
capacity
4l Identification symbol of the device
4m Rated ultimate short-circuit
breaking capacity according to the
operational voltage Ue
5 Place for key lock in open position
6 Place for operation counter
7 Place to lay draw-out crank
8 Pad lock in draw-out postion
9 Draw-out position indication:
inserted/test/draw-out position
10 Draw-out cranck insertion
11 Place for inserted/test/draw-out lock
button
12 Place for keylock in draw-out
postion
13 Earth connection
4. Identification
4j
4i
4h
4g
4f
4e
4a
4b
4k4m
4d
4l
4c
5
6
7
8 9
10
11 12
13
13
Fixed version
Draw-out version
