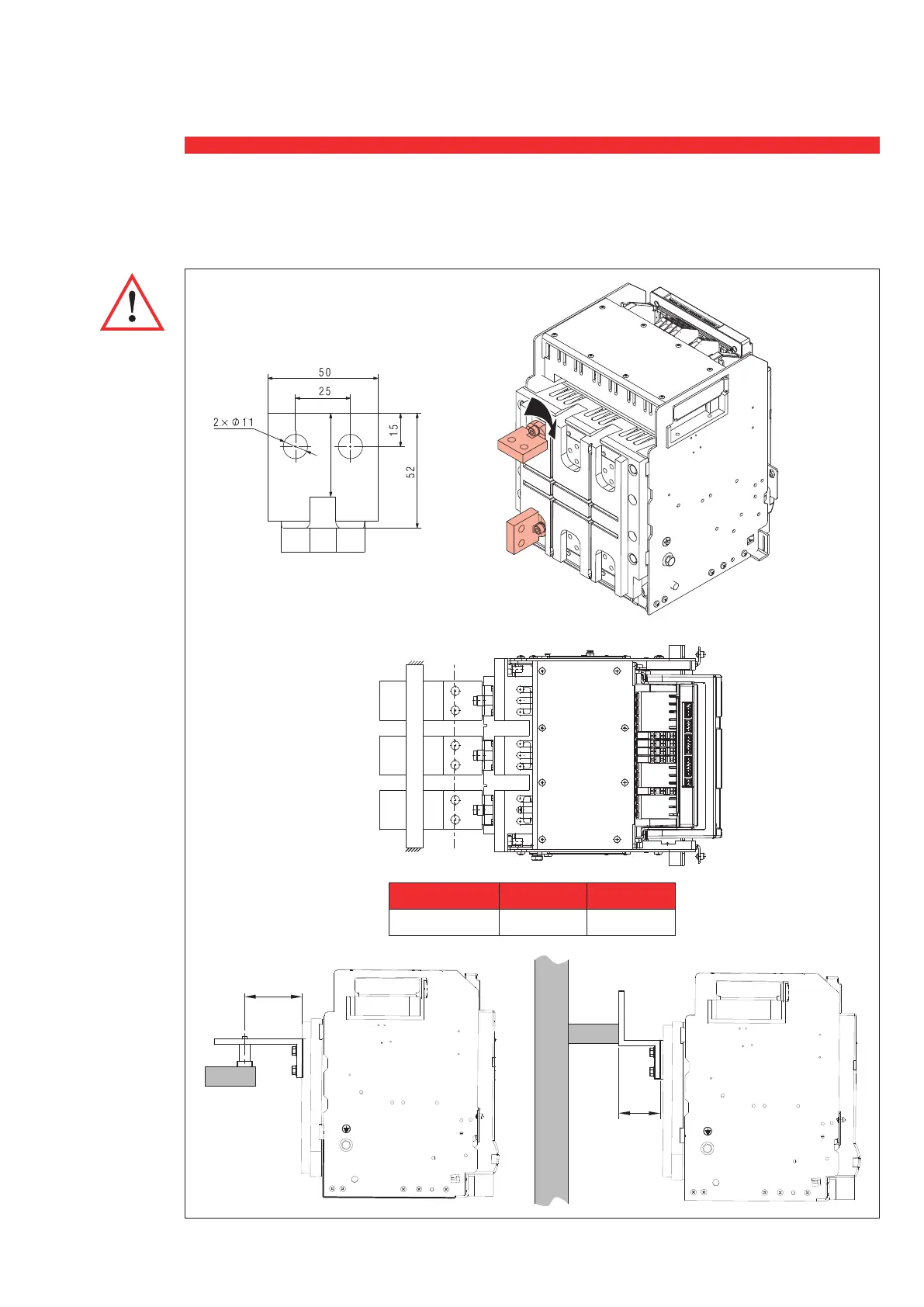

14. Possible connections for draw-out version
Termination
support must
be made
of isolating
material and
sized according
to the bars in
order to avoid
performances
during
short circuit
conditions.
Installation of Terminal Adaptor available as an accessory.
"X"max (mm)
"X"max
(mm)
16 Nm
4 6
Icc (kA) ≤ 42 ≤ 50
“X” max (mm) 350 300
